REMOVAL

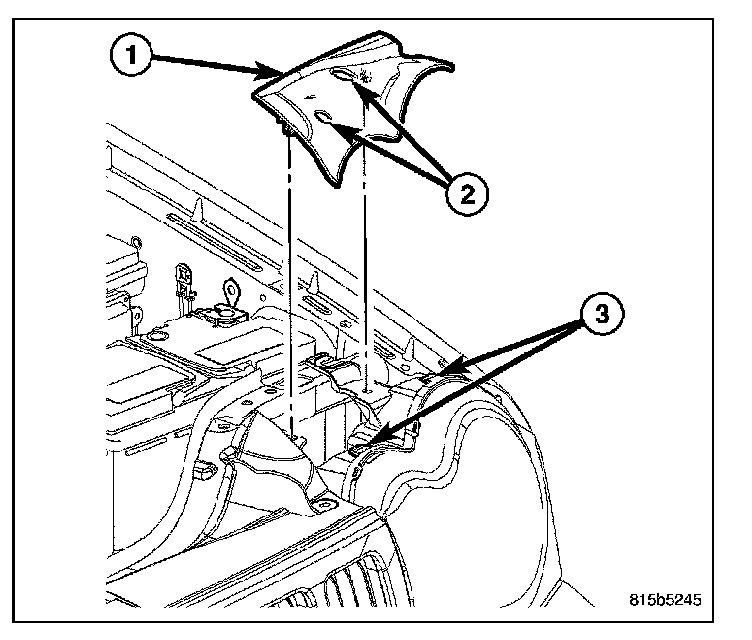

1. Insert a finger into each of the two clearance holes (2) in the front lamp unit cover (1) and pull upward to unsnap the rear edge of the cover from the two upper lamp mounting brackets.
2. Slide the cover rearward to disengage the front edge from beneath the two tabs (3) on the top near the front of the lamp housing.

INSTALLATION

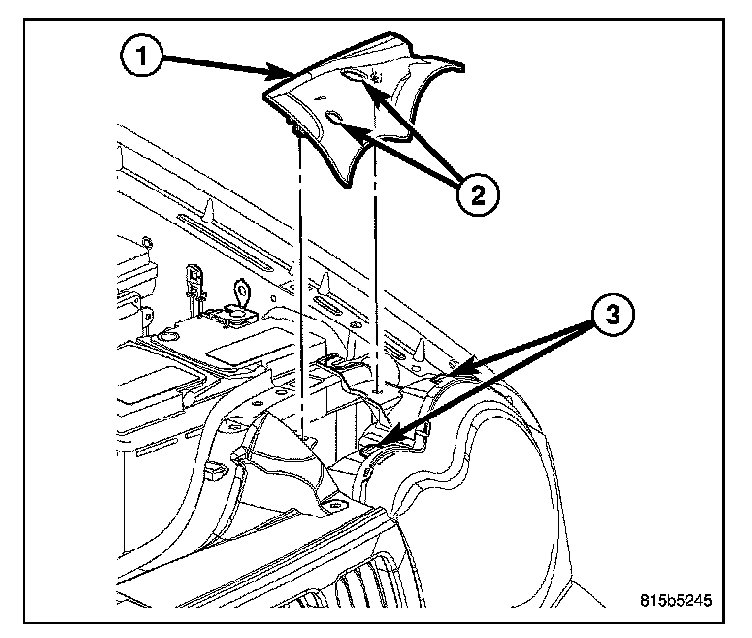

1. Slide the forward edge of the front lamp unit cover (1) under the two tabs (3) on the top near the front of the lamp housing.
2. Using hand pressure, press downward over each of the two snap features near the inboard side and the rear edge of the cover until they snap into the two upper lamp mounting brackets.
