Entering Display DTC Mode - MTC System

To enter the MTC system's Display DTC Mode, perform the following:

NOTE: An active DTC 33 will prevent the control from entering diagnostic mode and performing certain diagnostic functions. It will also prevent proper A/C mode switch and status indicator function. If this occurs, refer to A/C HEATER CONTROL WILL NOT ENTER DIAGNOSTIC MODE (MTC) for the diagnostic test procedure. A/C Heater Control Will Not Enter Diagnostic Mode (MTC)




1. Turn the ignition to the On position.

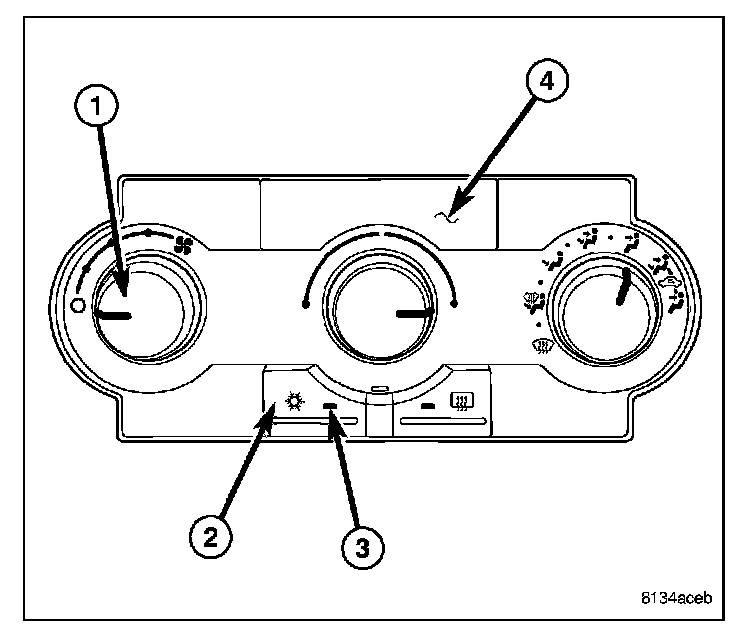

2. Turn the blower motor control (1) to the On position.
3. Press the A/C mode switch (2) down, turn the blower motor control to the Off position, wait until both LEDs illuminate (approximately 5 seconds) and then release the A/C switch. If there are active or stored DTCs to display, the A/C status indicator (3) will begin to flash. If there are no active or stored DTCs to display, the LEDs on the A/Cheater control (4) will turn off and the system will automatically exit the mode of operation.
4. To manually exit Display DTC Mode, either turn the ignition off or disconnect the negative battery cable from the battery.
