MTC System

To clear DTCs stored in the A/C - heater control of the MTC system, perform the following:






NOTE:
- An active DTC 33 will prevent the control from entering diagnostic mode and performing certain diagnostic functions. It will also prevent proper A/C mode switch and status indicator function. If this occurs, refer to A/C HEATER CONTROL WILL NOT ENTER DIAGNOSTIC MODE (MTC) for the diagnostic test procedure. A/C Heater Control Will Not Enter Diagnostic Mode (MTC)
- An active DTC 34 will prevent the control from performing certain diagnostic functions and it will prevent proper EBL mode switch and status indicator function. If active, diagnose and repair DTC 34 before proceeding. Refer to HVAC Electrical Diagnostics for the diagnostic test procedure.

1. Turn the ignition to the On position.

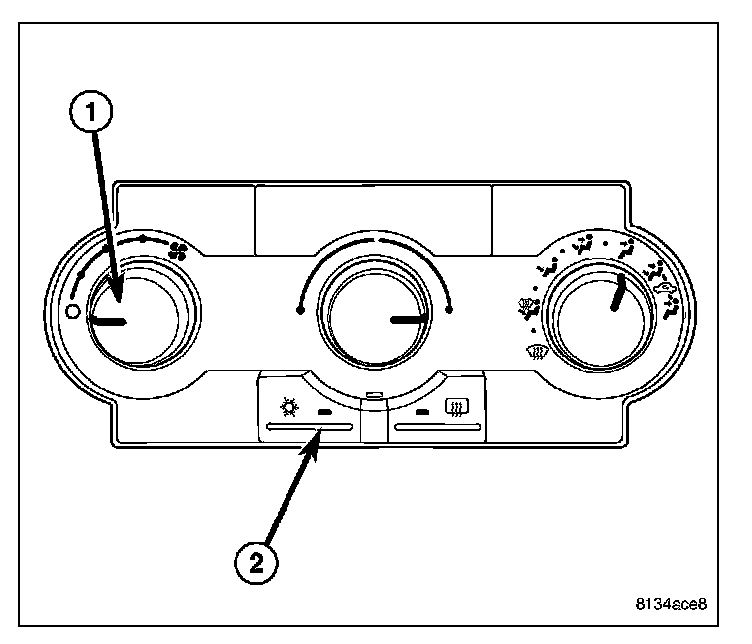

2. Turn the blower motor control (1) to the On position.
3. Press the A/C mode switch (2) down, turn the blower motor control to the Off position, wait until both LEDs illuminate (approximately 5 seconds) and then release the A/C mode switch.
4. When the A/C status indicator begins flashing DTCs, set the Mode switch to the floor position, simultaneously press the A/C mode switch and the EBL mode switch down until both LEDs start flashing (approximately 5 seconds) and then release the mode switches. Stored DTCs will clear from memory in approximately two seconds.
