Automatic Transmission/Transaxle

Park/Neutral:

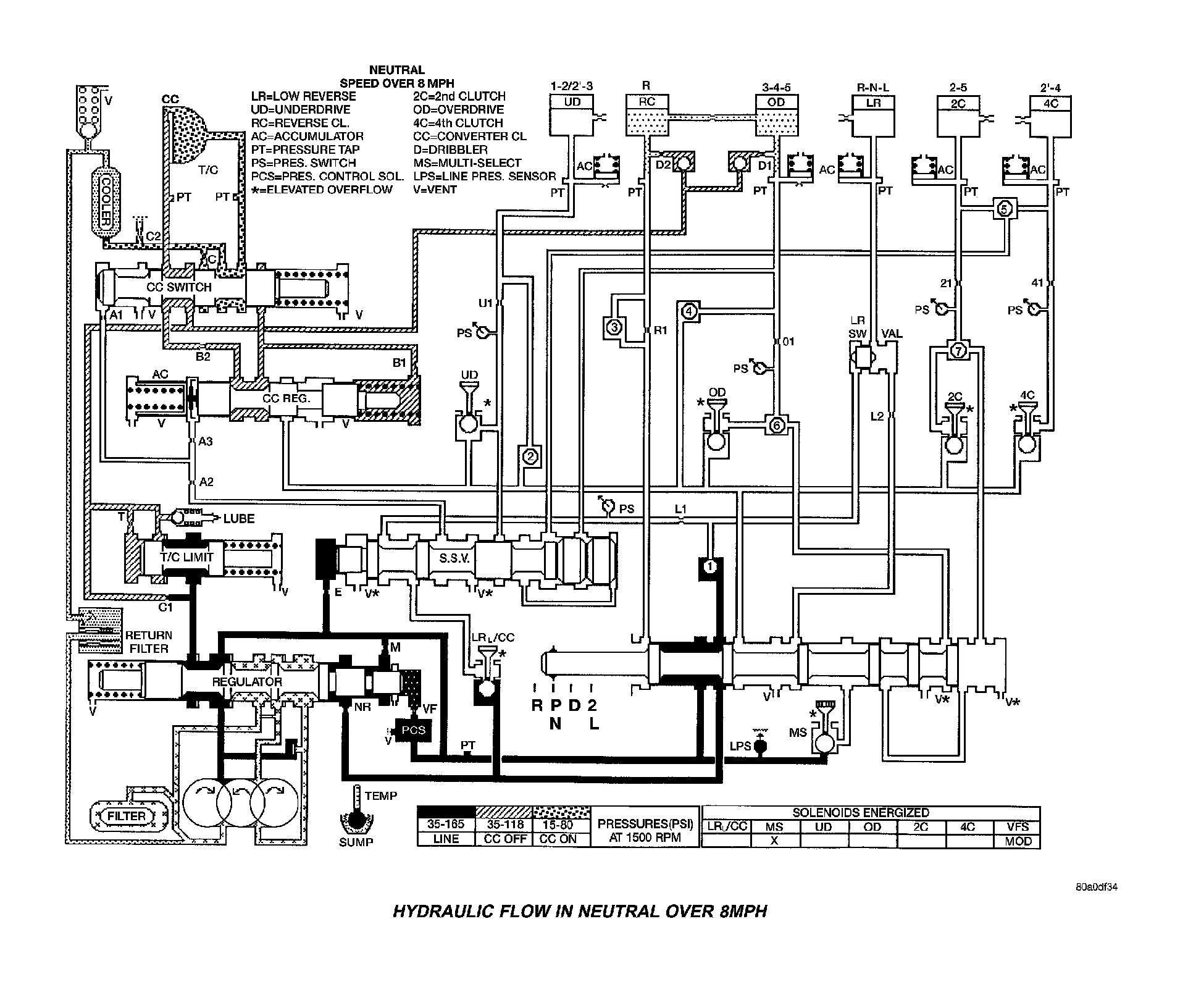

Neutral Over 8mph:

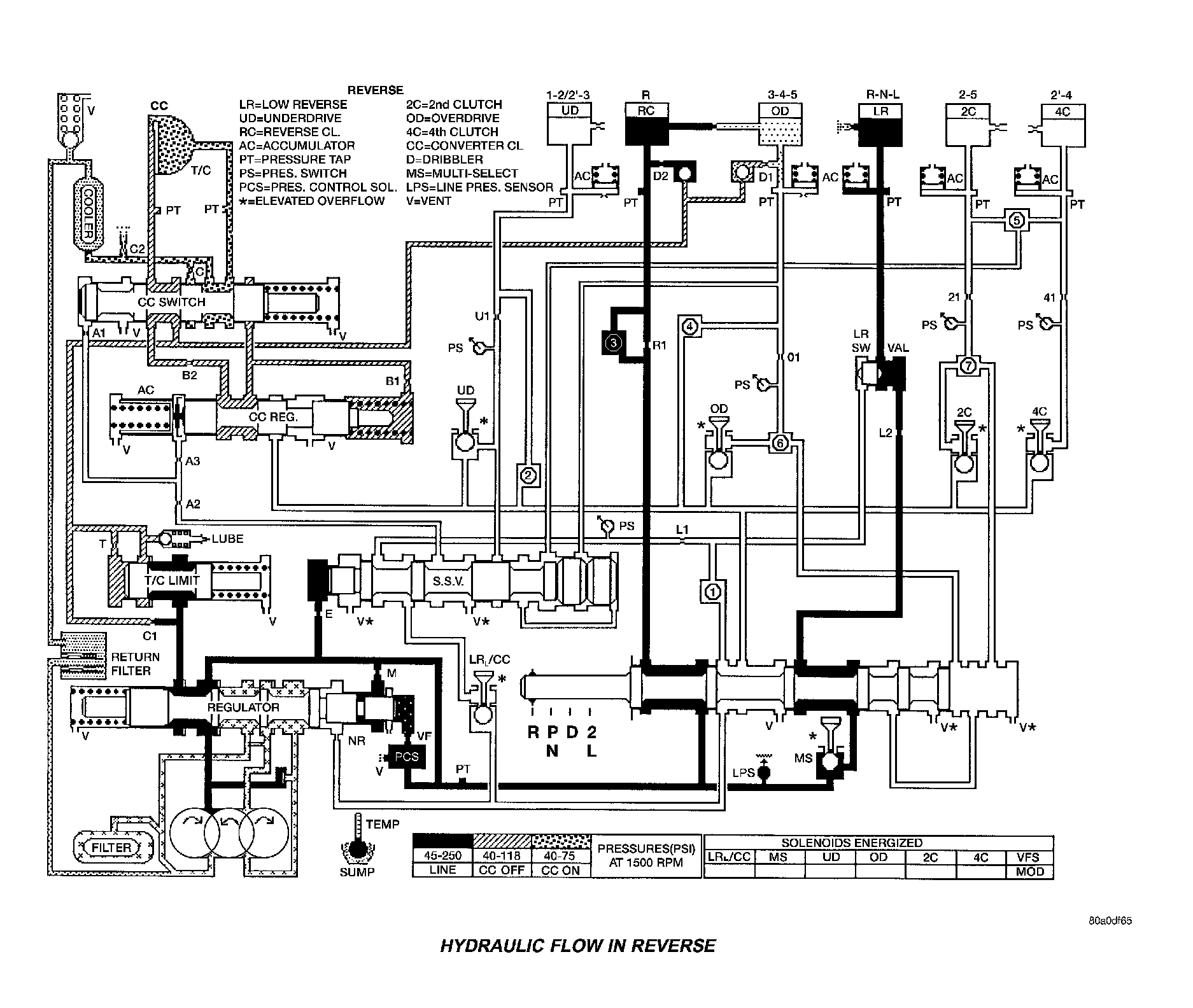

Reverse:

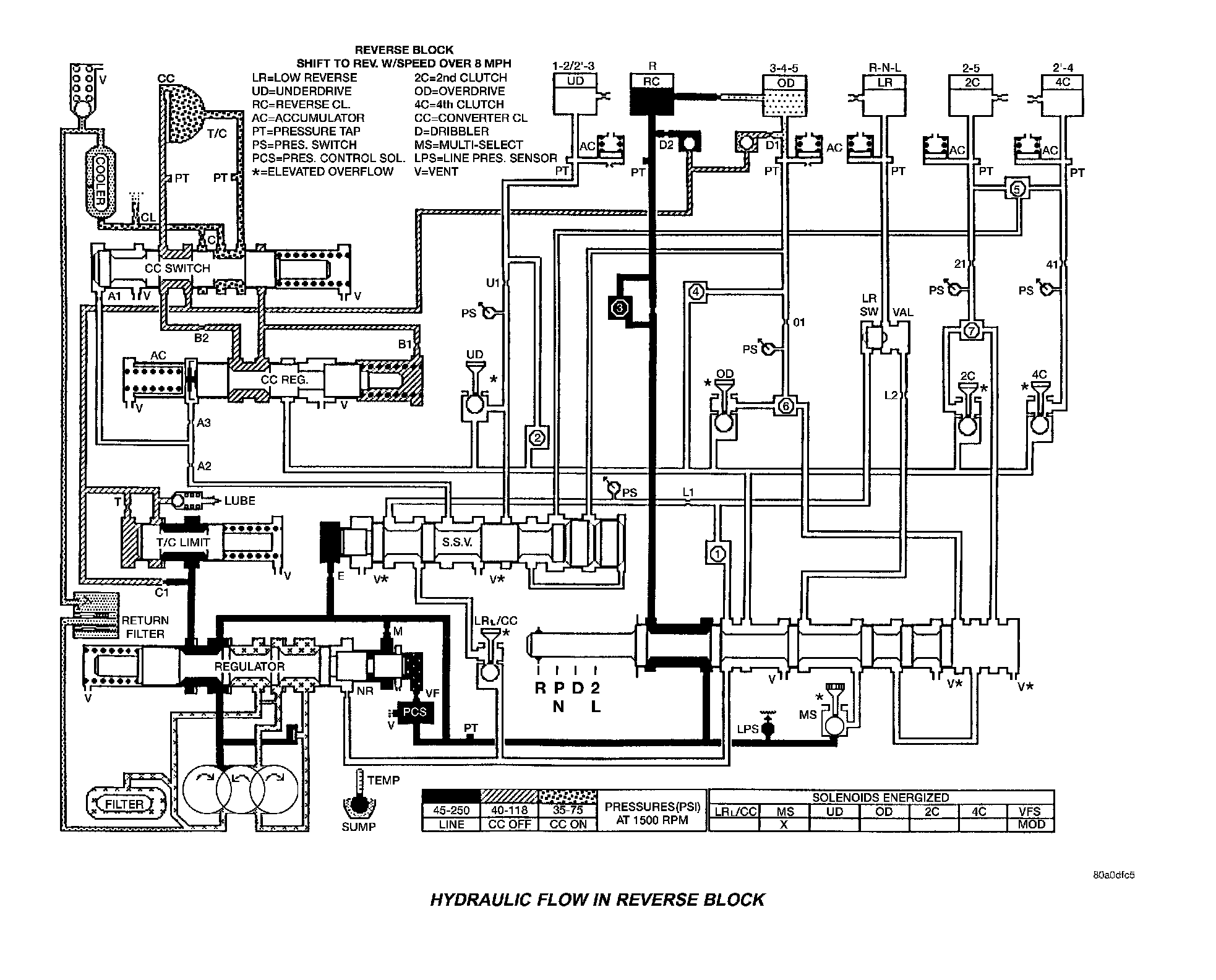

Reverse Block:

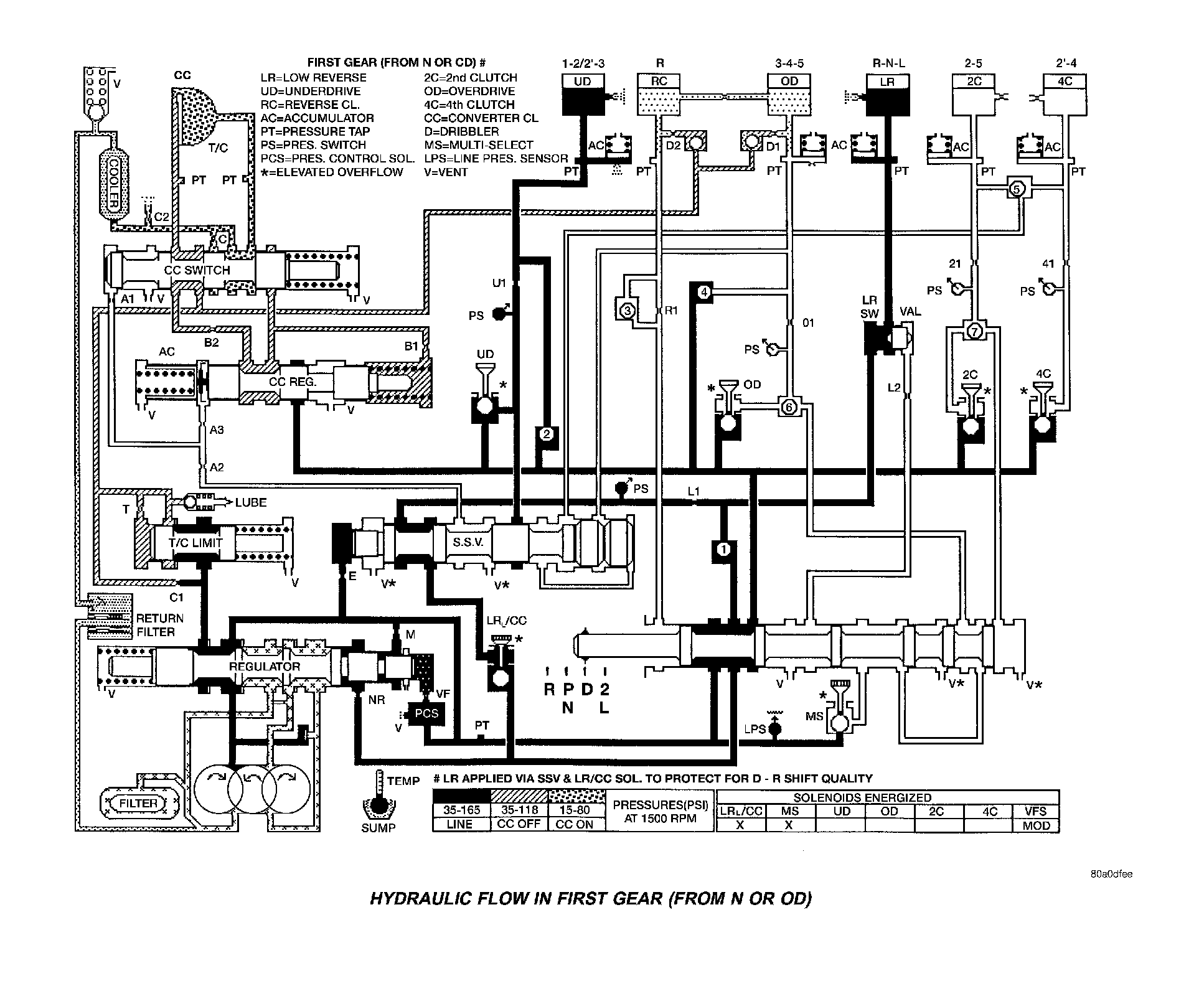

First Gear (From N Or OD):

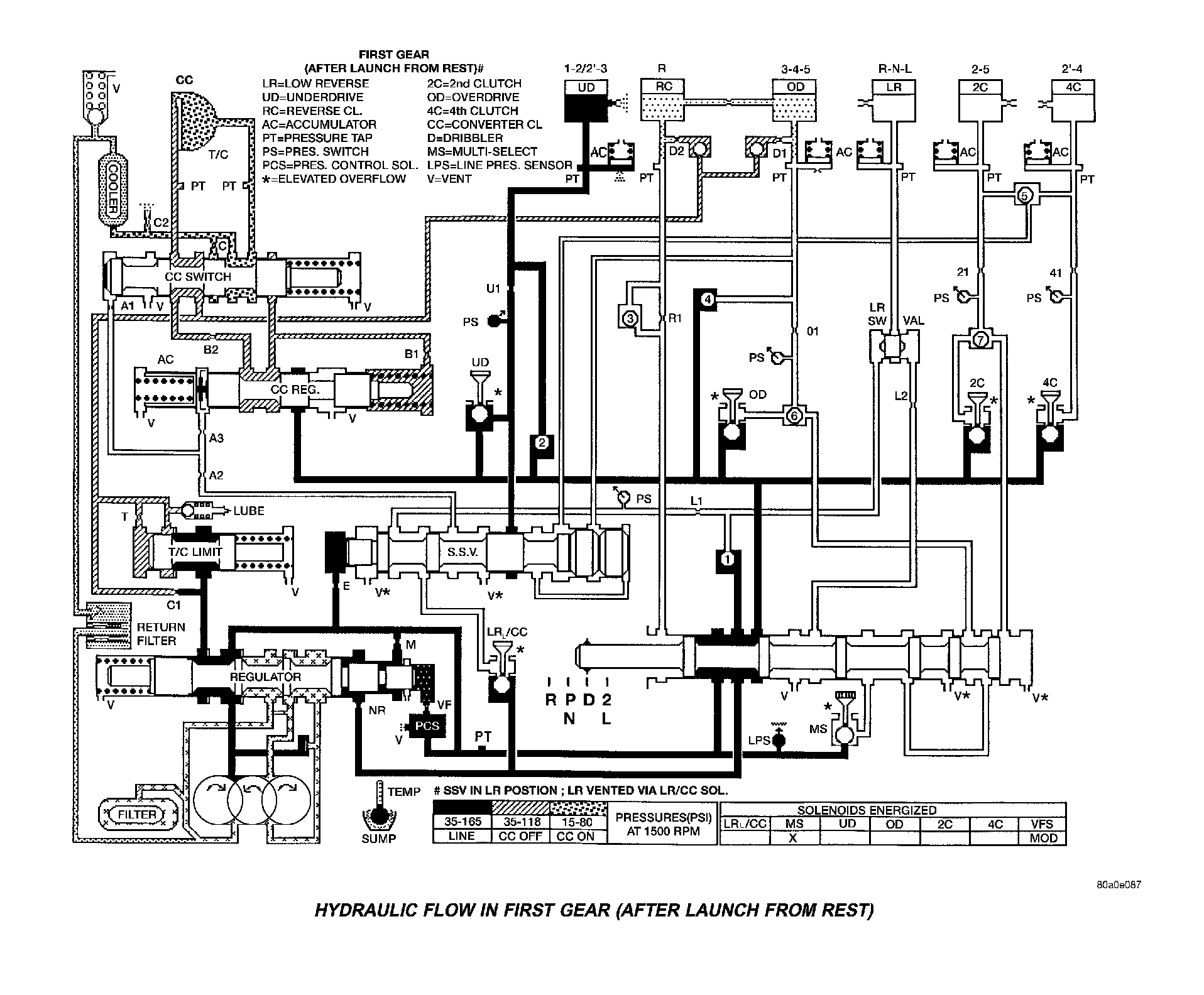

First Gear (After Launch From Rest):

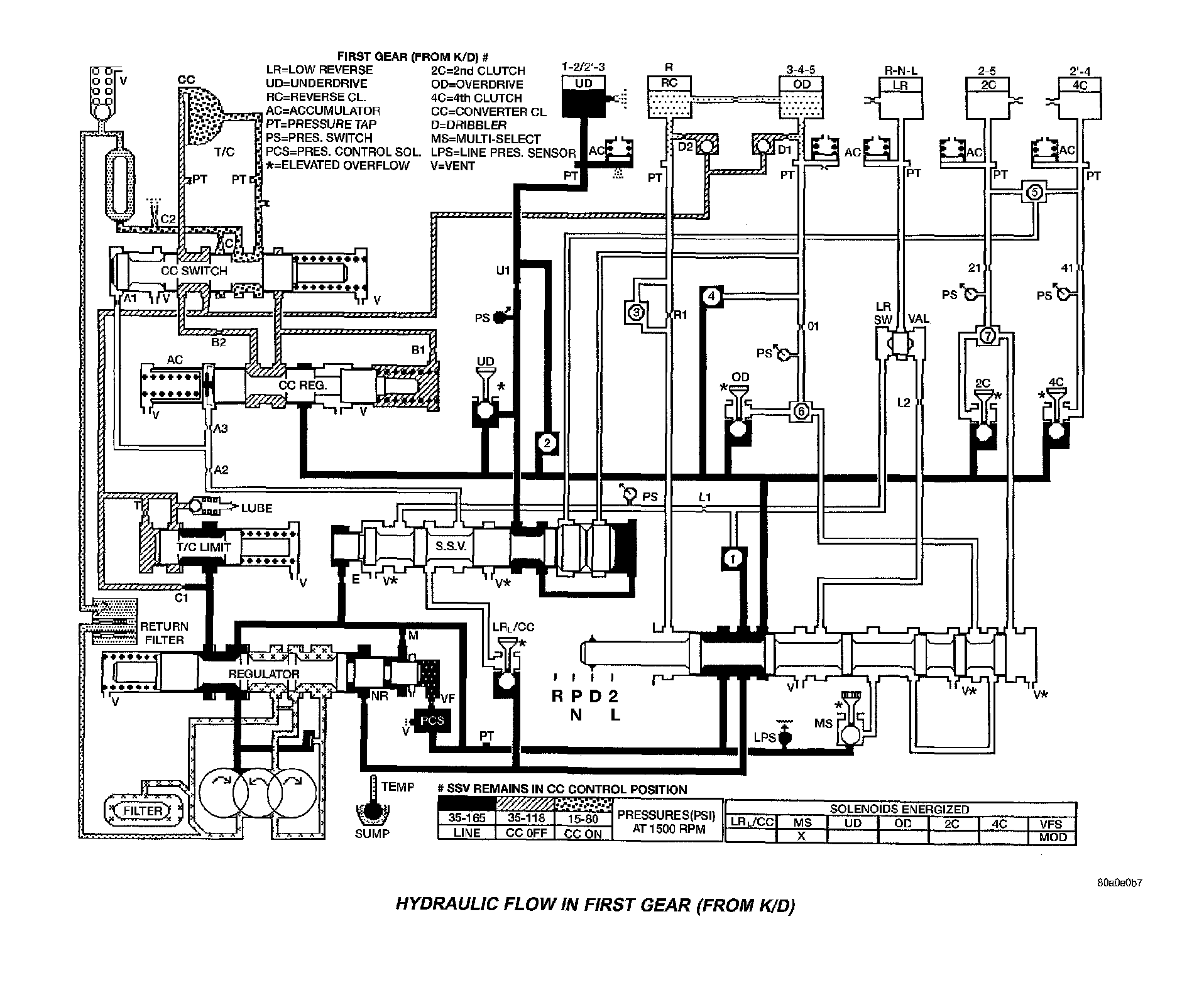

First Gear (From K/D):

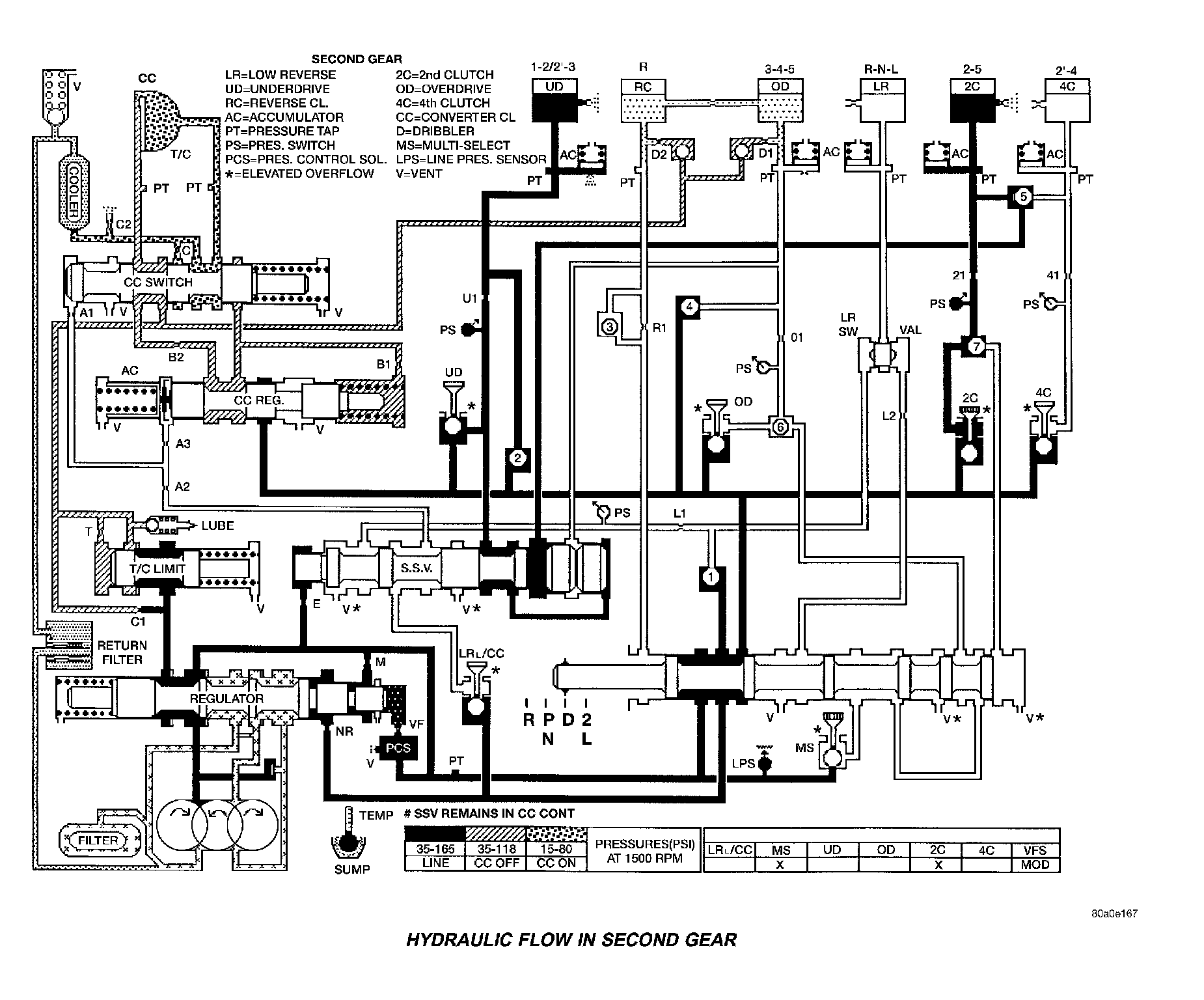

Second Gear:

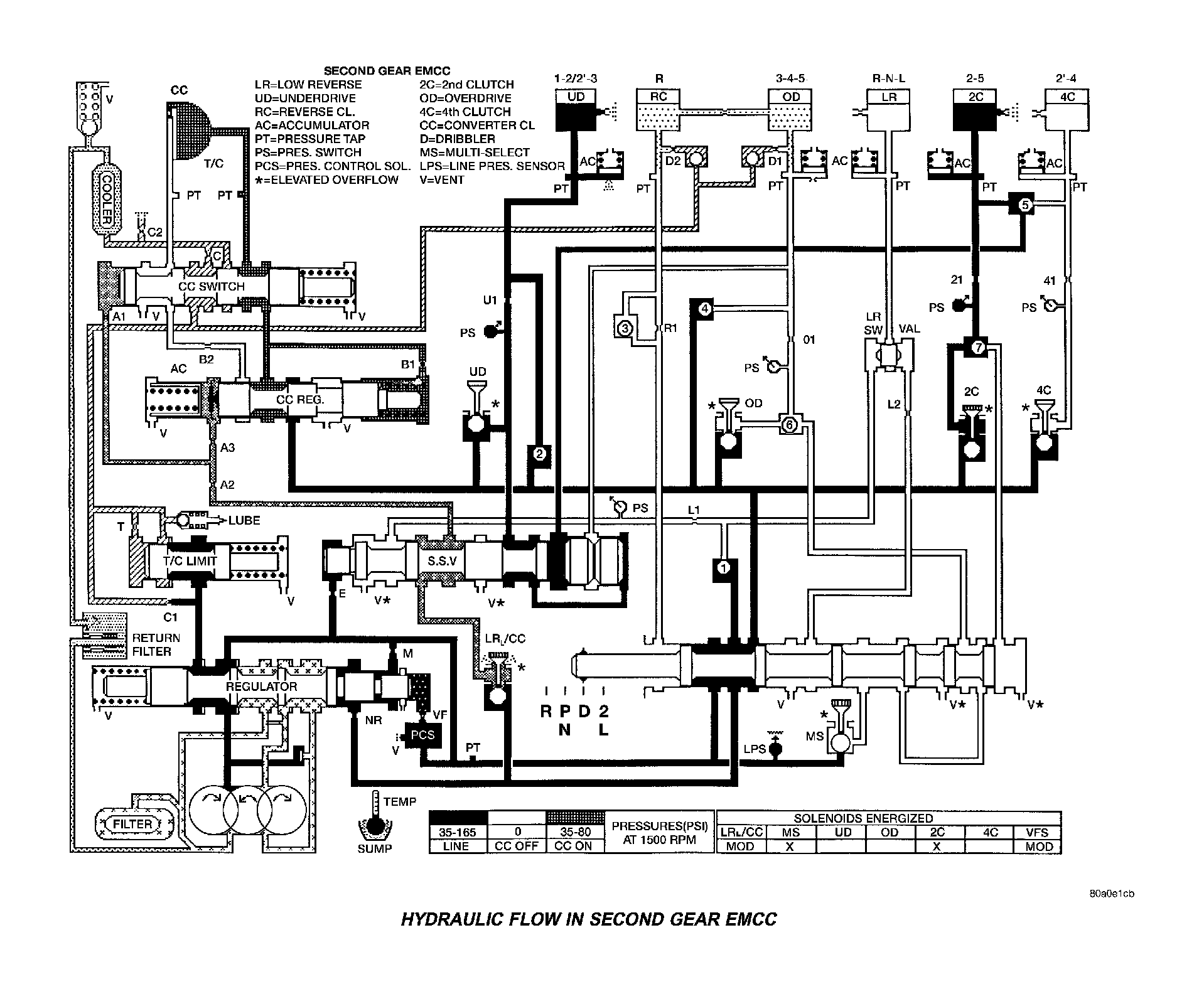

Second Gear EMCC:

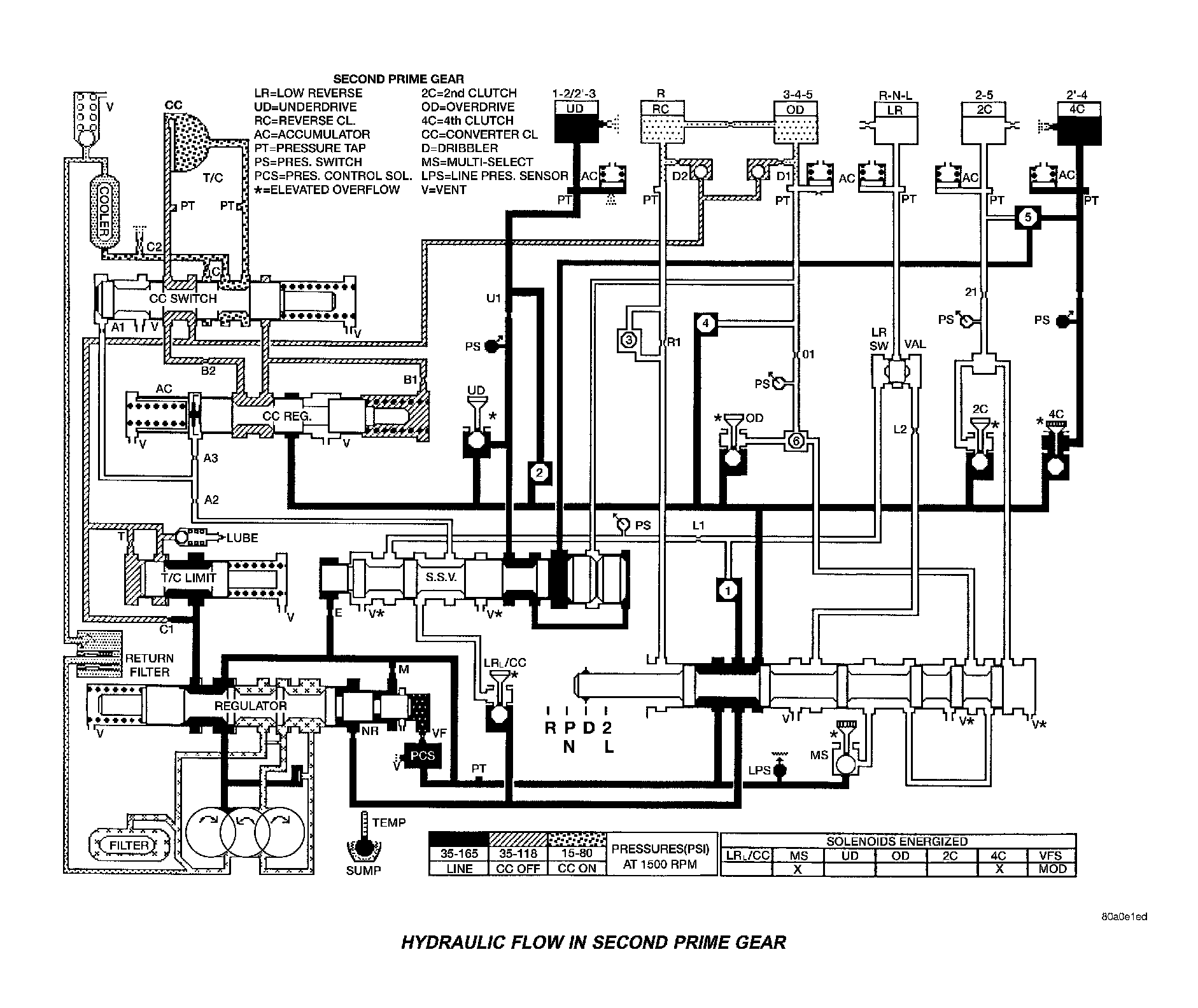

Second Prime Gear:

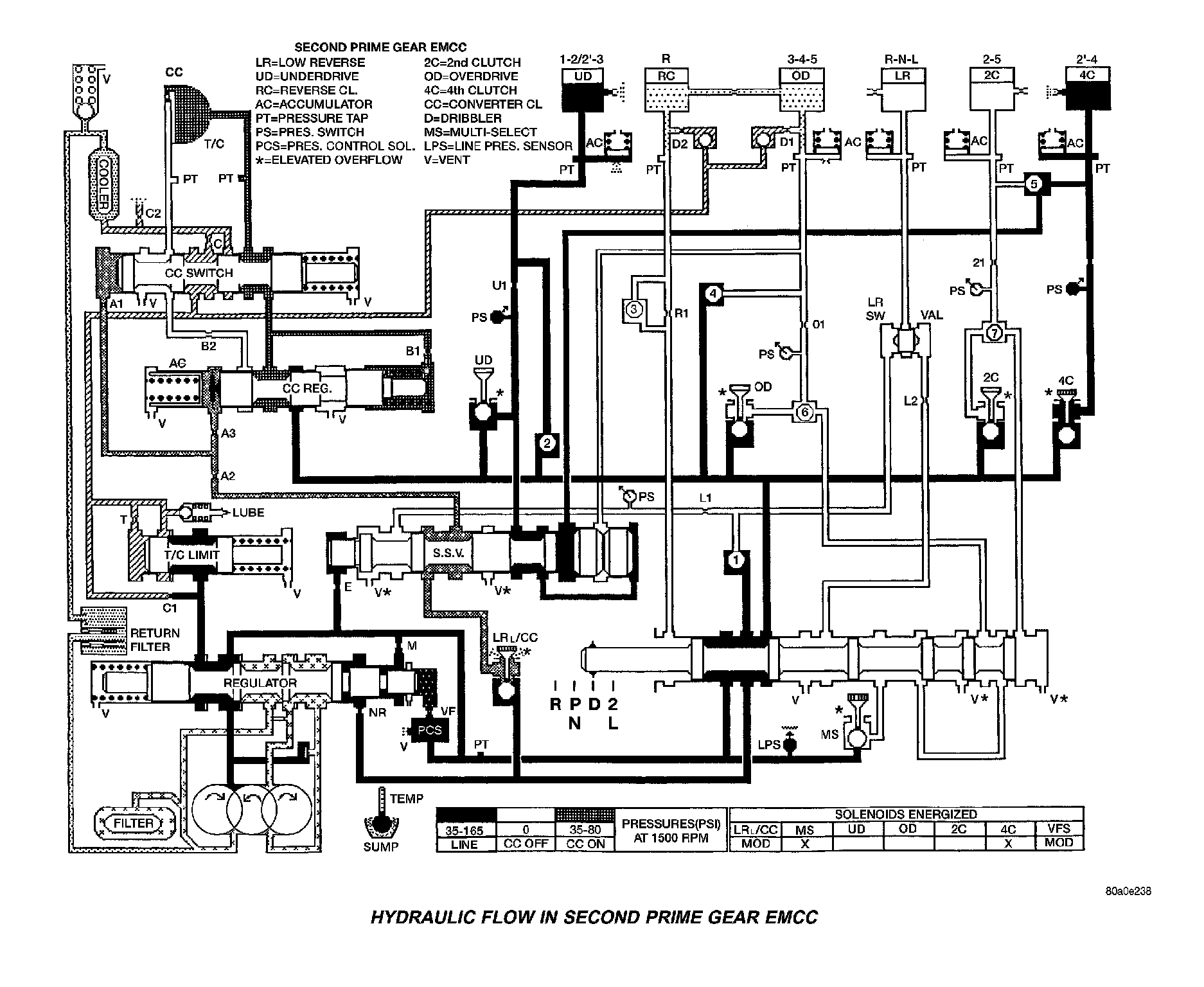

Second Prime Gear EMCC:

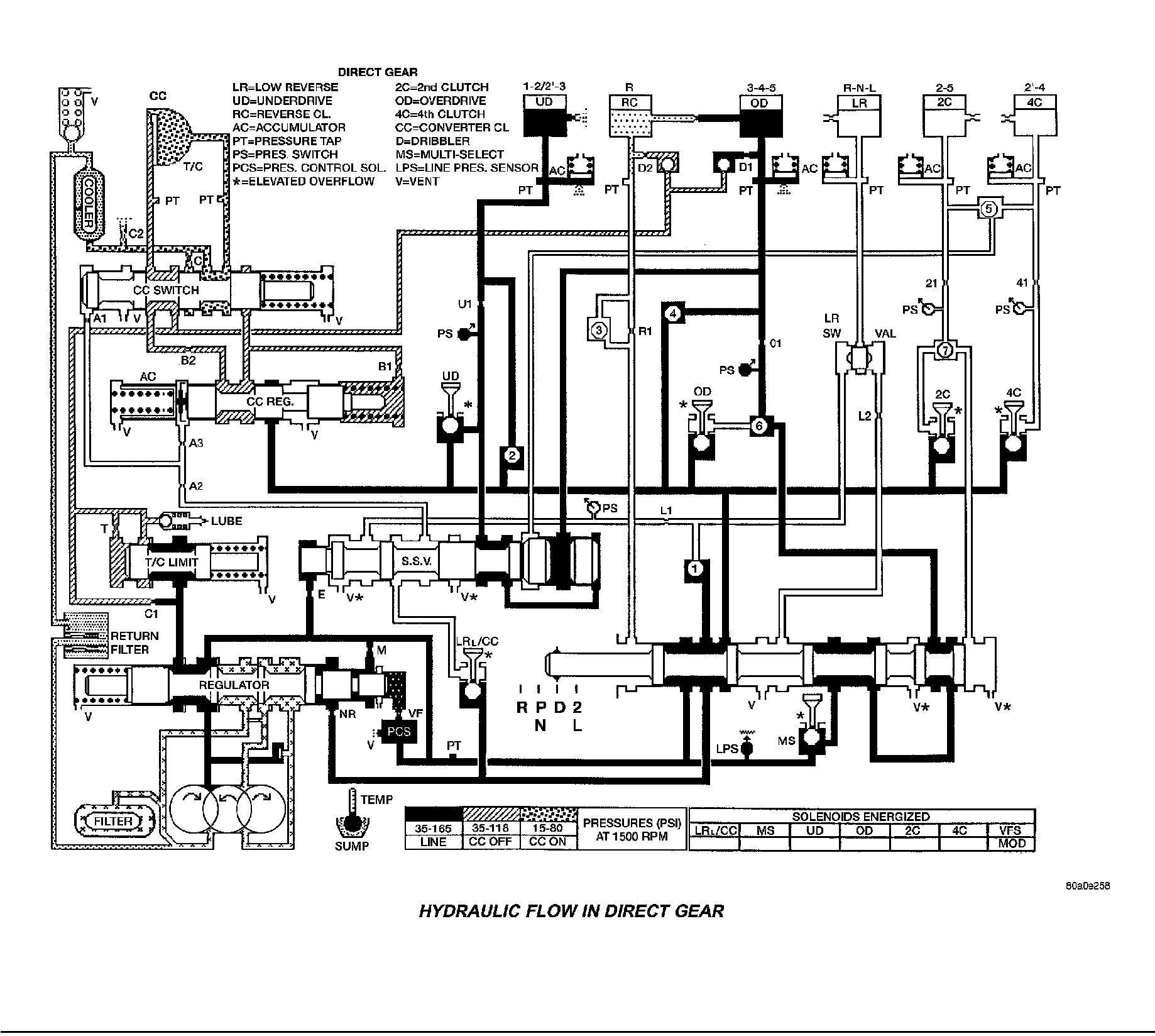

Direct Gear:

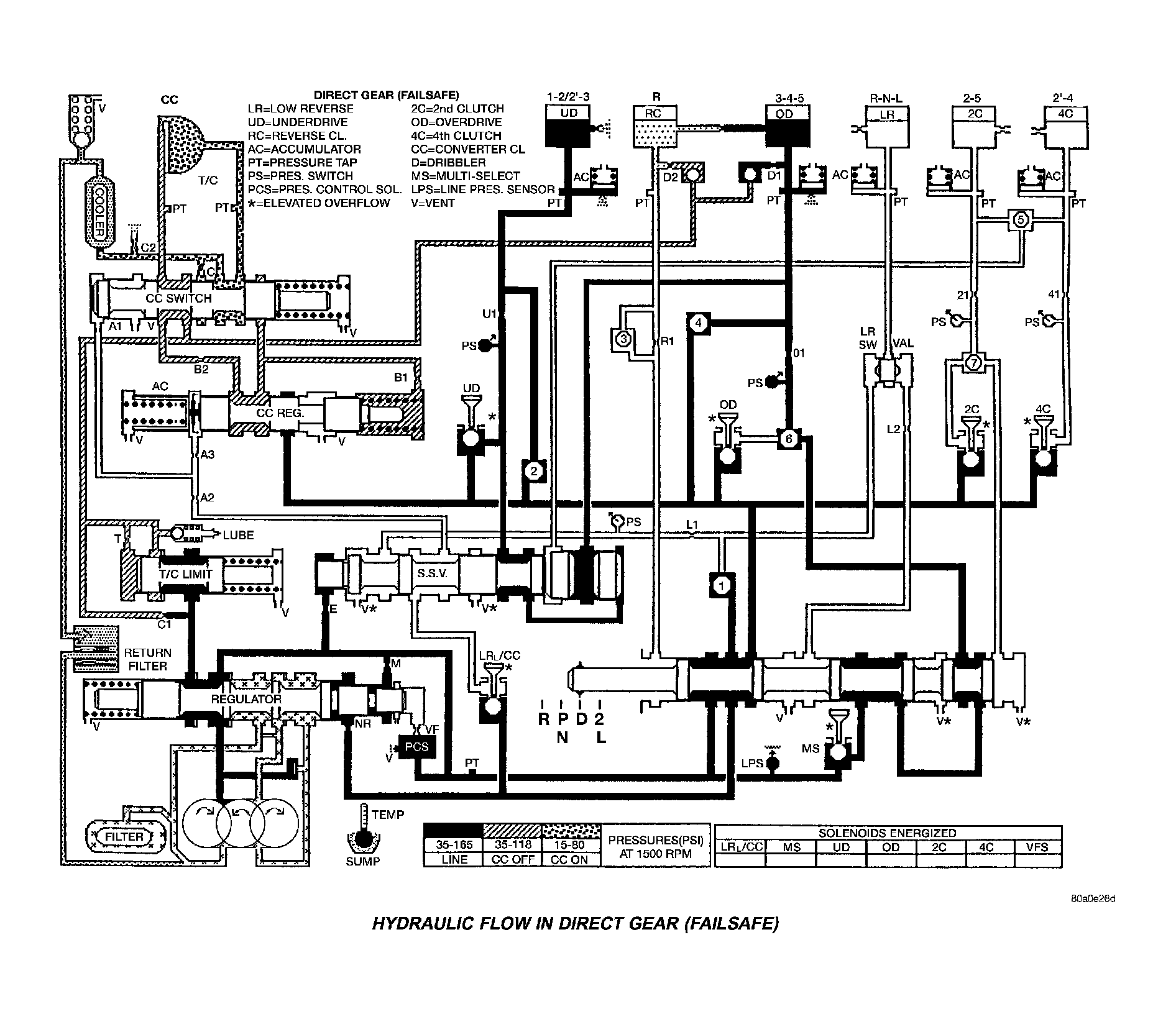

Direct Gear (Fail-safe):

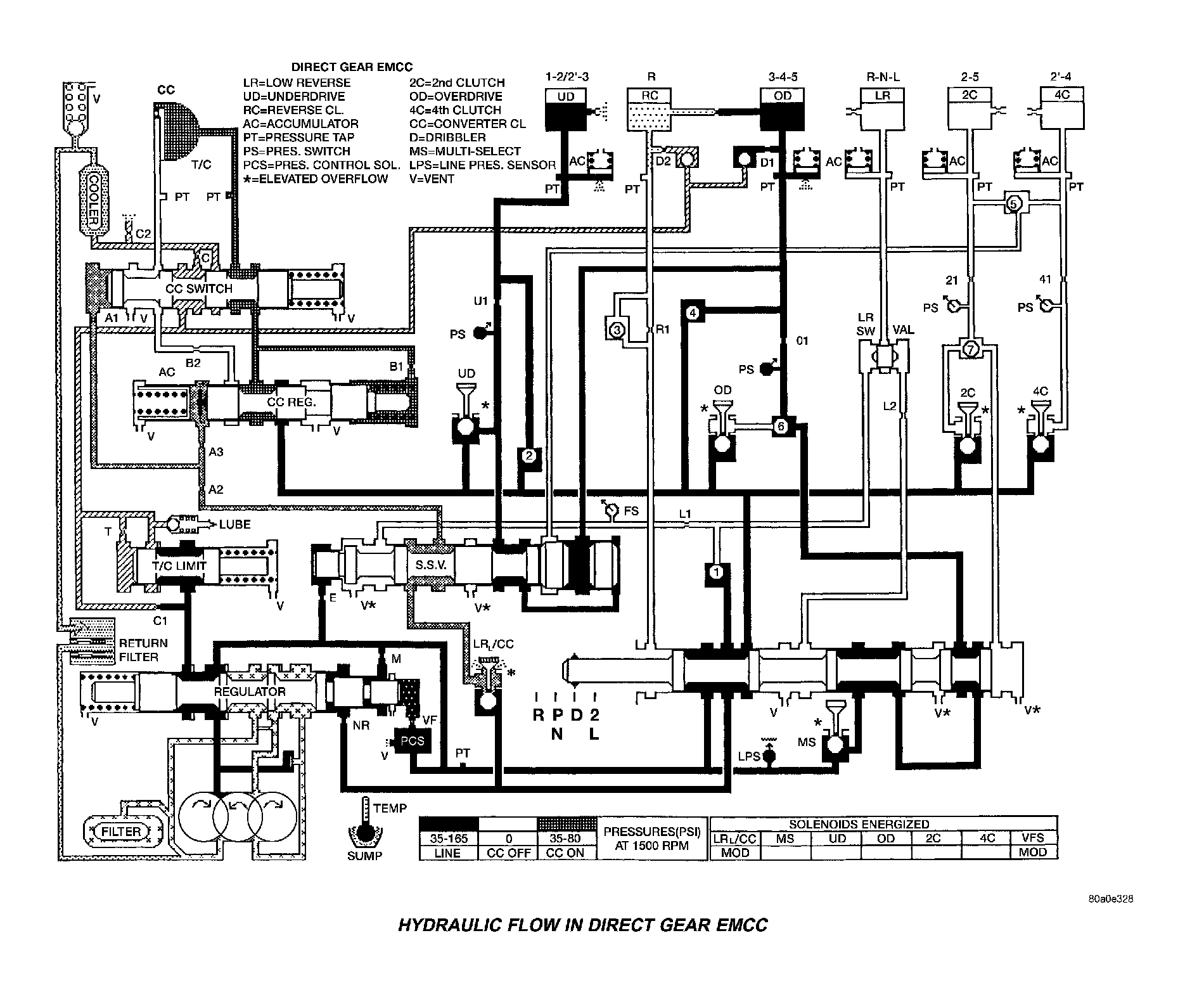

Direct Gear EMCC:

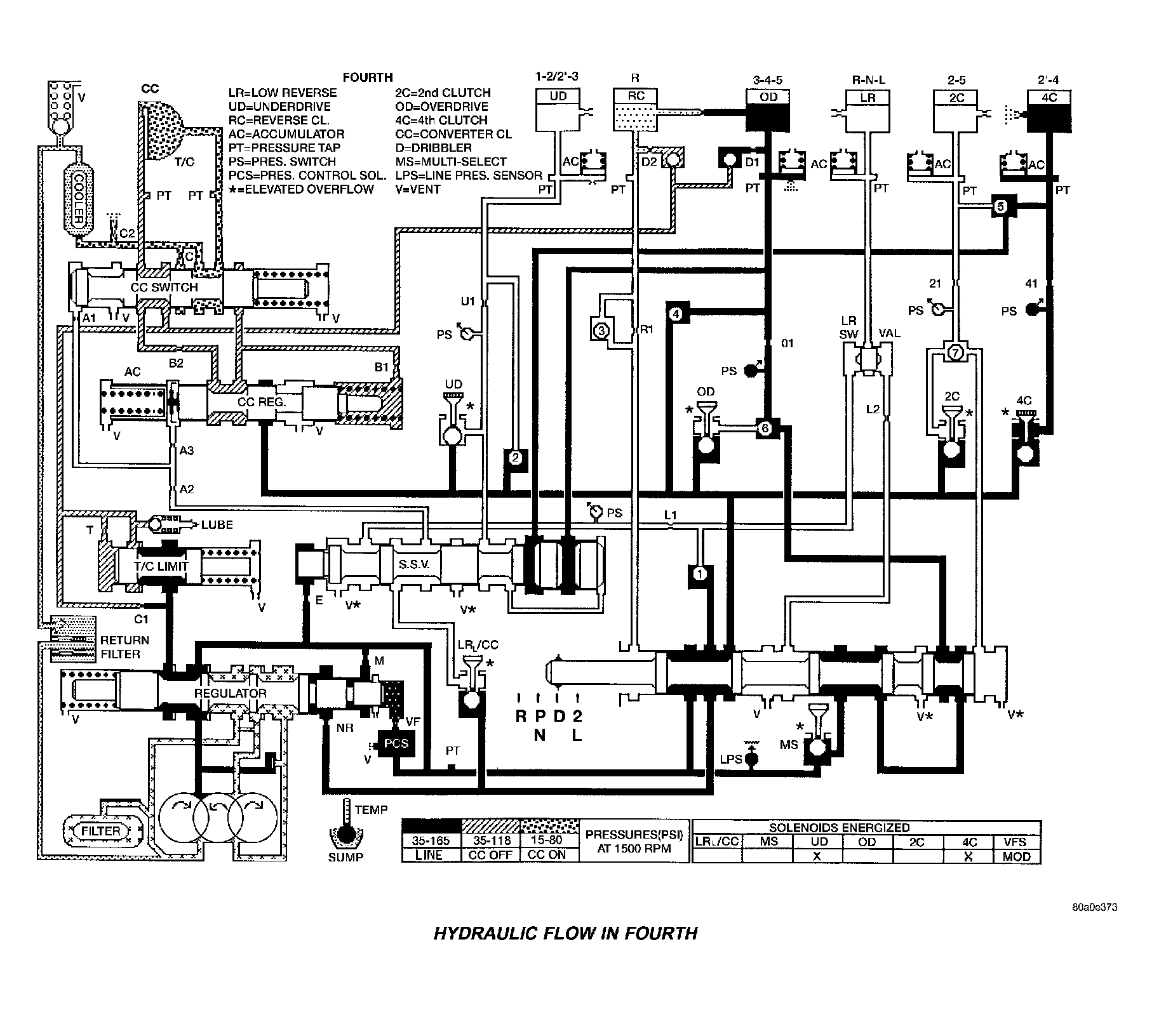

Fourth:

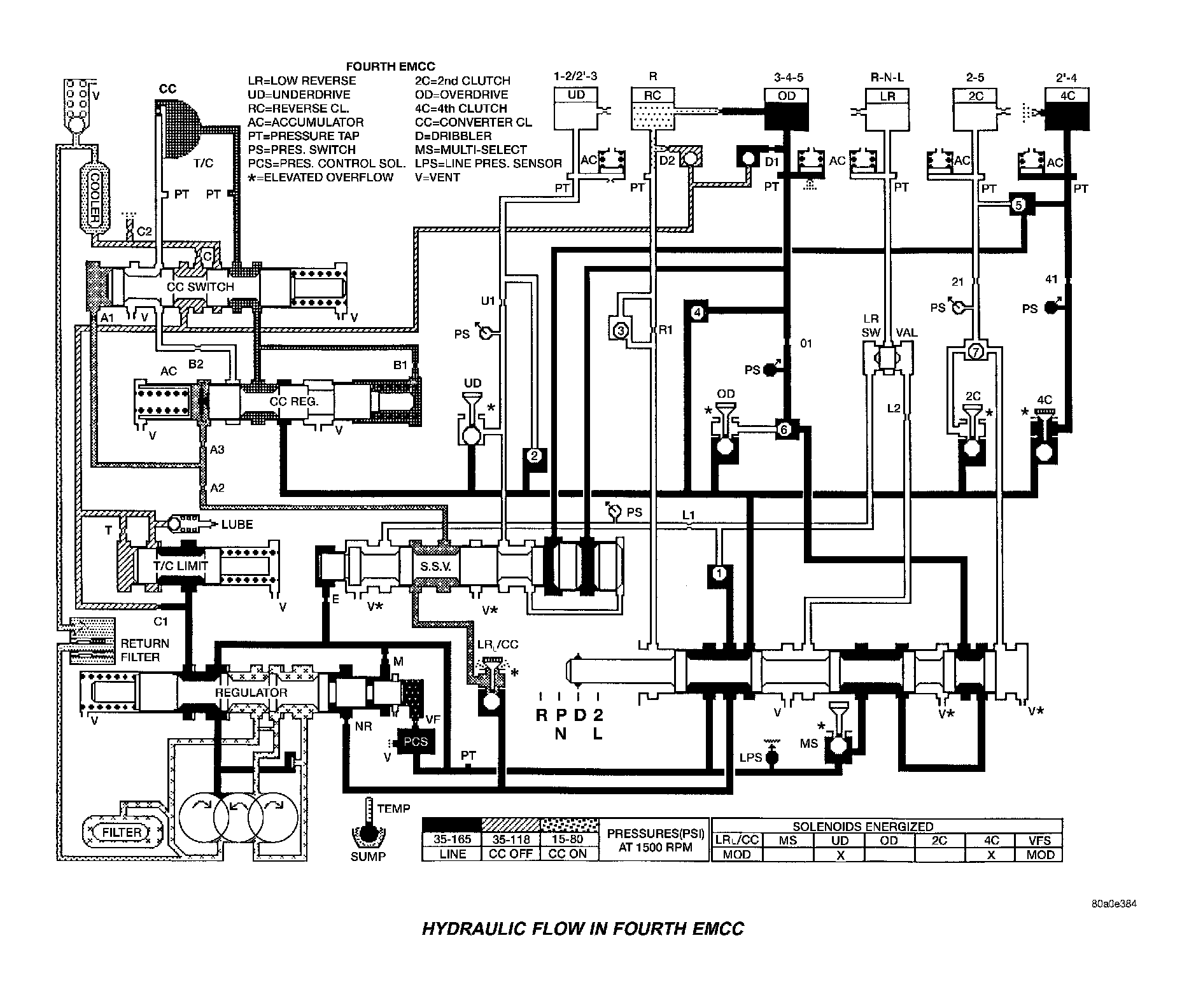

Fourth EMCC:

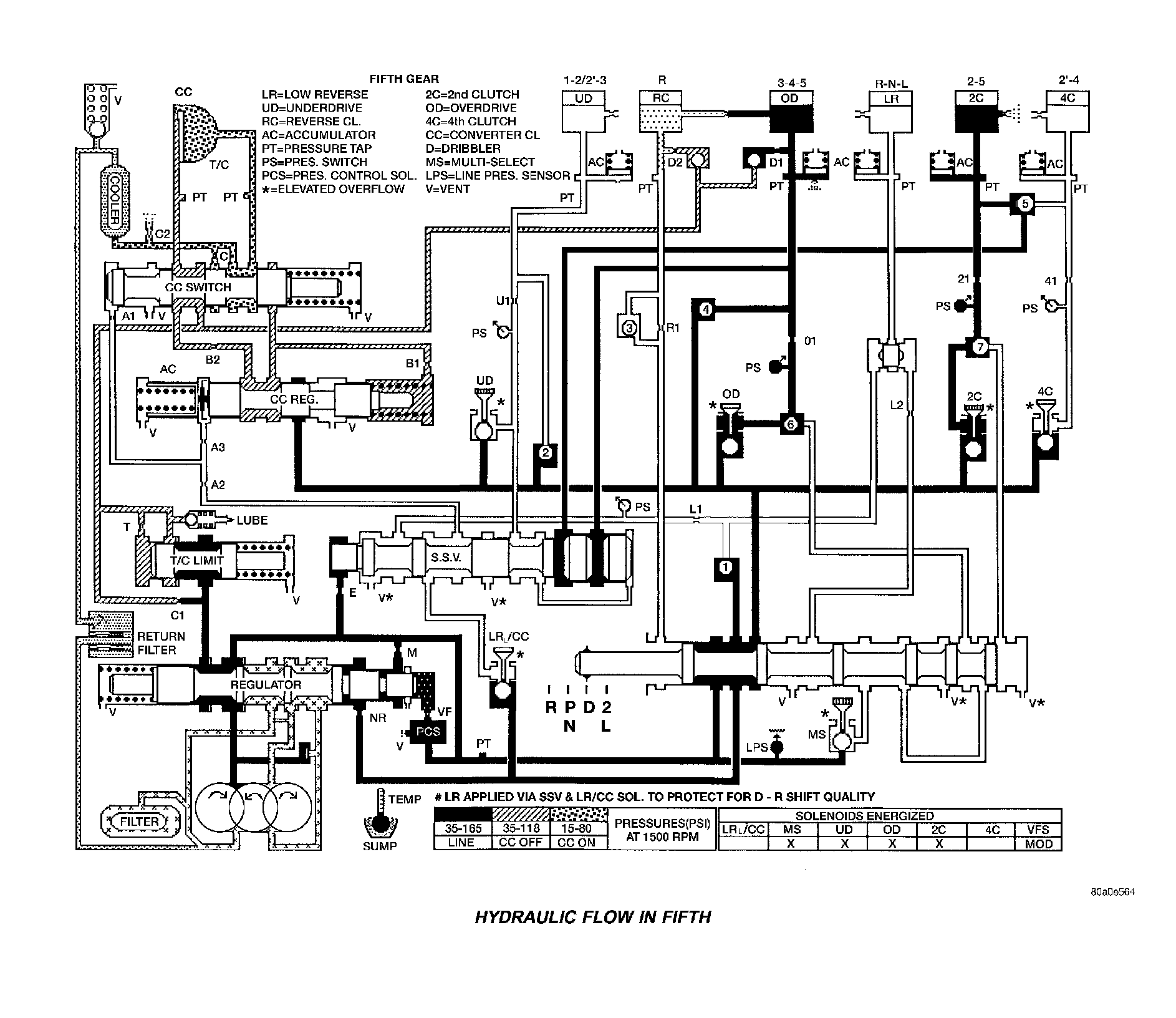

Fifth:

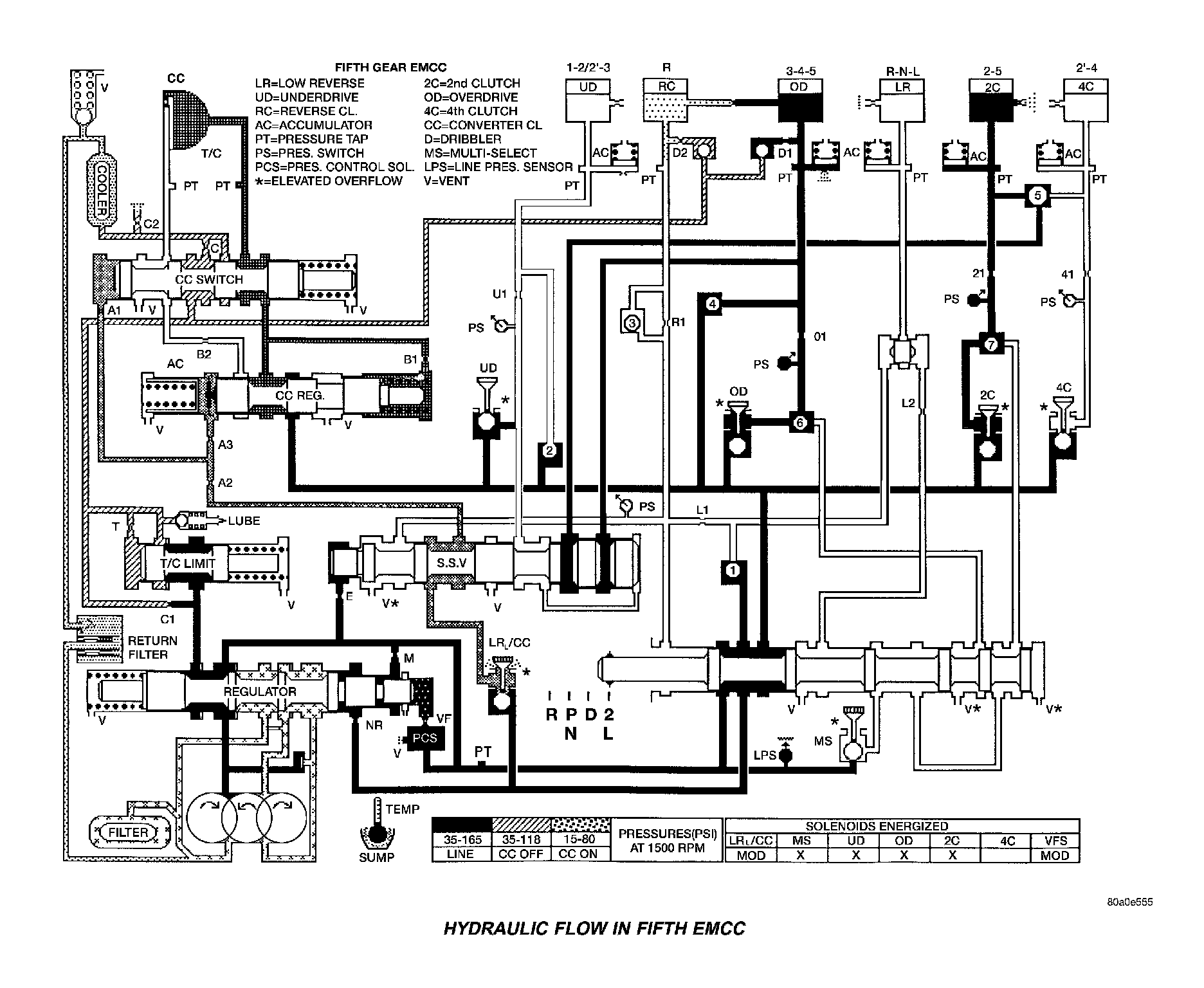

Fifth EMCC:

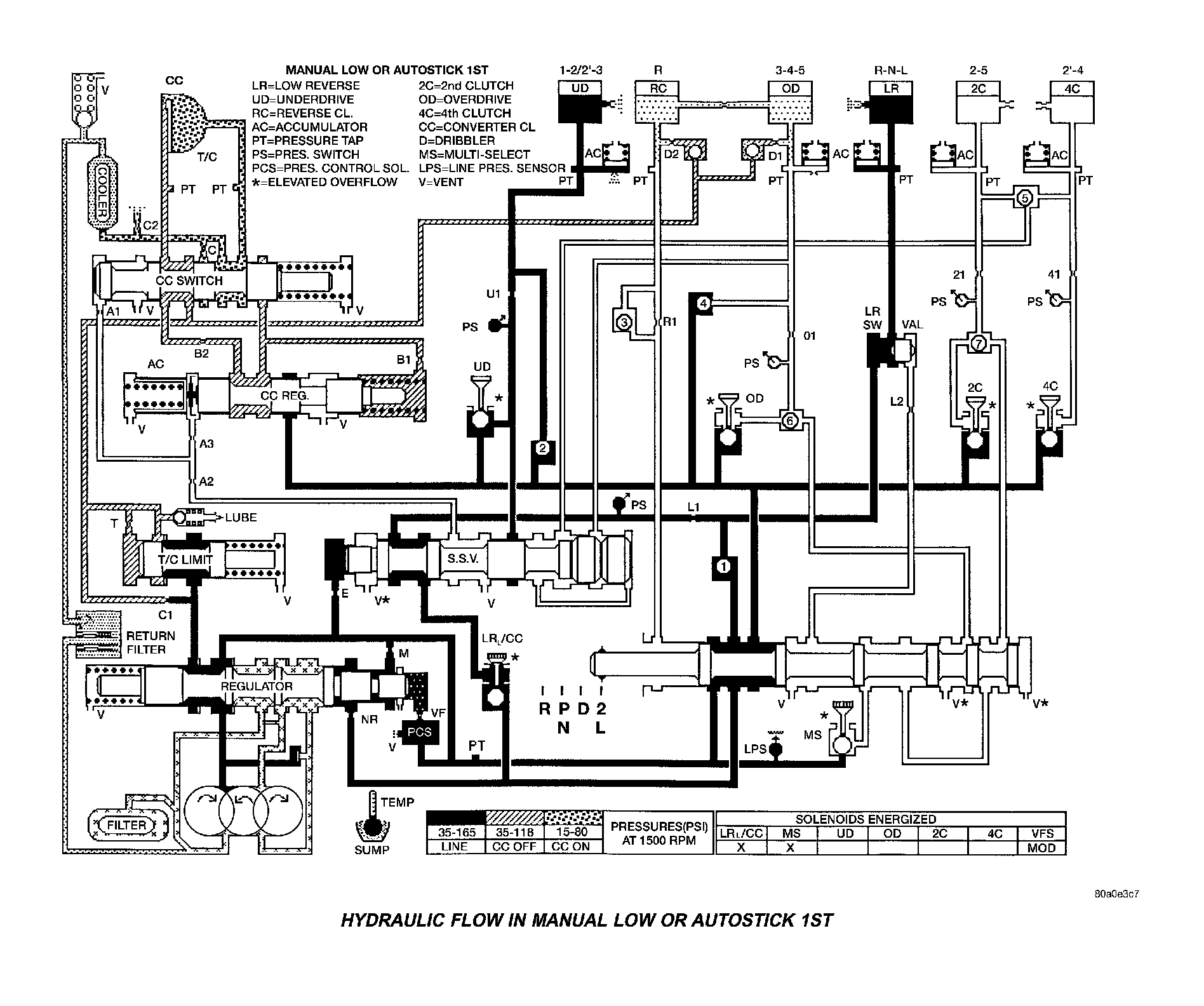

Manual Low Or Autostick 1st:

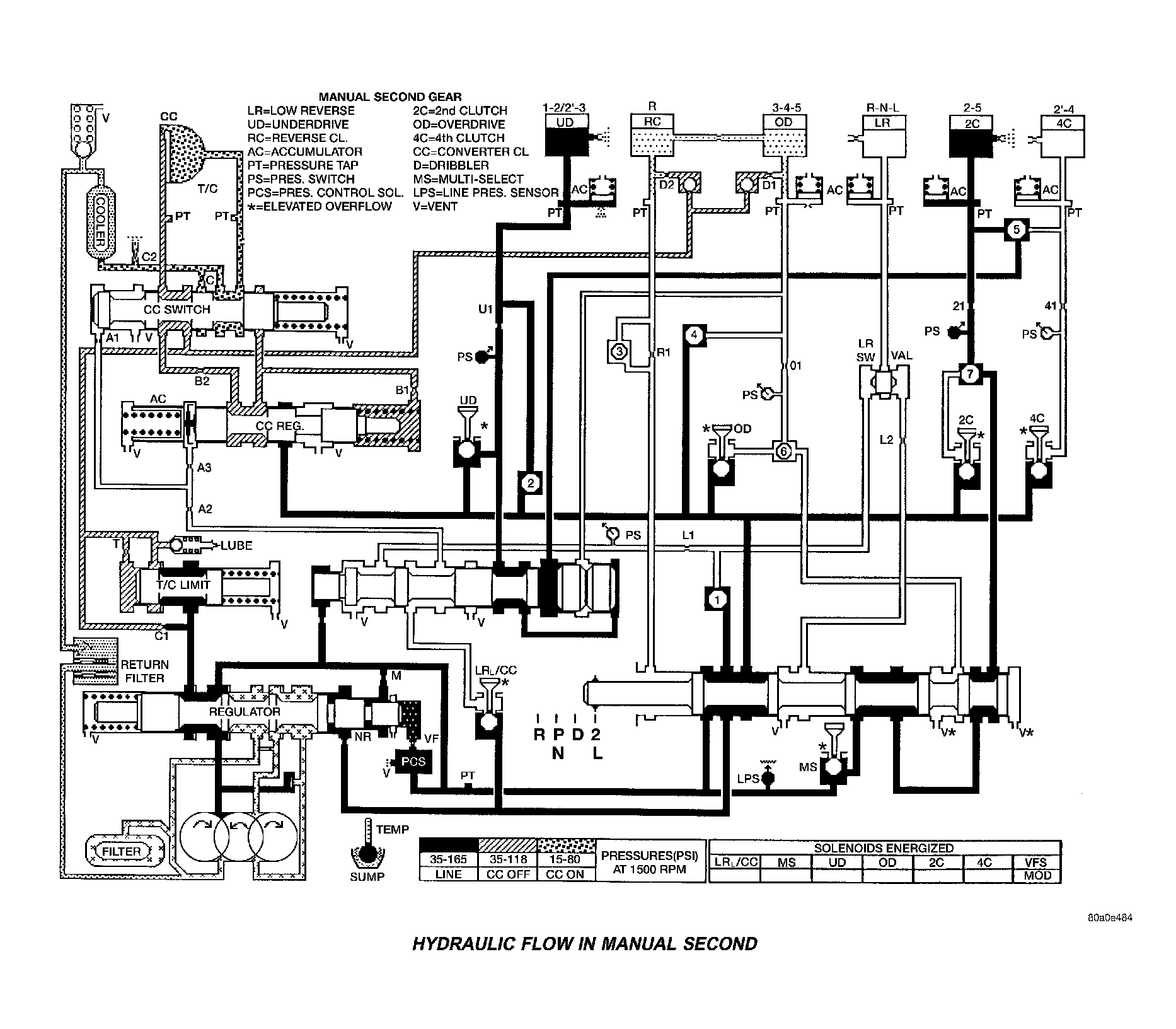

Manual Second:

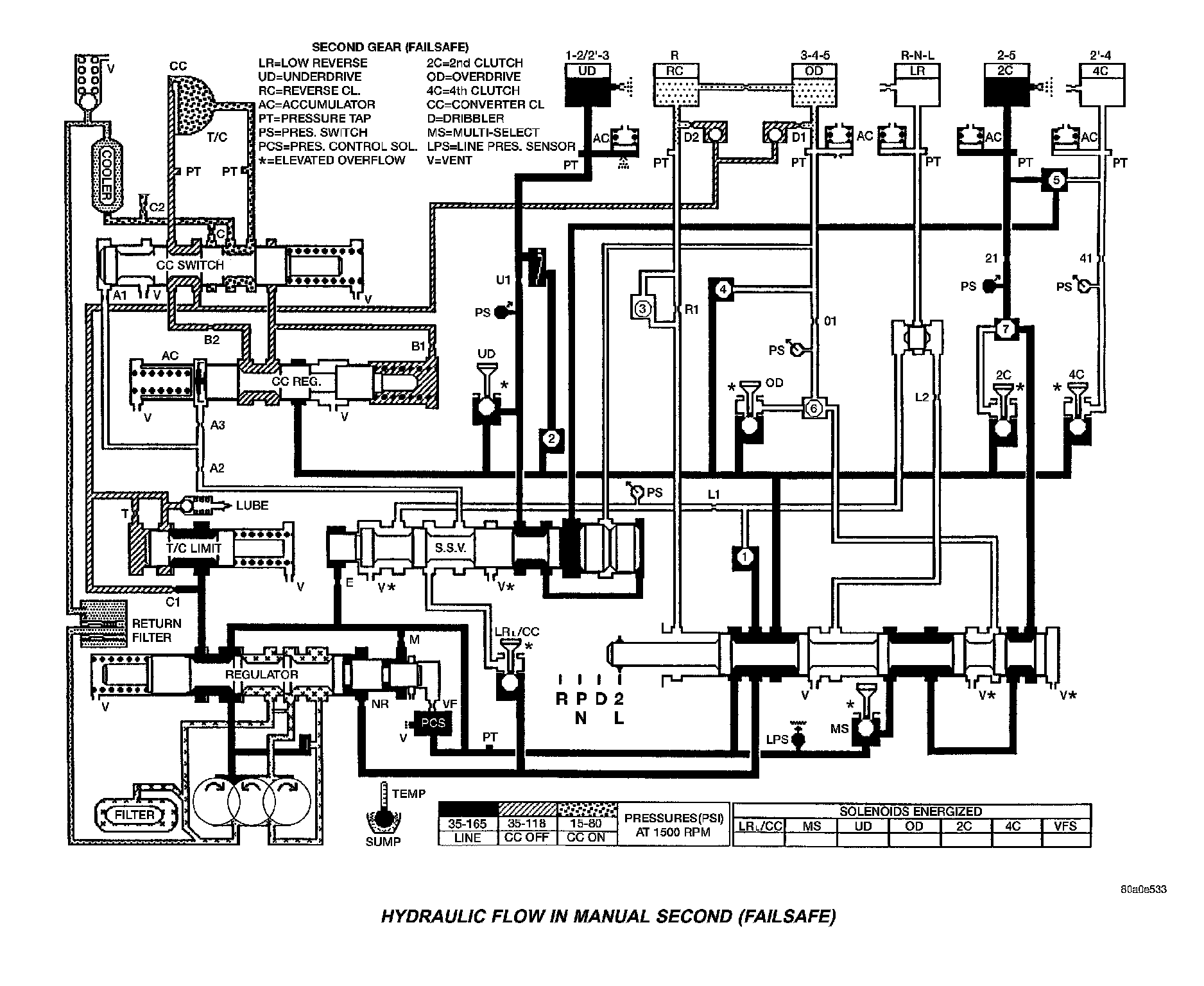

Manual Second (Fail-safe):
