Home
>>
Jeep Truck
>>
2006
>>
Grand Cherokee 2WD V8-5.7L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Cushion
Seat Cushion

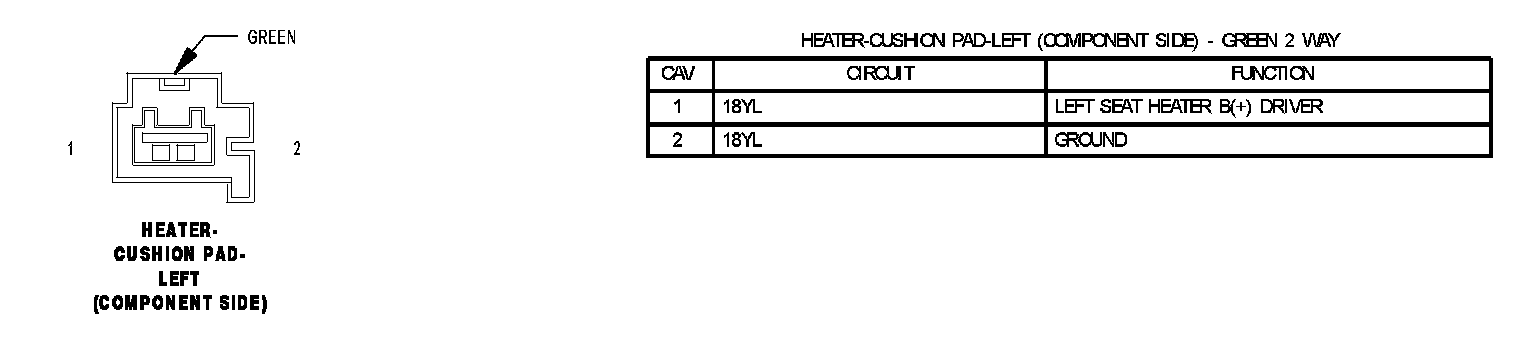

Heater Cushion Pad Left (Component Side):

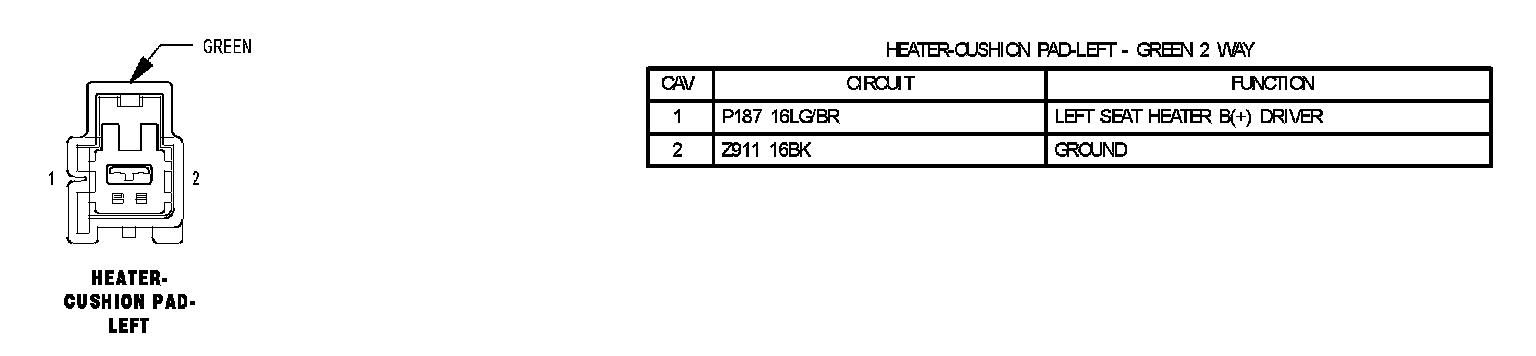

Heater Cushion Pad Left:
Heater Cushion Pad Right (Component Side):

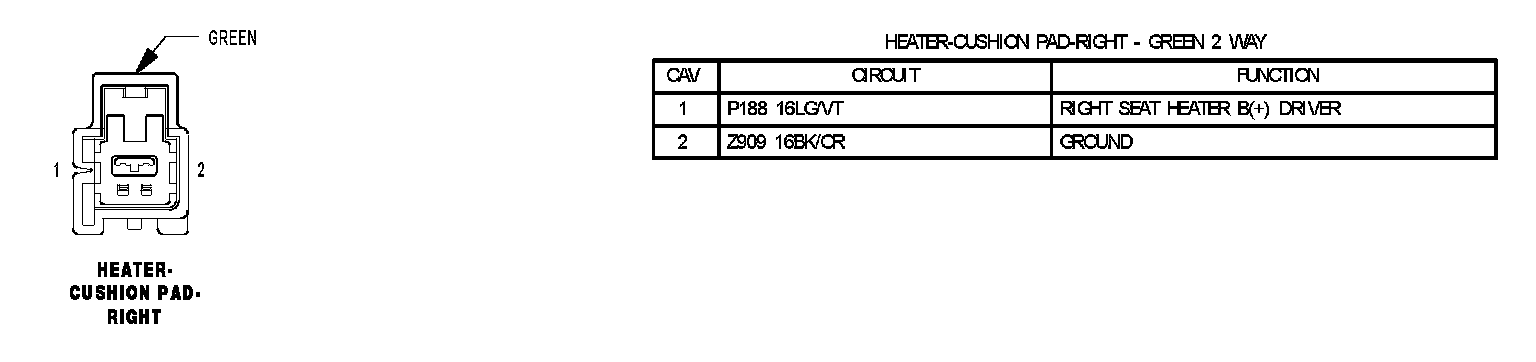

Heater Cushion Pad Right:
