Radio/Stereo
>>
System Diagram
System Diagram

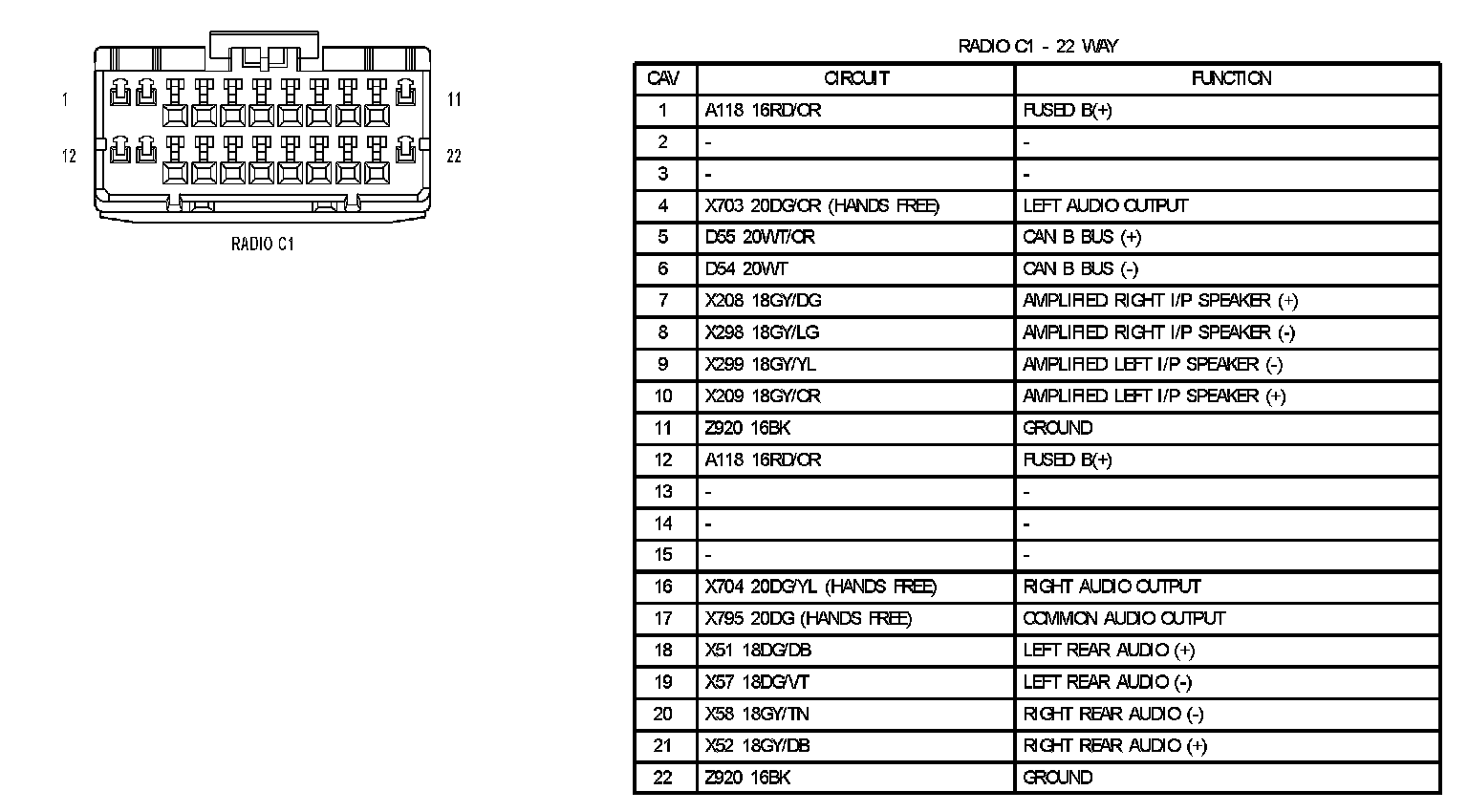

Radio C1:

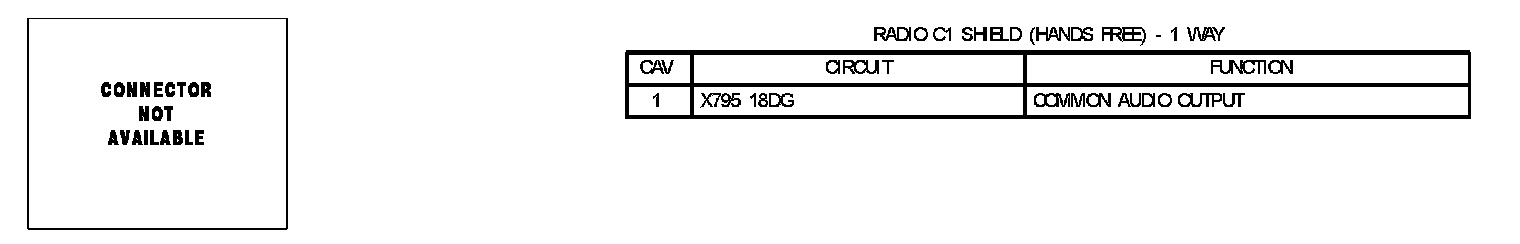

Radio C1 Shield (Hands Free) 1 Way:

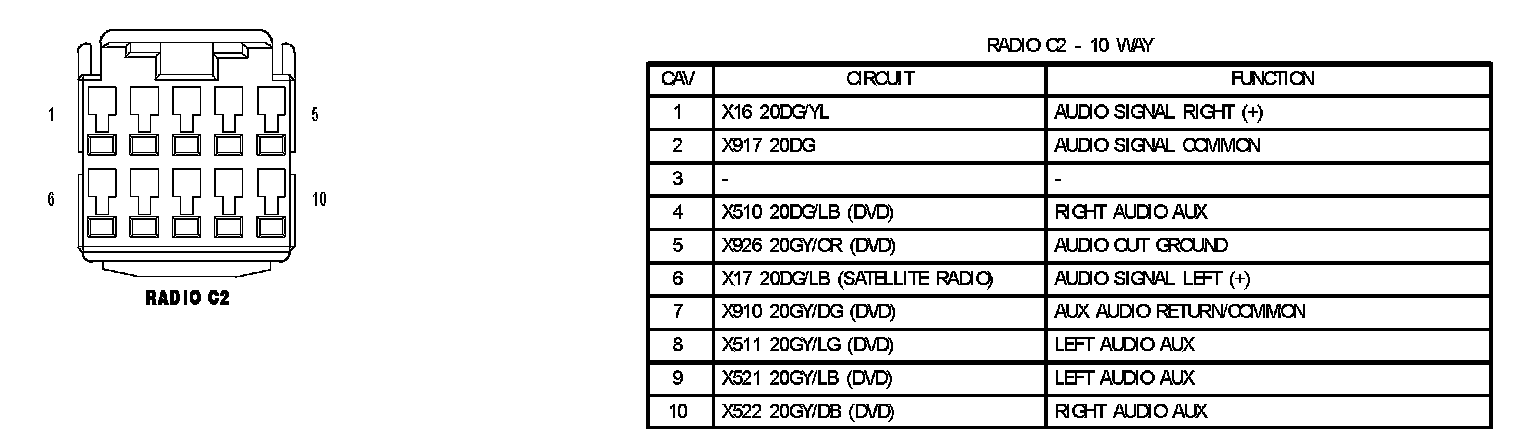

Radio C2:

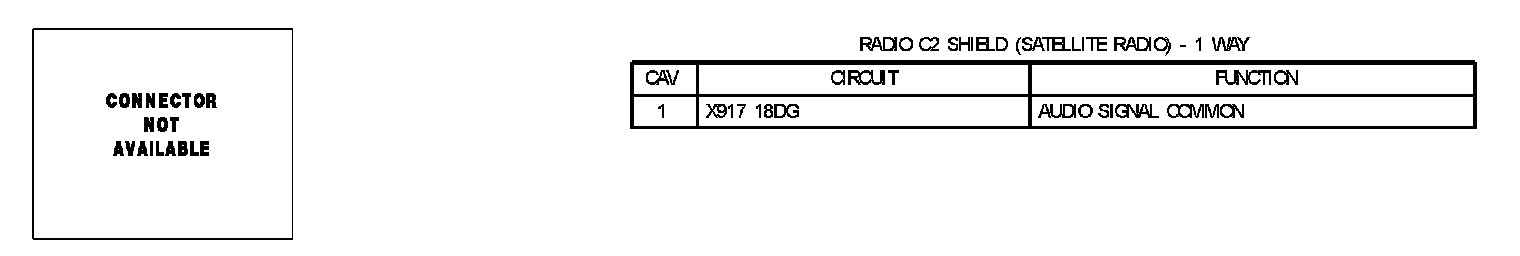

Radio C2 Shield (Satellite Radio) 1 Way:
