Grand Cherokee 2WD V8-5.7L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radiator Cooling Fan Motor Relay
Radiator Cooling Fan Motor Relay

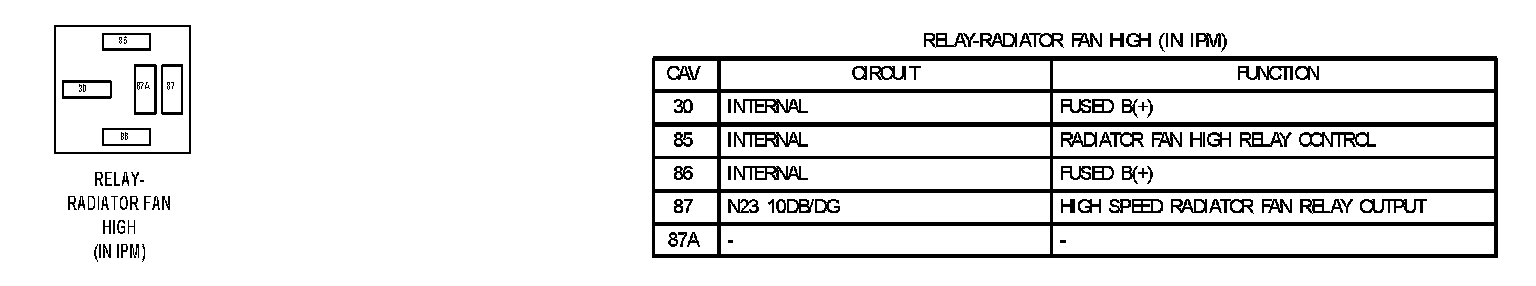

Relay Radiator Fan High (In IPM):

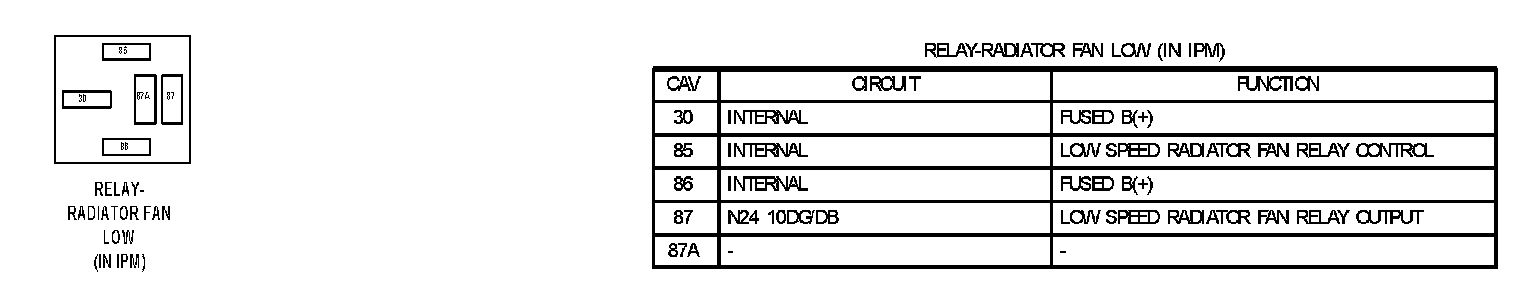

Relay Radiator Fan Low (In IPM):
