Jeep Truck
>>
2006
>>
Grand Cherokee 2WD V8-5.7L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Assist Warning Indicator
Parking Assist Warning Indicator

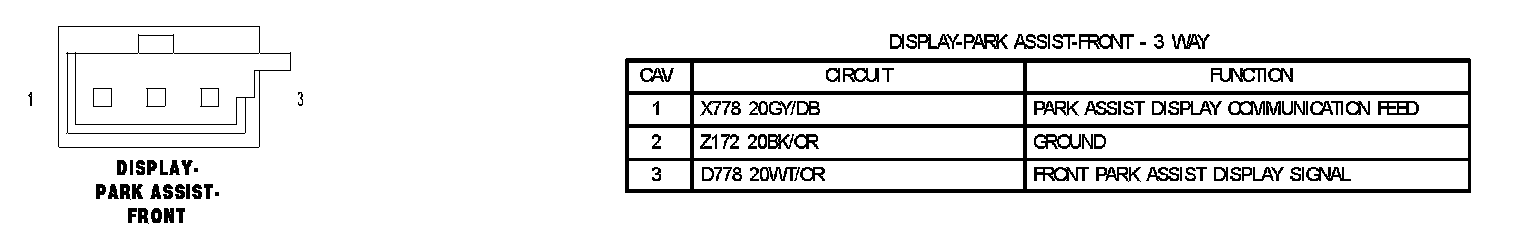

Display Park Assist Front:

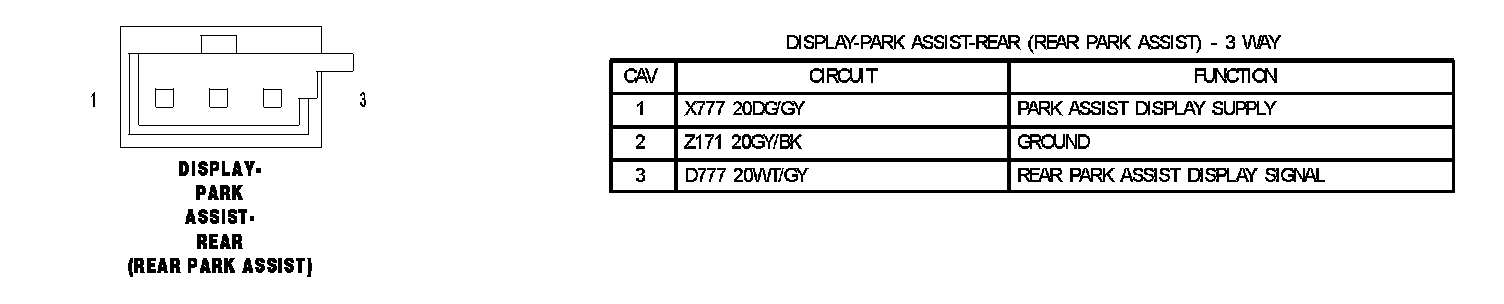

Display Park Assist Rear (Rear Park Assist):
