Home
>>
Jeep Truck
>>
2006
>>
Grand Cherokee 2WD V8-5.7L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fog/Driving Lamp
>>
System Diagram
System Diagram

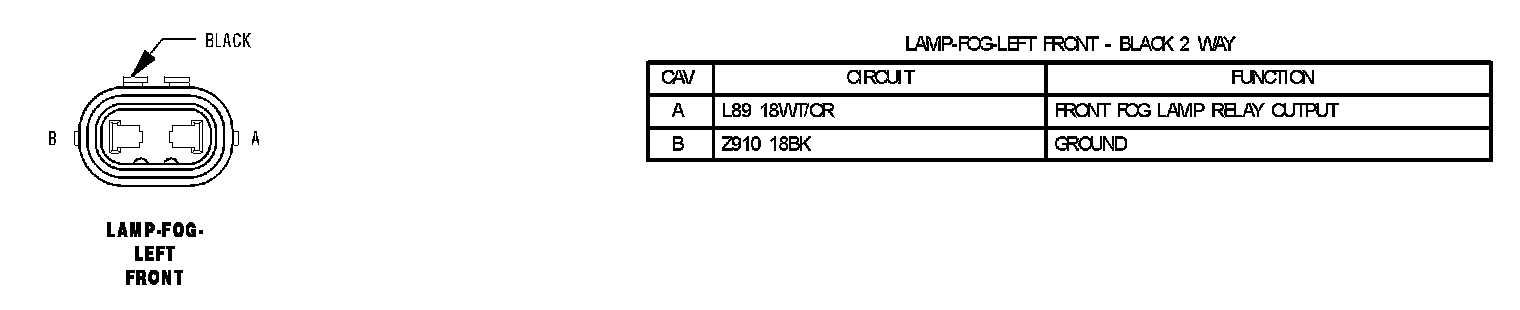

Lamp Fog Left Front:

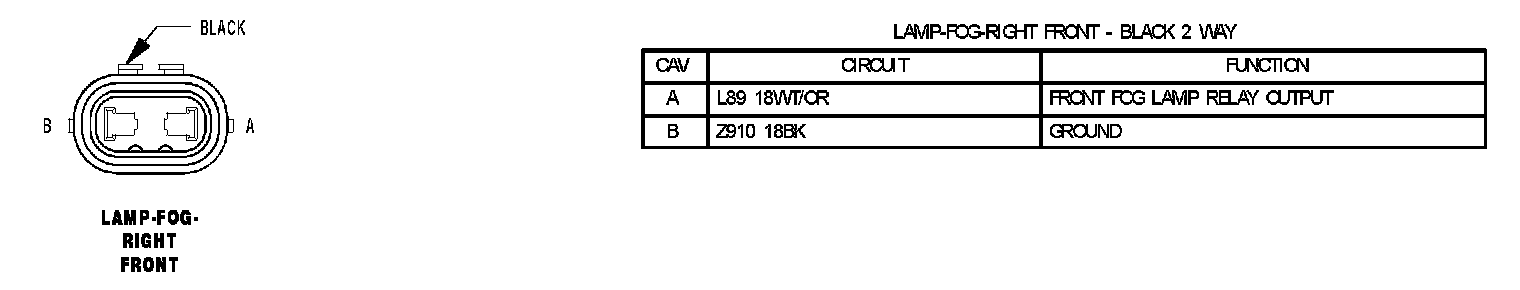

Lamp Fog Right Front:
