Home
>>
Jeep Truck
>>
2006
>>
Grand Cherokee 2WD V8-5.7L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fluid Pressure Sensor/Switch, A/T
Fluid Pressure Sensor/Switch, A/T

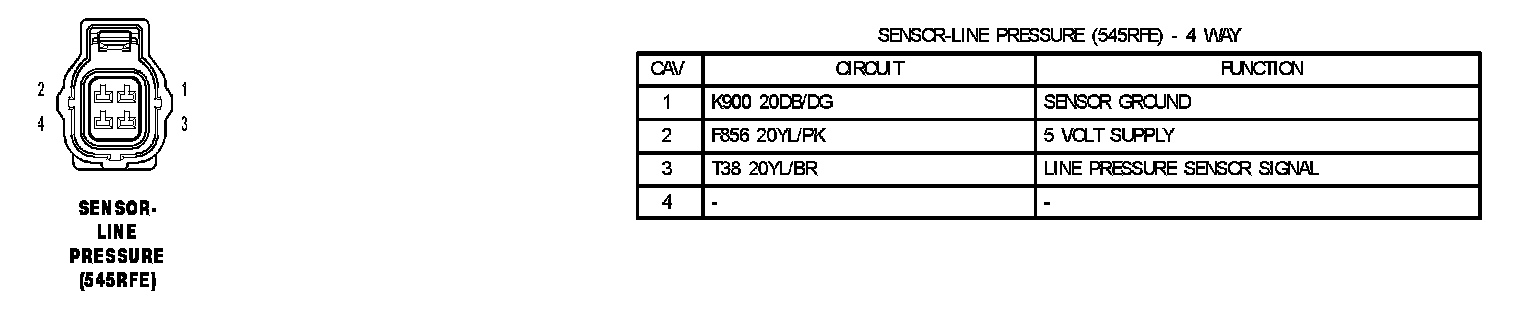

Sensor Line Pressure (545RFE):
