Jeep Truck
>>
2006
>>
Grand Cherokee 2WD V8-5.7L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C306 - C320
>>
C314
C314

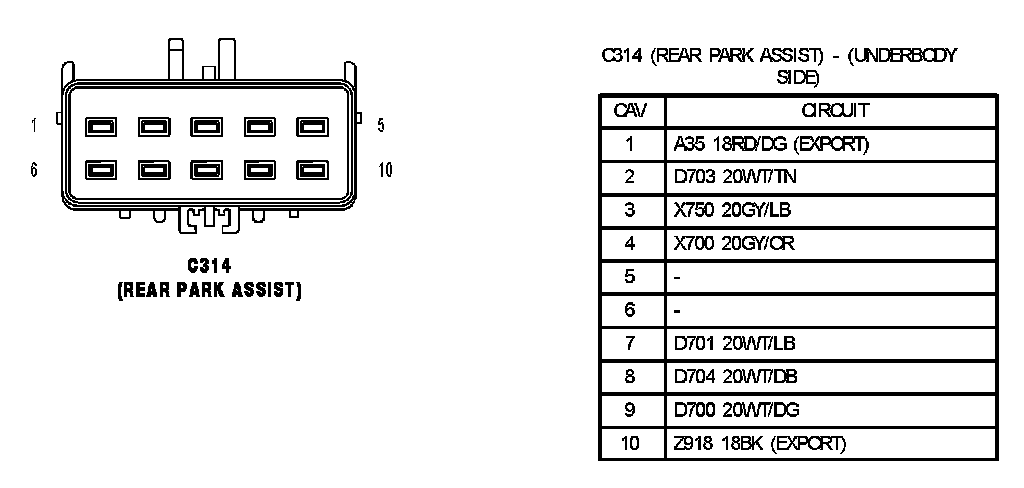

C314 (Rear Park Assist):

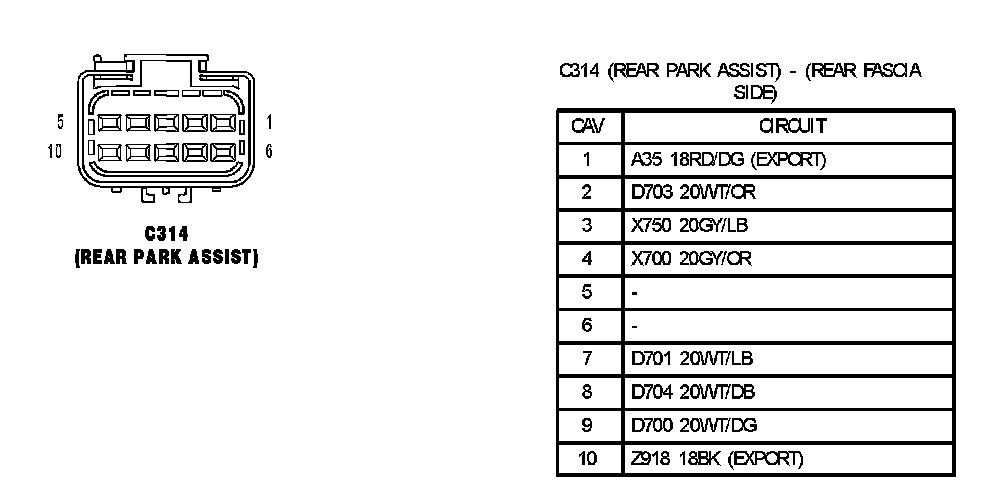

C314 (Rear Park Assist):
