Auxiliary Power Outlet
Auxiliary Power Outlet

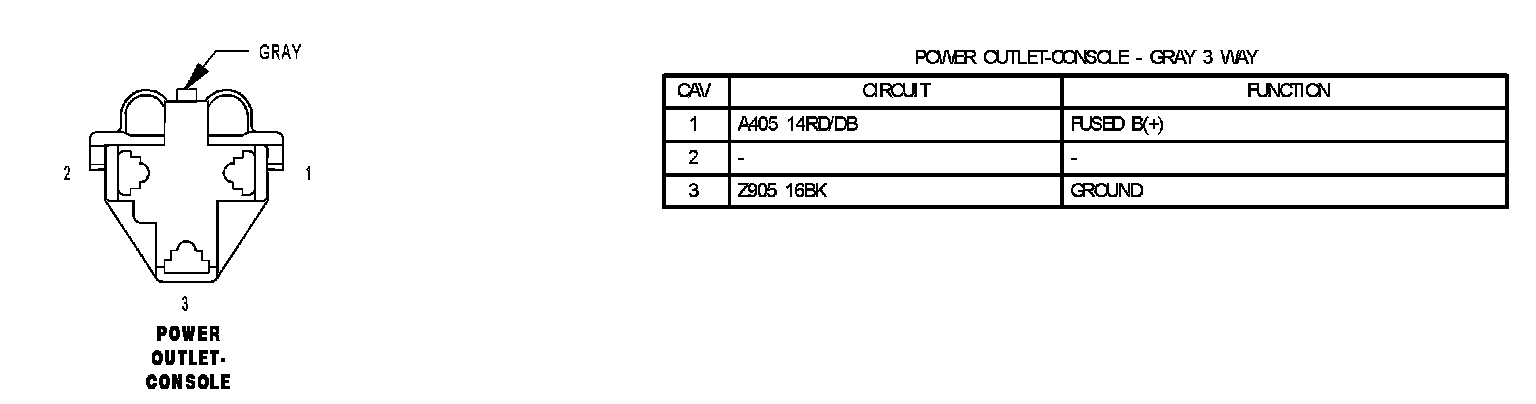

Power Outlet Console:

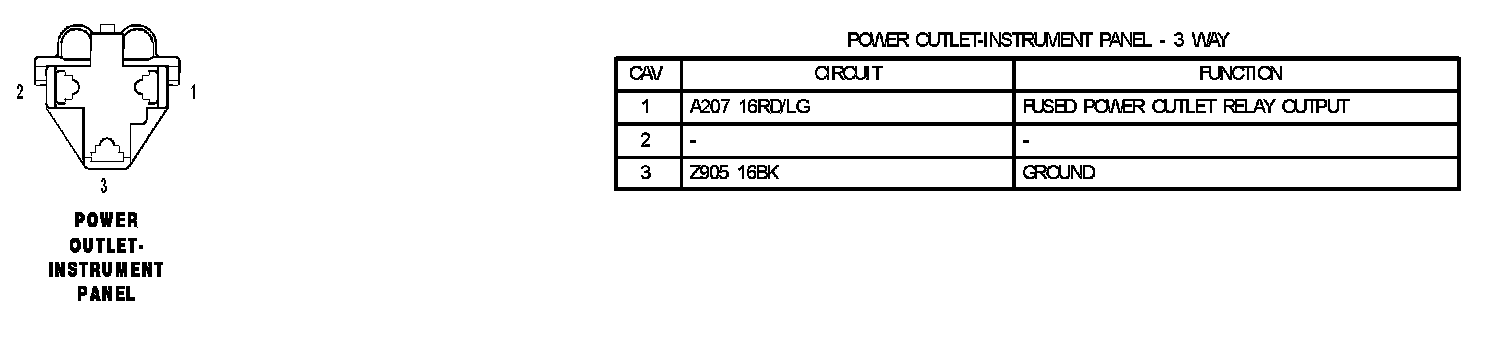

Power Outlet Instrument Panel:

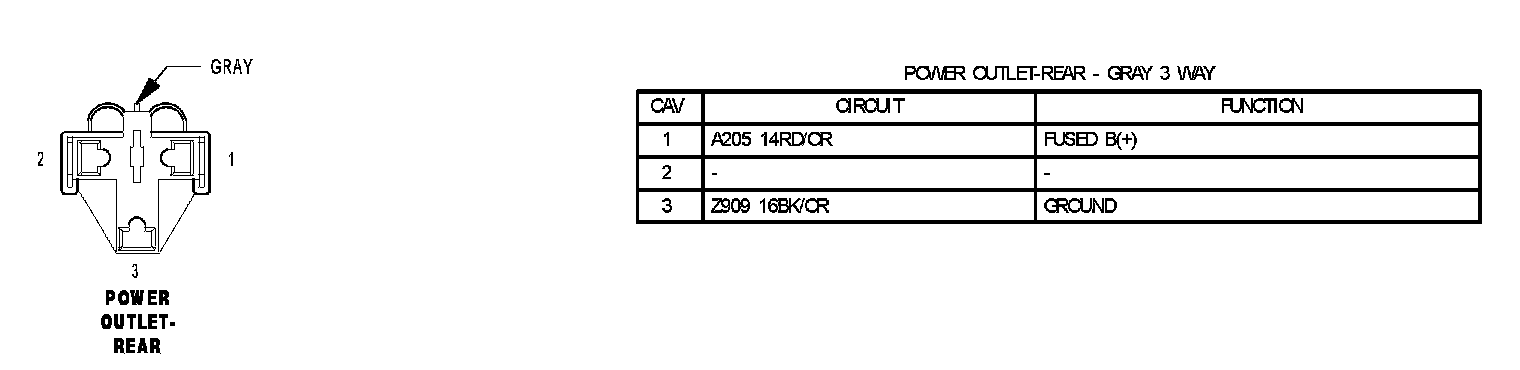

Power Outlet Rear:

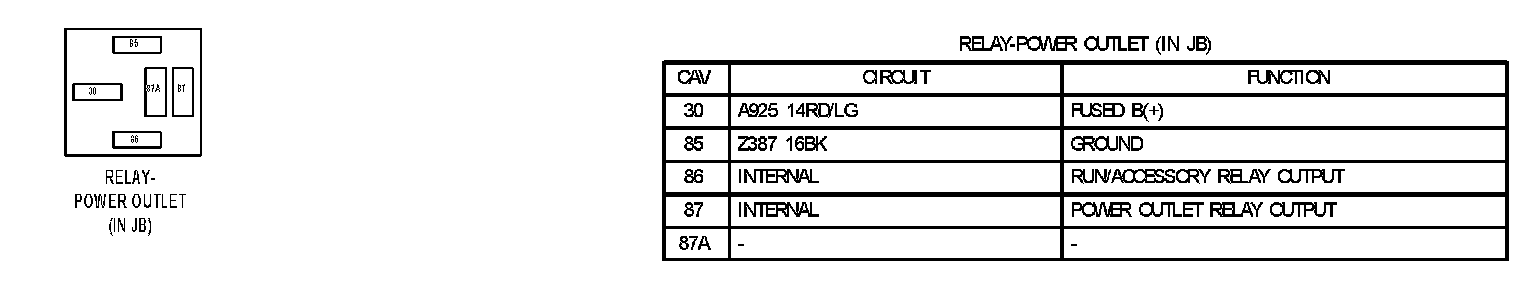

Relay Power Outlet (In JB):
