Parking Brake Lever: Service and Repair

LEVER

REMOVAL





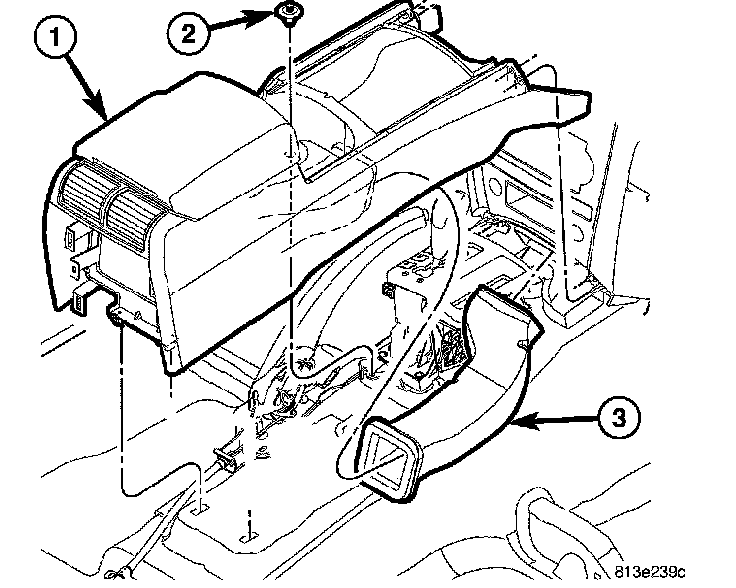

1. Remove the console rear cover (2) or DVD player (if equipped).





2. Remove the center console (1).
3. Disconnect the park brake switch wire connector.
4. Lock out the park brake hand lever.





5. Disconnect the front cable (3) at the hand brake lever (1).
6. Remove the 3 hand brake lever mounting bolts.
7. Disconnect the wire harness routing clips to the lever.
8. Pull the hand lever (1) up to remove the front cable (3).

INSTALLATION





1. Reconnect the wire harness routing clips to the lever.
2. Reconnect the front cable (3) at the hand brake lever (1).
3. Install the 3 hand brake lever (1) mounting bolts.
4. Unlock out the park brake hand lever (1).
5. Reconnect the park brake switch wire connector.
6. Check the operation of the parking brake lever (1) and cable (3).





7. Install the center console (1).





8. Install the rear cover (2) or the DVD player (if equipped).
