FRONT CABLE

REMOVAL
1. Disconnect the negative battery cable.





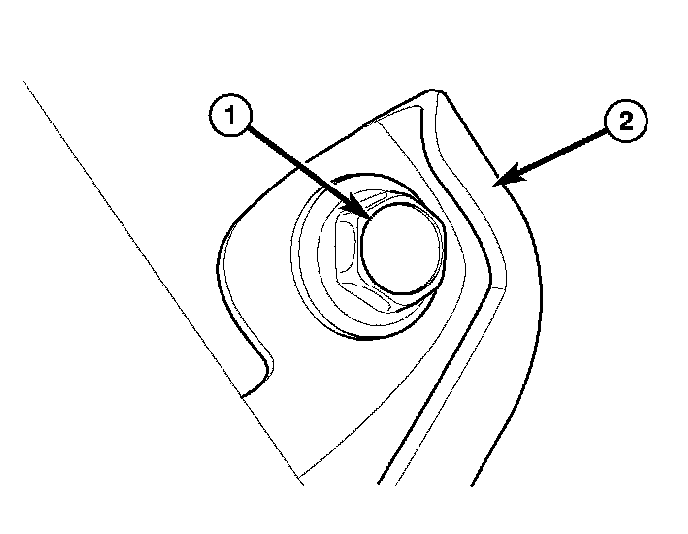

2. Remove the drivers seat.

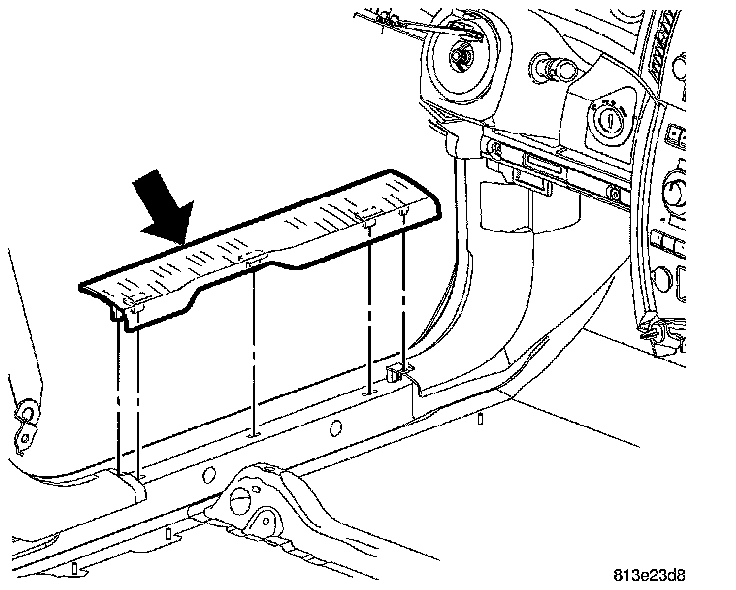

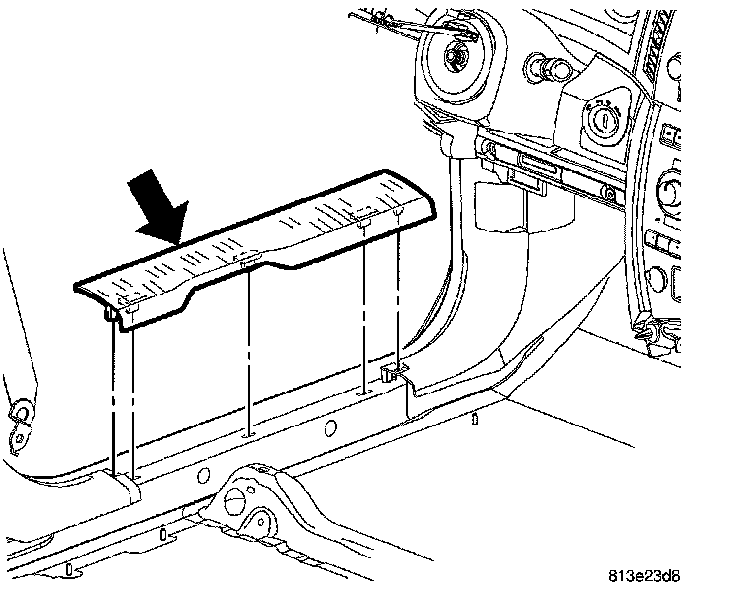

3. Remove the left sill plate.
4. Remove the left B-pillar trim panel.

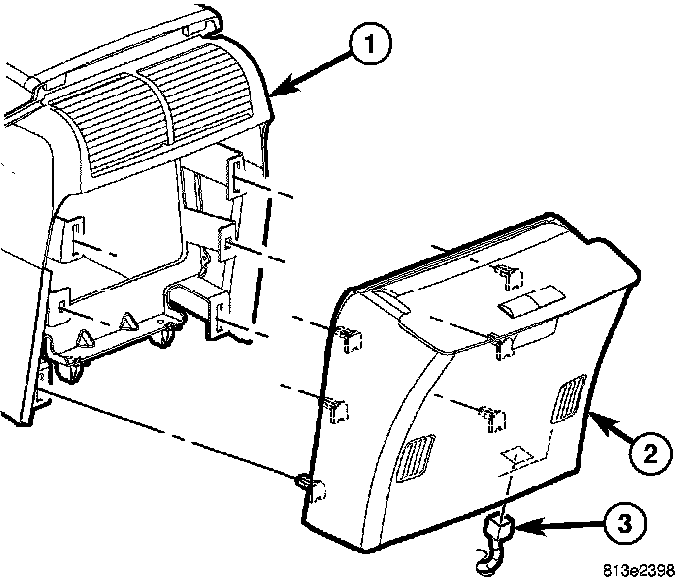

5. Remove the console rear cover (2) or the DVD player (if equipped).

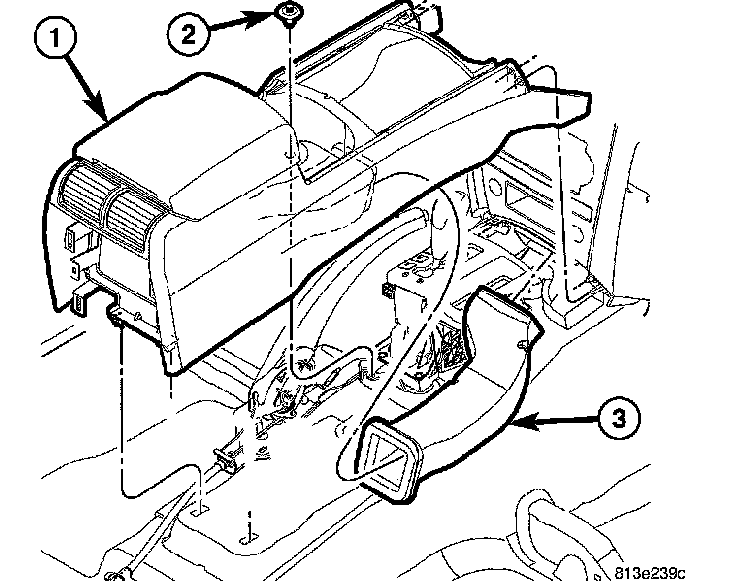

6. Remove center console (1).





7. Remove the rear seat bottom.

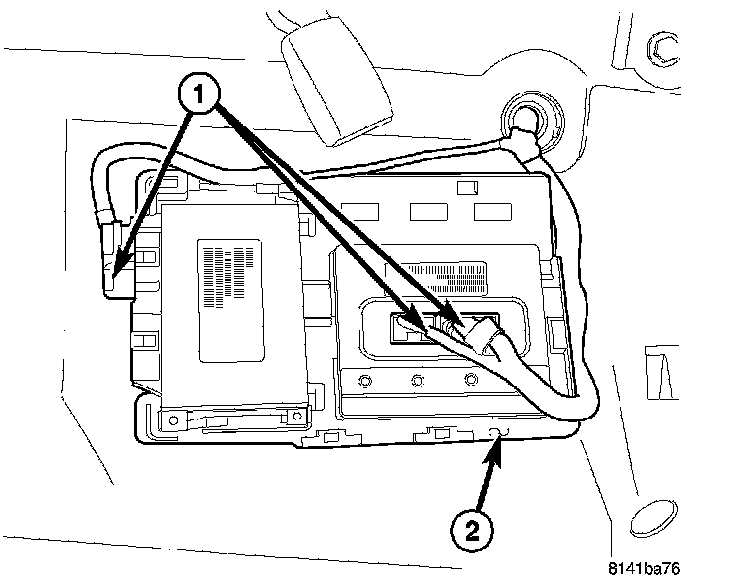

8. Disconnect the modules electrical connectors (1).

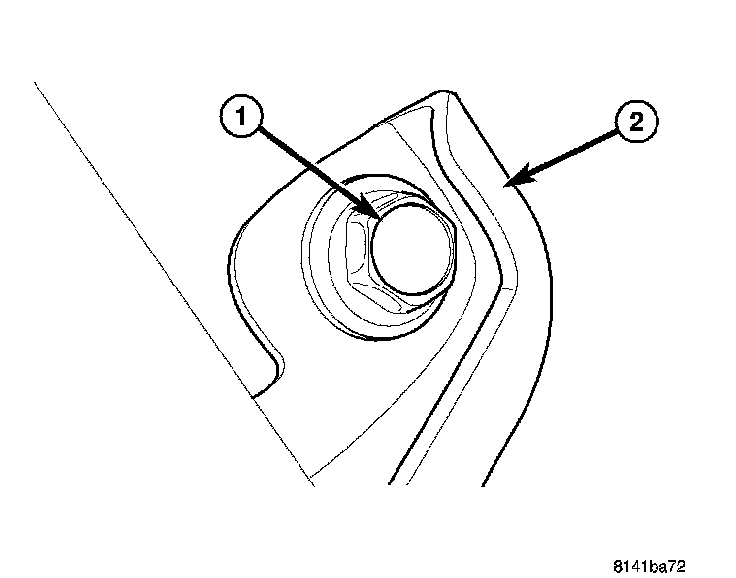

9. Remove the module mounting nuts from the bracket (2).
10. Remove the rear sill plates.
11. Pull and roll the rear carpet upwards to gain access to the front park brake cable.





12. Lock out the front park brake cable.

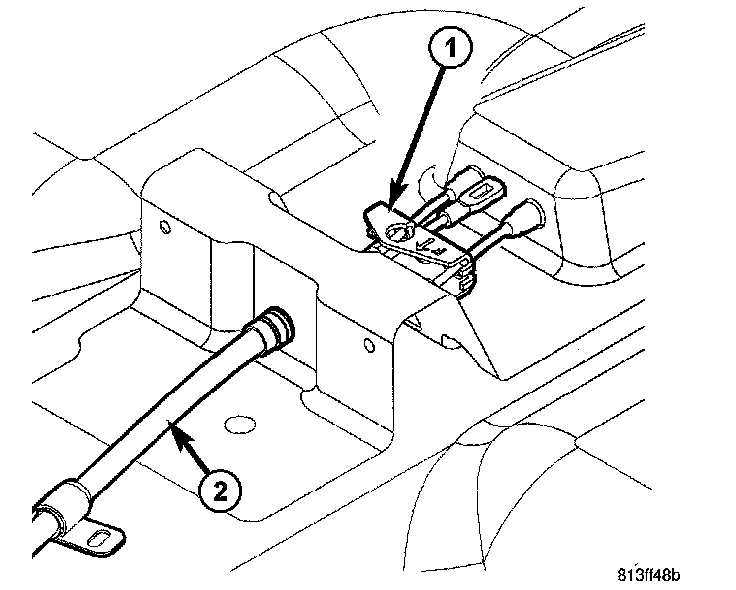

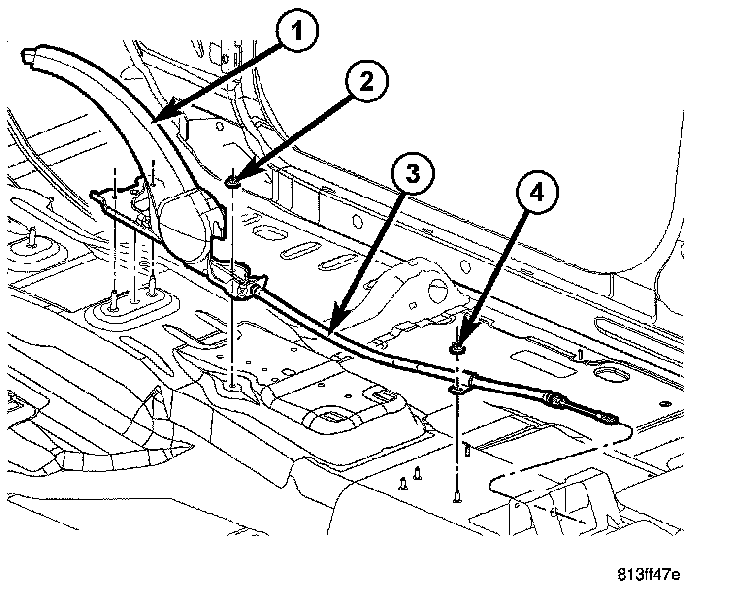

13. Remove the front cable (2) at the equalizer (1).





14. Remove the 2 front cable routing clamps and the 3 nuts (2&4).
15. Remove the front cable at the rear floor bracket.

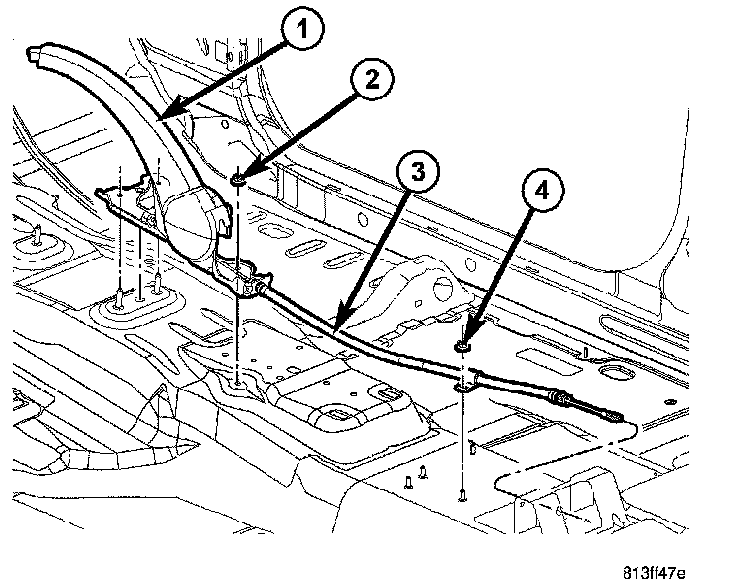

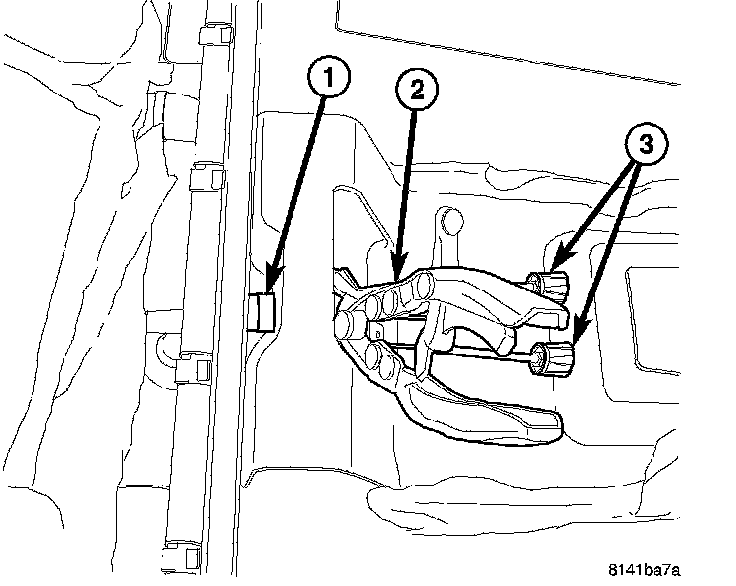

16. Remove the front cable (3) at the hand lever (1).
17. Remove the front cable at the hand lever mounting bracket.

INSTALLATION





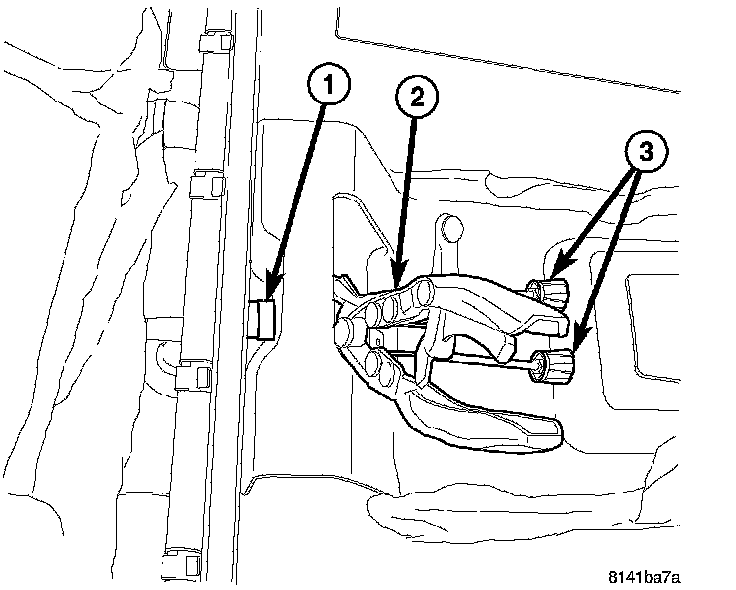

1. Install the front cable (3) at the hand lever mounting bracket (1).
2. Install the front cable (3) at the hand lever (1).
3. Install the front cable at the rear floor bracket.
4. Install the 2 front cable routing clamps and the 3 nuts (2&4).

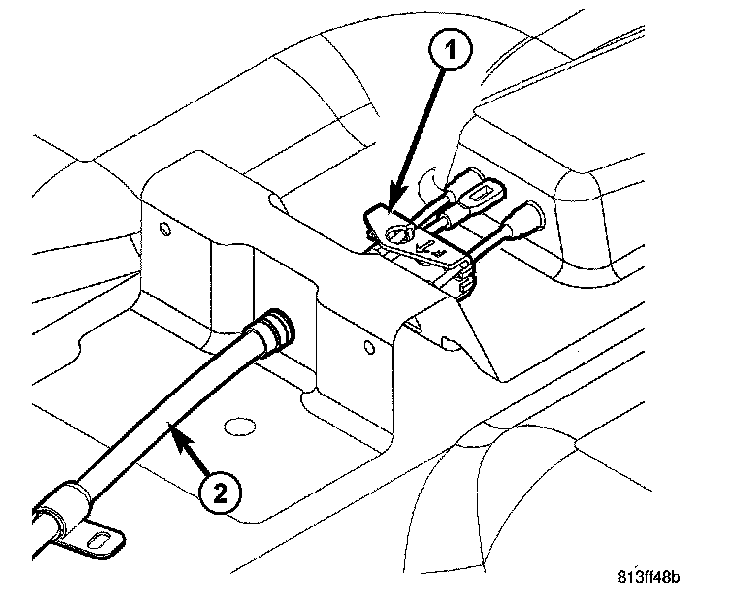

5. Install the front cable (2) at the equalizer (1).





6. Unlock the front park brake cable (1).
7. Install the rear carpet back in place.

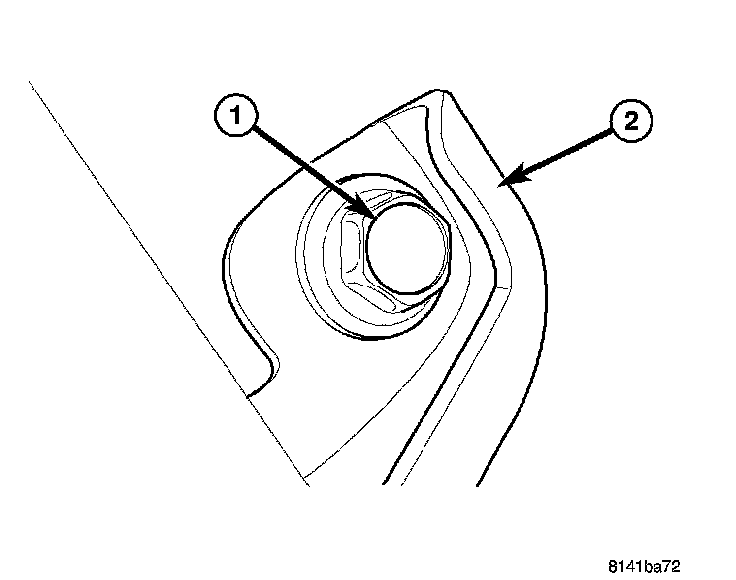

8. Install the module bracket (2) mounting nuts.





9. Reconnect the module electrical connectors (1).
10. Install the rear sill plates.





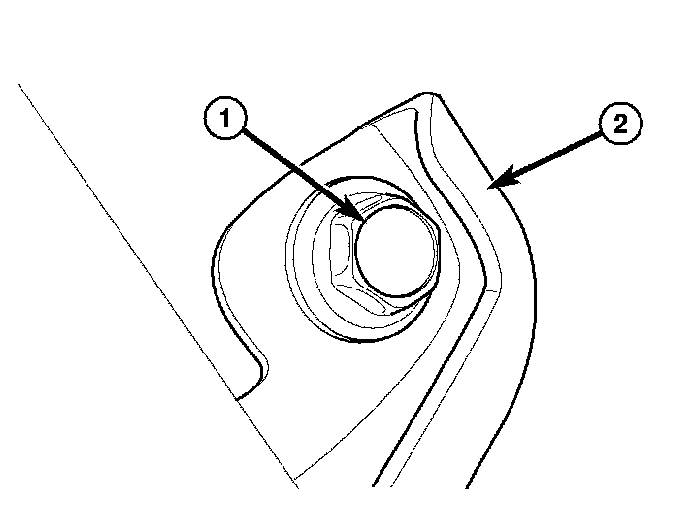

11. Install the drivers seat.





12. Install the left B-pillar trim panel.
13. Install the left sill plate.





14. Install the center console (1).

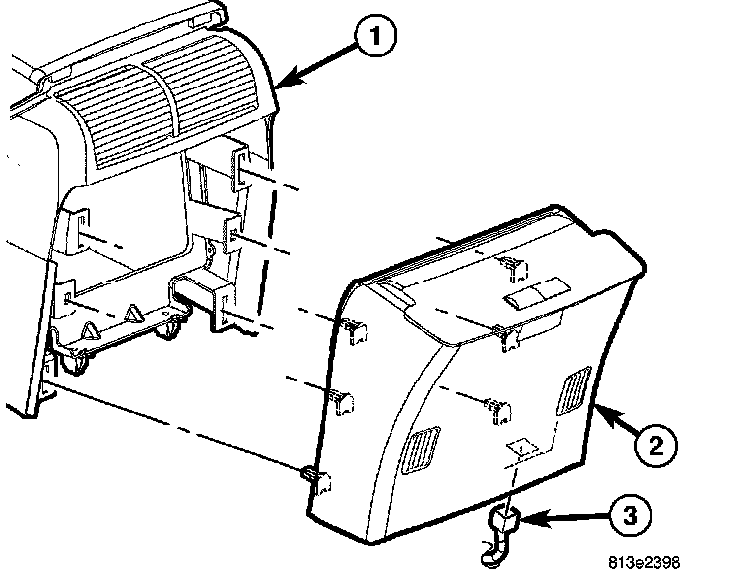

15. Install the console rear cover (2) or the DVD player (if equipped).





16. Install the rear seat bottom.
17. Reconnect the negative battery cable.
