Acceleration/Deceleration Sensor: Description and Operation

SENSOR-G

DESCRIPTION
WITH ESP

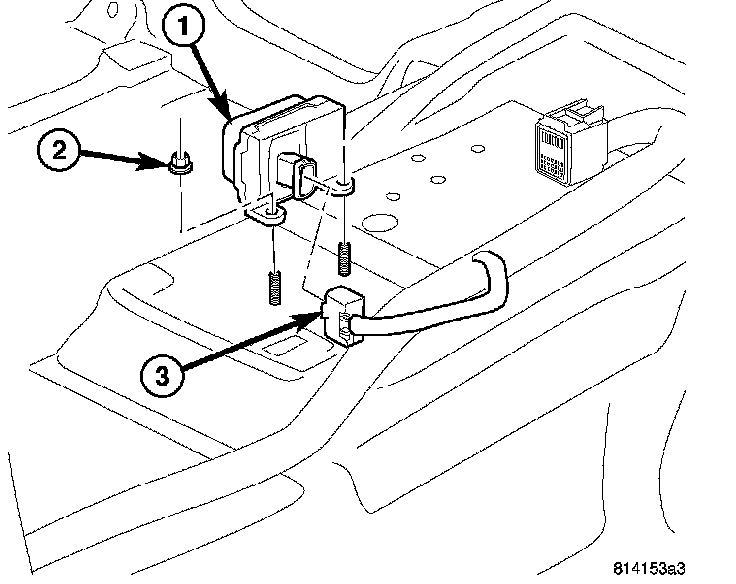

The G-sensor is housed internally in with the dynamics sensor (1) located under the center console. The dynamics sensor component can be replaced as one component only. The G-sensor is not serviceable separately.

WITHOUT ESP

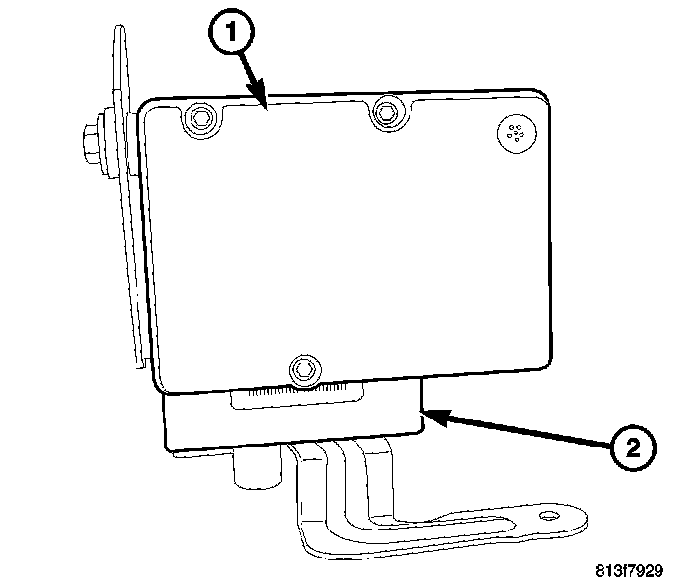

The G-sensor is located inside the ABM (Antilock Brake Module) (1). The sensor is not a separate serviceable part from the ABM (1).
