Seat Temperature Switch: Locations

The Lower Instrument Panel Switch Pod on this model is available in six different configurations. They vary from a single switch configuration to a six switch configuration. The lower switch pod is located just below the HVAC control unit in the instrument panel center stack, Refer to each individual area of the service/diagnostic information for Description, Operation, Diagnosis, and Testing of the effected switch (I.E. Adjustable Pedals Switch - Brakes).

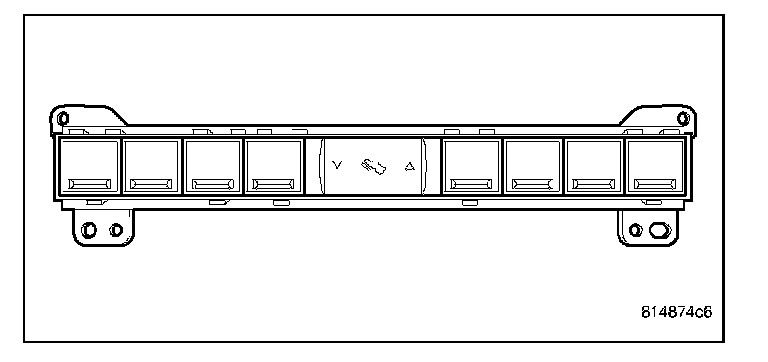

The one button switch configuration will include:




- Adjustable Pedals Switch Pedal Positioning System




The two button switch configuration will include:
- Adjustable Pedals Switch Pedal Positioning System
- Traction Control OFF Switch

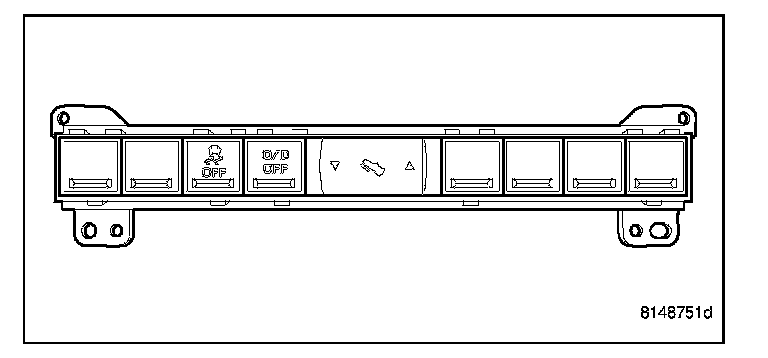

The three button switch configuration will include:
- Adjustable Pedals Switch Pedal Positioning System
- Traction Control OFF Switch
- Tow/Haul - Overdrive OFF Switch Description and Operation

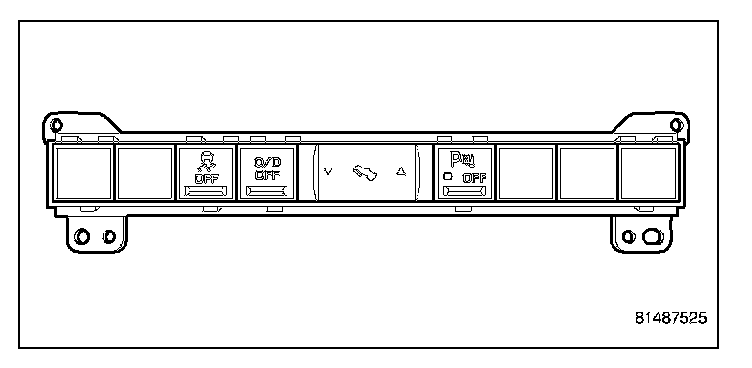

The four button switch configuration will include:
- Adjustable Pedals Switch Pedal Positioning System
- Traction Control OFF Switch
- Tow/Haul - Overdrive OFF Switch Description and Operation
- Park Assist OFF Switch Collision Avoidance and Parking Assist Systems

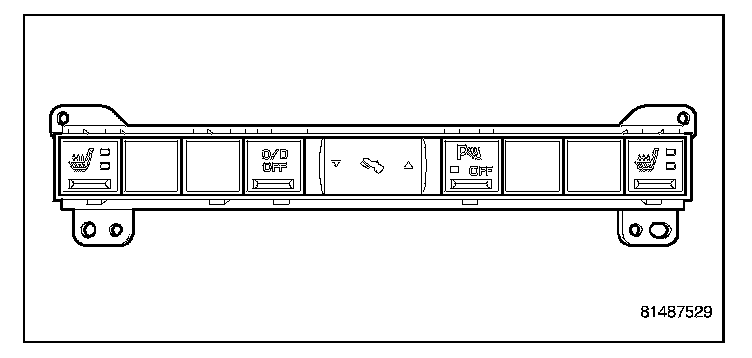

The five button switch configuration will include:
- Adjustable Pedals Switch Pedal Positioning System
- Traction Control OFF Switch
- Tow/Haul - Overdrive OFF Switch Description and Operation
- Park Assist OFF Switch Collision Avoidance and Parking Assist Systems
- Heated Seat ON/OFF Switches Seat Temperature Switch

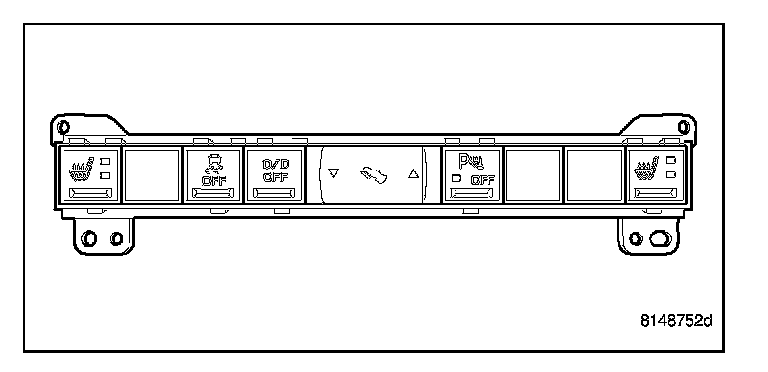

The six button switch configuration will include:
- Adjustable Pedals Switch Pedal Positioning System
- Traction Control OFF Switch
- Tow/Haul - Overdrive OFF Switch Description and Operation
- Park Assist OFF Switch Collision Avoidance and Parking Assist Systems
- Heated Seat ON/OFF Switches Seat Temperature Switch
