Power Seat Motor: Diagrams

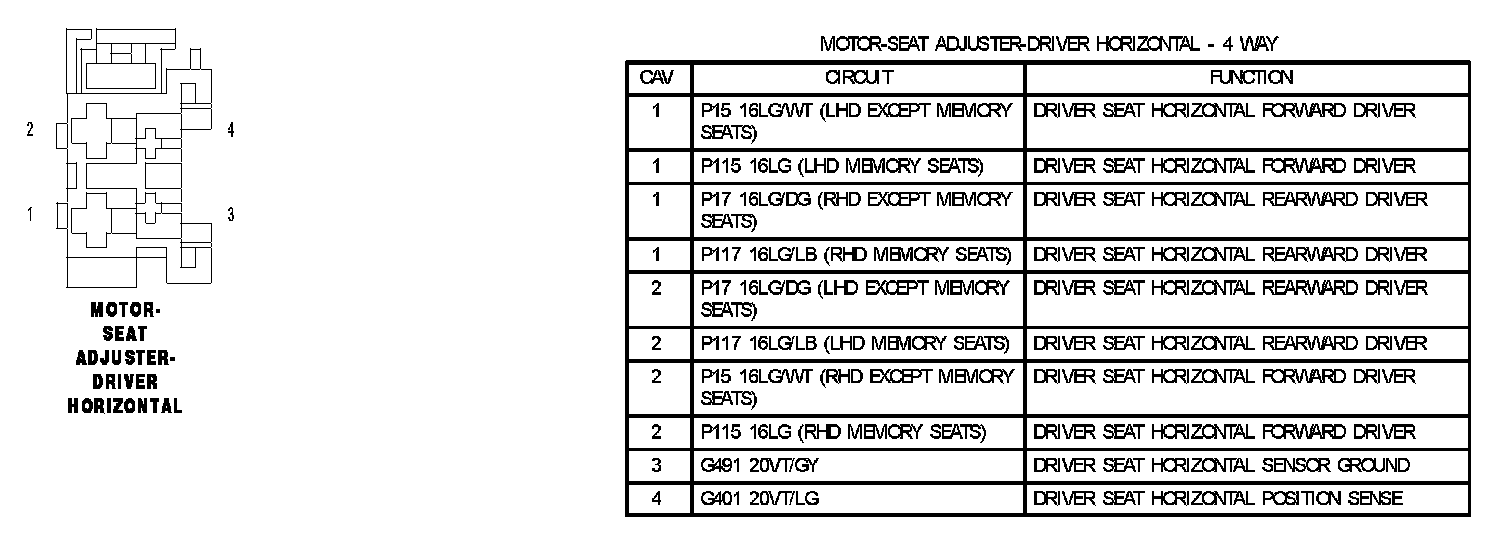

Motor Seat Adjuster Driver Horizontal:

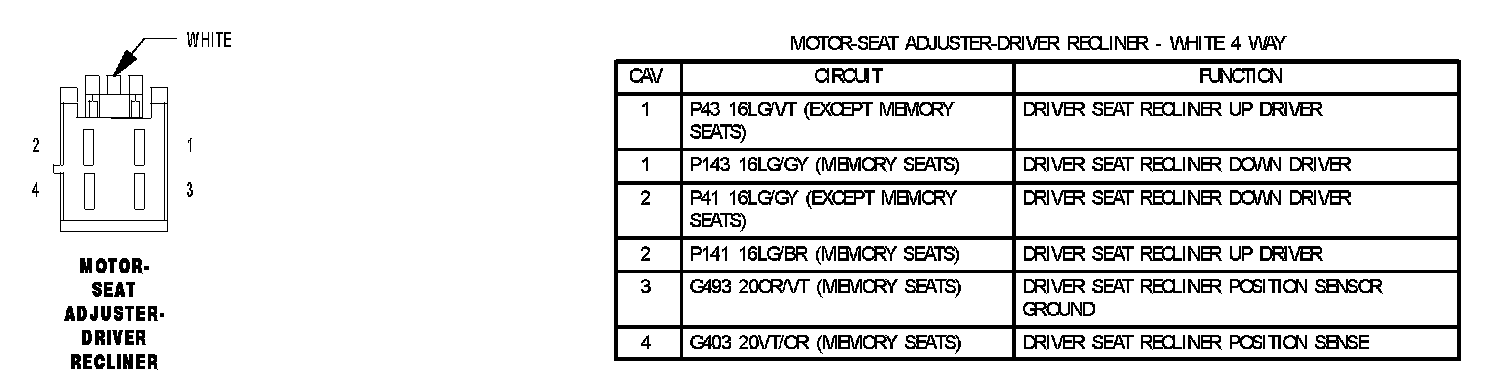

Motor Seat Adjuster Driver Recliner:

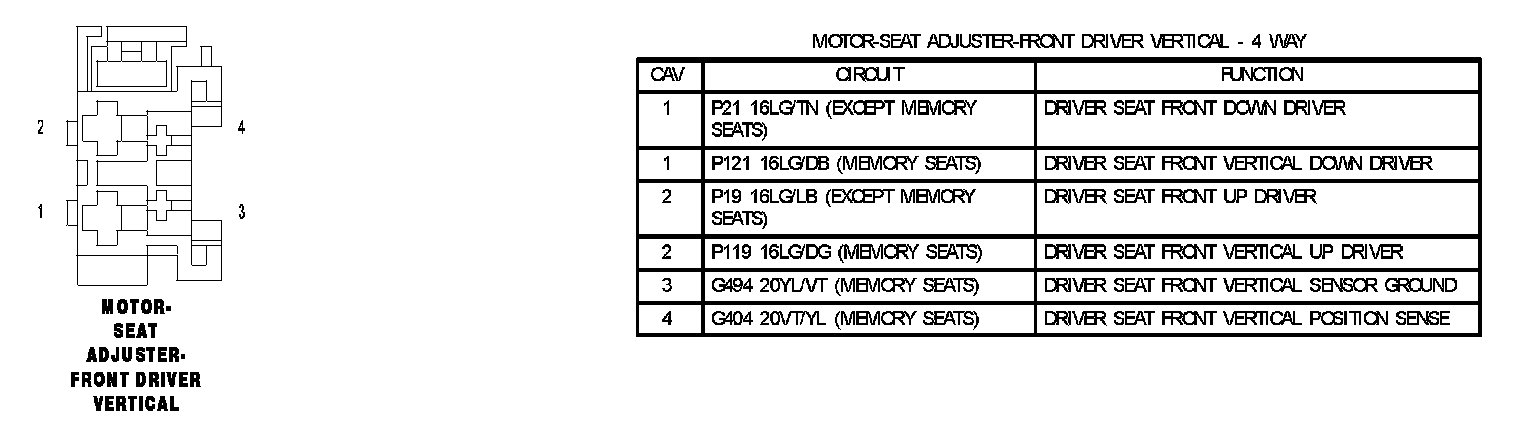

Motor Seat Adjuster Front Driver Vertical:

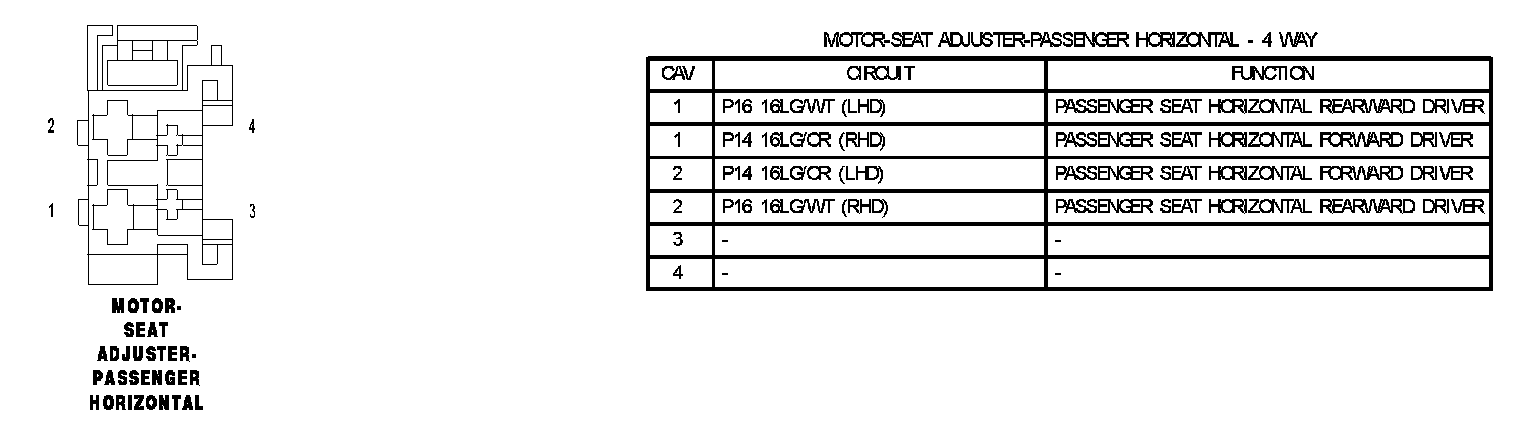

Motor Seat Adjuster Passenger Horizontal:

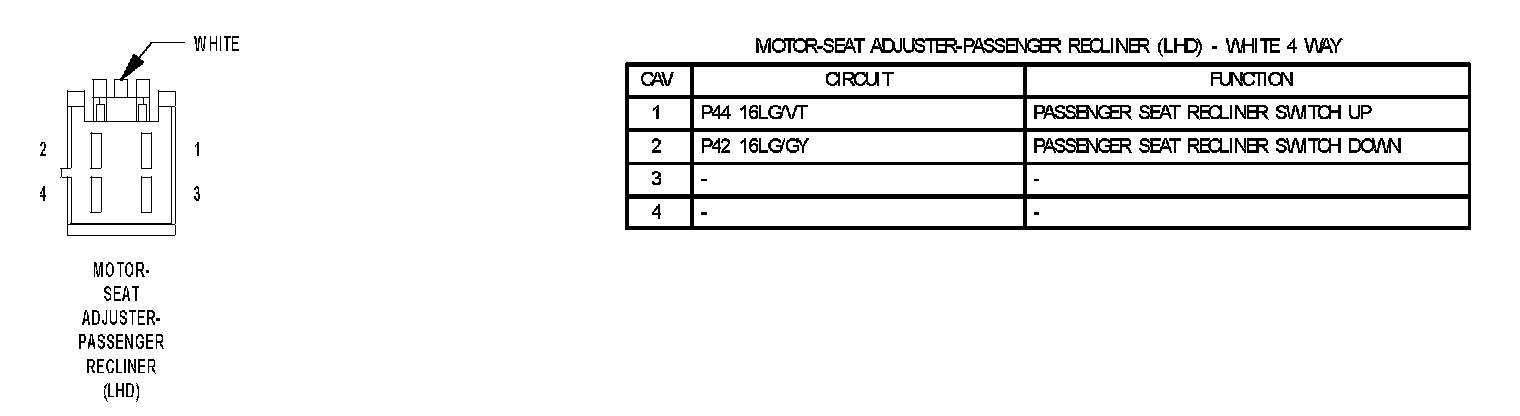

Motor Seat Adjuster Passenger Recliner (LHD):

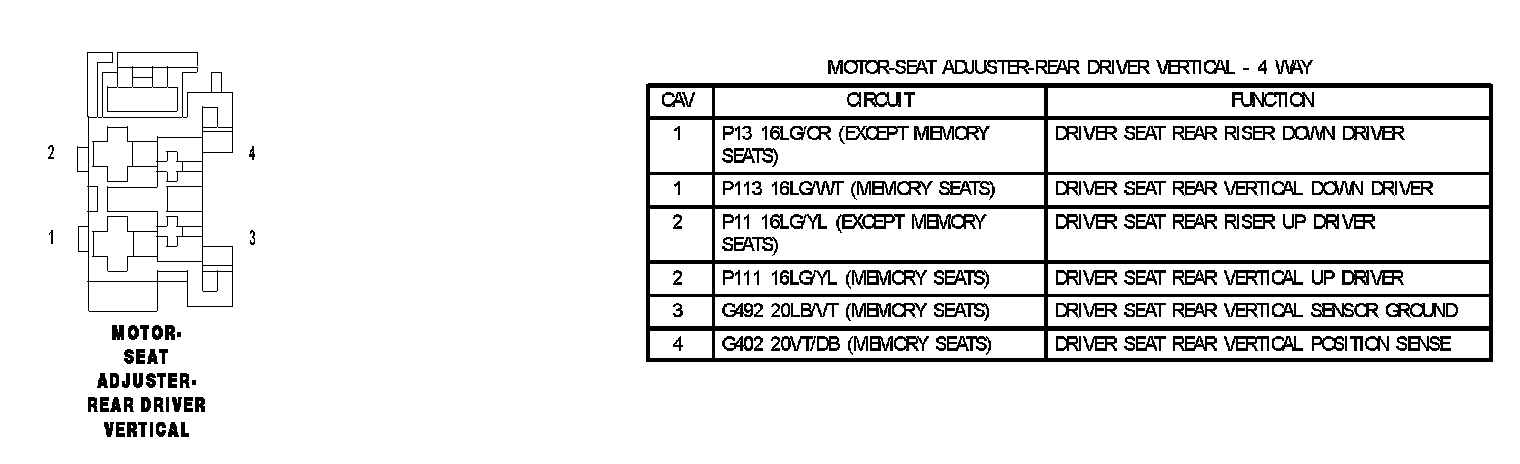

Motor Seat Adjuster Rear Driver Vertical:
