Quarter Panel Trim

QUARTER TRIM PANEL

REMOVAL

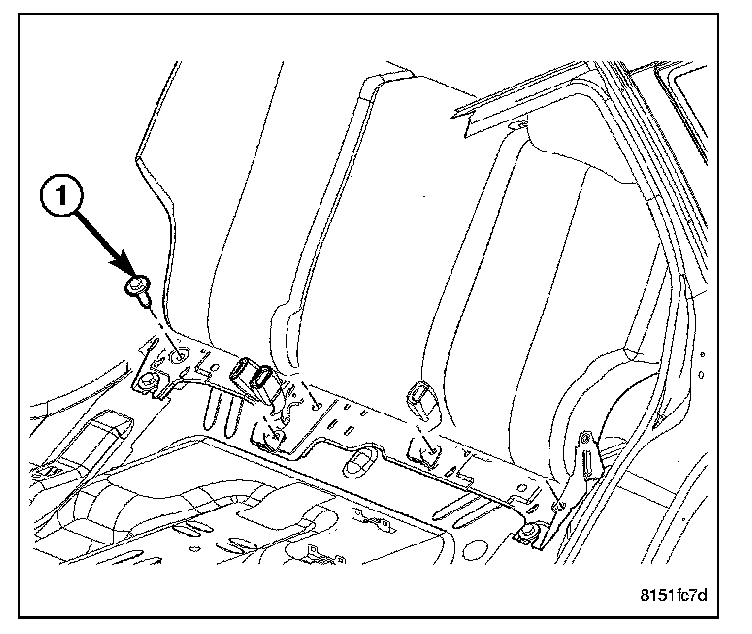

1. Remove the rear passenger seat cushion.

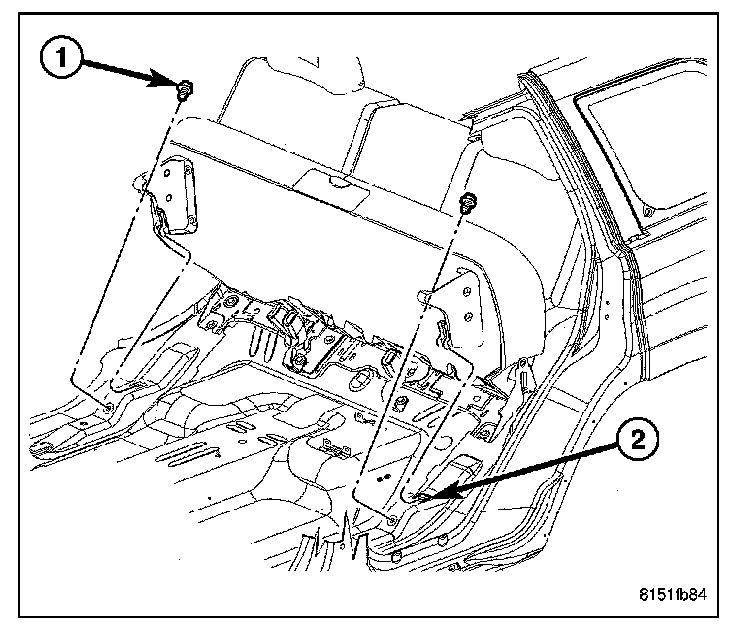

2. Remove the rear seat back.

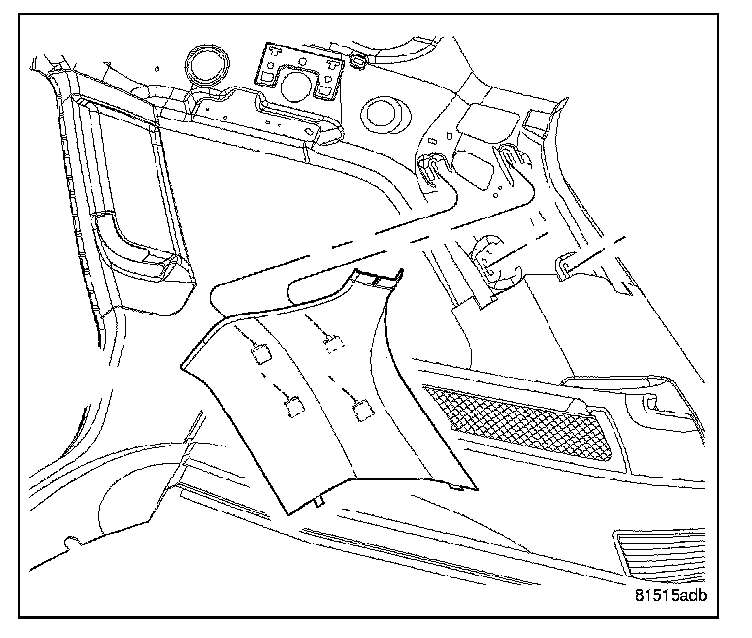

3. Using a trim stick C-4755 or equivalent, disengage the retaining tabs that secure the upper C-pillar trim panel to the retaining clips in the C-pillar and position the panel and the seat belt out of the way.

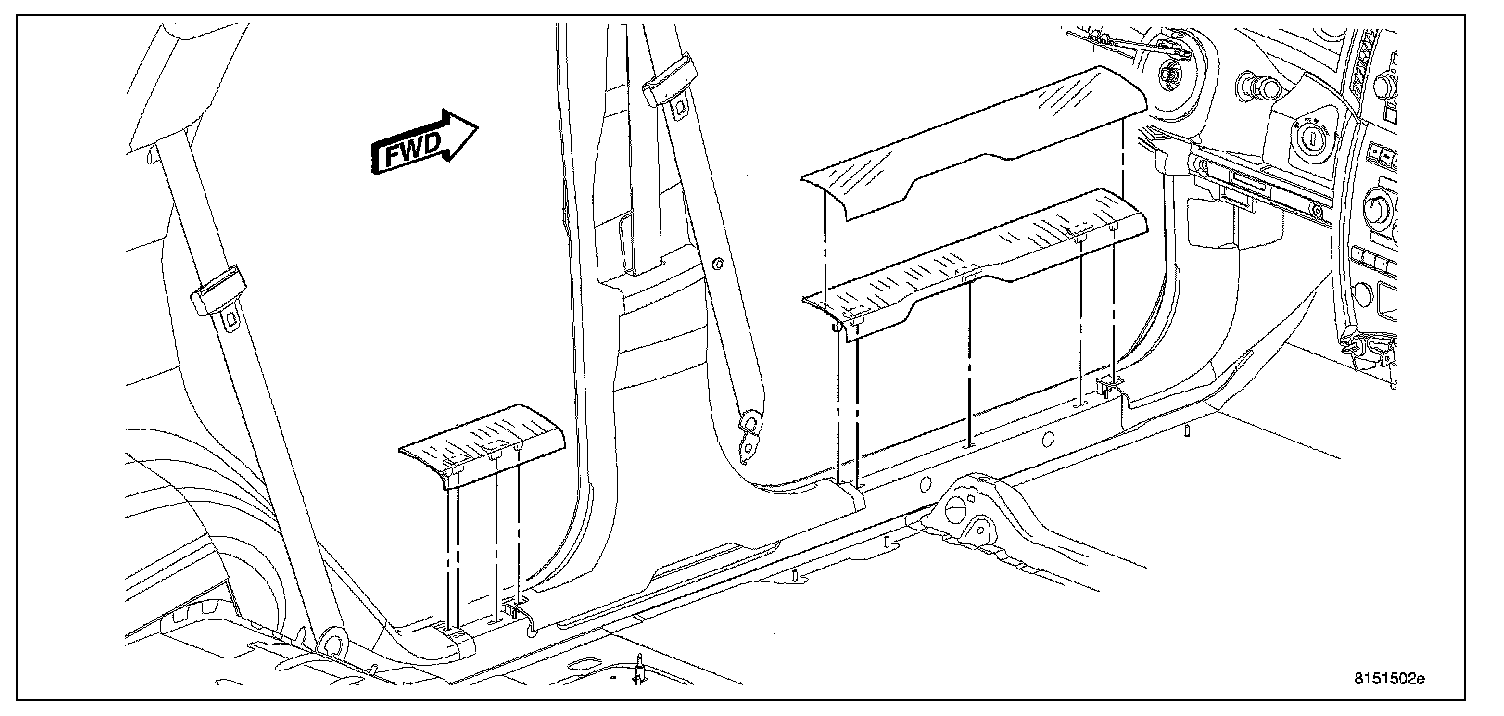

4. Remove the rear passenger door sill scuff plate, Refer to Trim Panel.




5. If equipped, remove the tonneau cover.

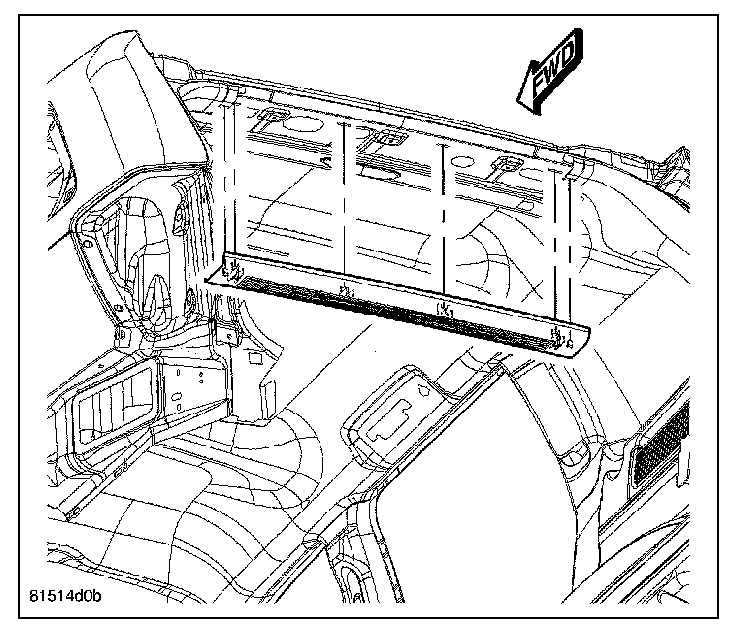

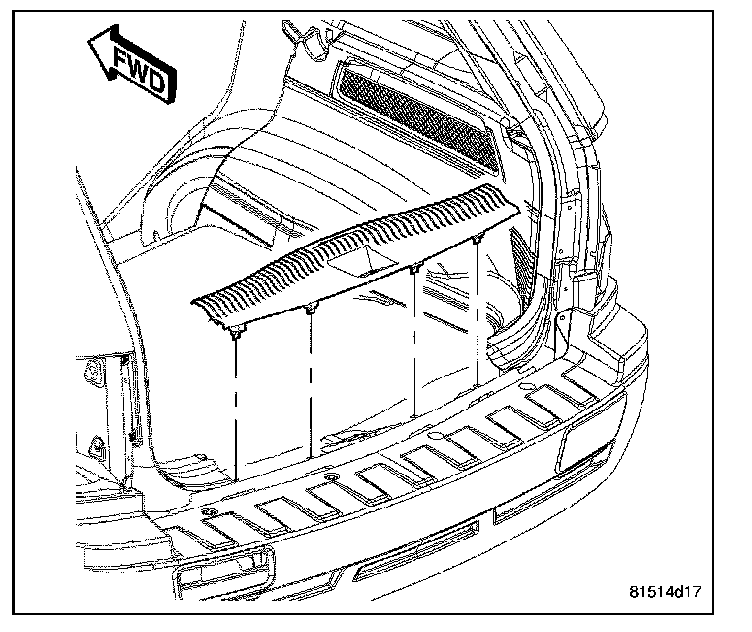

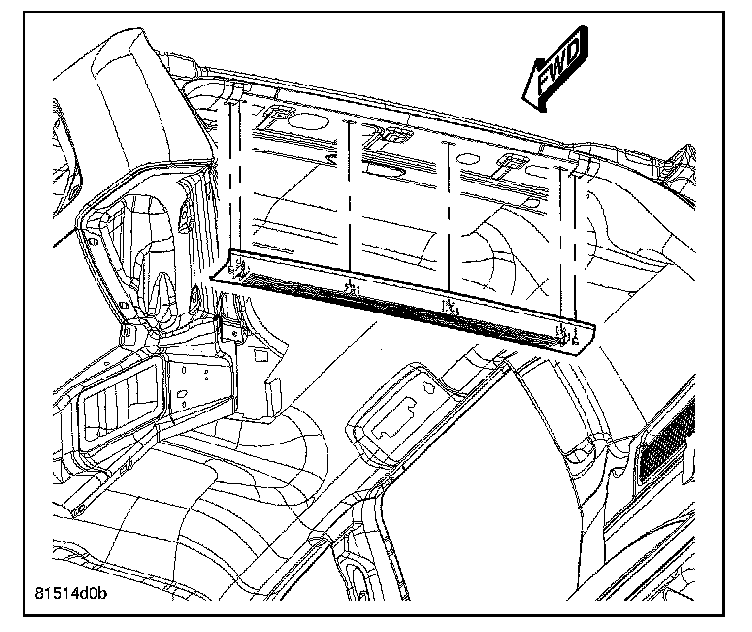

6. Remove the liftgate scuff plate, Refer to Trim Panel.




7. Remove the upper liftgate trim panel, Refer to Trim Panel.




8. Remove the D-pillar trim panel, Refer to Trim Panel.




9. Remove the load floor.

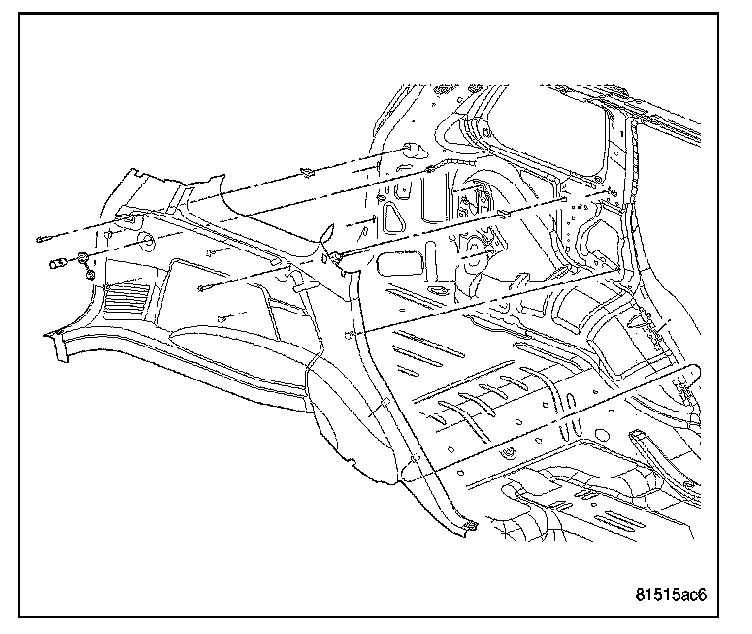

10. Remove the two screws that secure the quarter trim panel to the quarter panel.
11. Using a trim stick C-4755 or equivalent, disengage the retaining tabs that secure the quarter trim panel to the quarter panel.
12. Pull the quarter trim panel away from the quarter panel.
13. If equipped, disconnect the power outlet wire harness connector.
14. Remove the quarter trim panel.

INSTALLATION




1. Position the quarter trim panel in the vehicle.
2. If equipped, connect the wire harness connector to the power outlet.
3. Position the flange on the quarter trim panel into the seal ditch and secure the bottom clip first and then the middle clip.
4. Align the two fastener holes in the quarter trim panel with the two fastener holes in the quarter panel and engage the retaining tabs that secure the quarter trim panel to the quarter panel.
5. Install the two screws that secure the quarter trim panel to the quarter panel.
6. Install the load floor.




7. Install the D-pillar trim panel.




8. Install the upper liftgate trim panel.




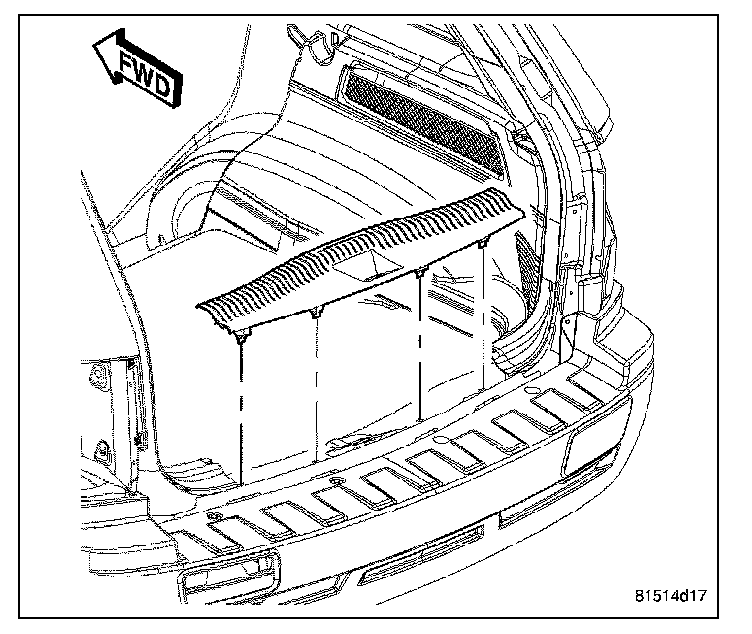

9. Install the liftgate scuff plate, Refer to Trim Panel.

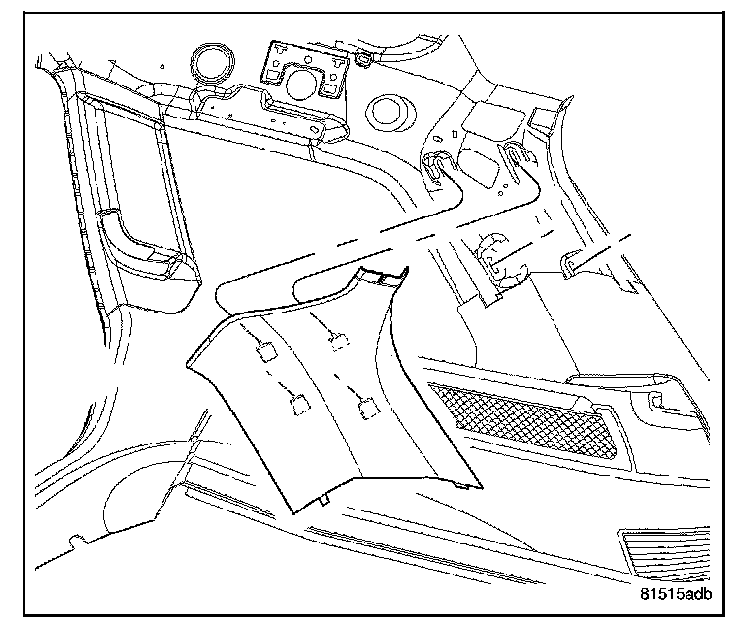

10. Position the locating tabs on the bottom of the upper C-pillar trim panel into the slots in the top of the quarter trim panel.
11. Align the retaining tabs on the upper C-pillar trim panel with the retaining clips in the C-pillar and engage the retaining tabs that secure the trim panel to the C-pillar.

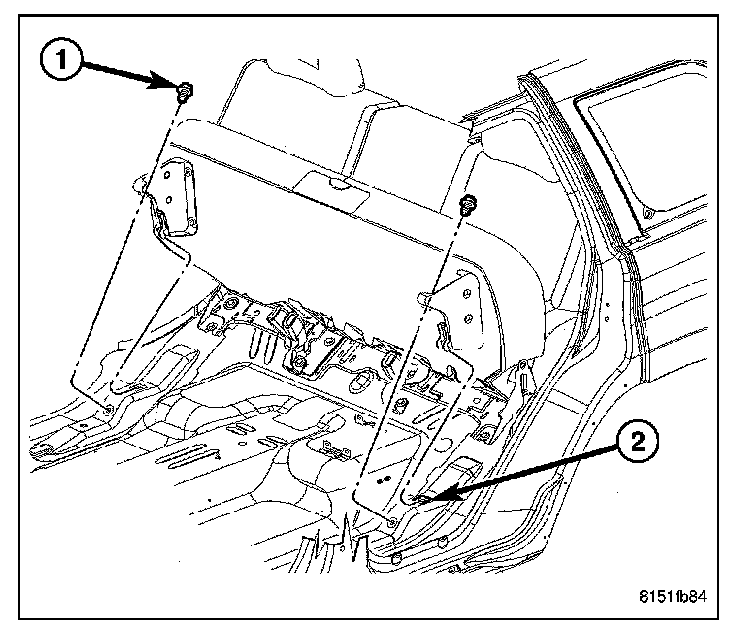

12. Install the rear seat back.

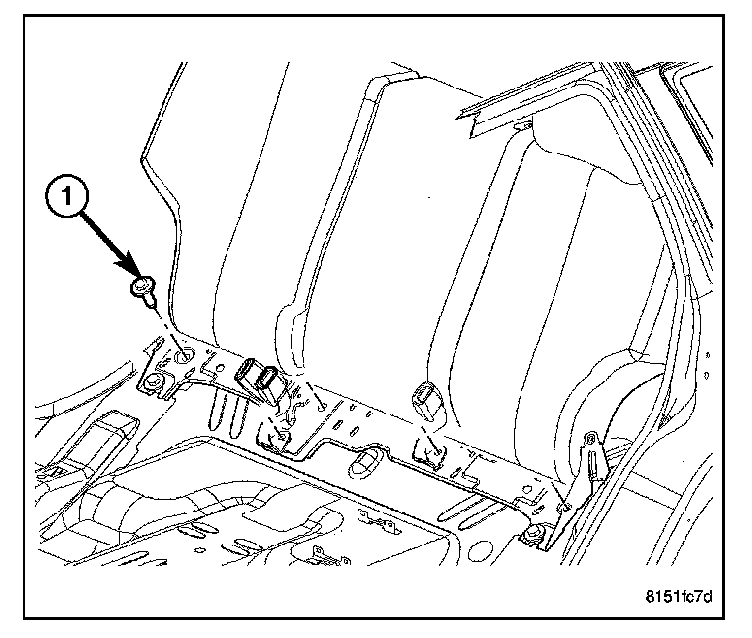

13. Install the rear passenger seat cushion.




14. Install the rear passenger door sill scuff plate.
15. If equipped, install the tonneau cover.
