Sun Visor Support

SUN VISOR SUPPORT

REMOVAL

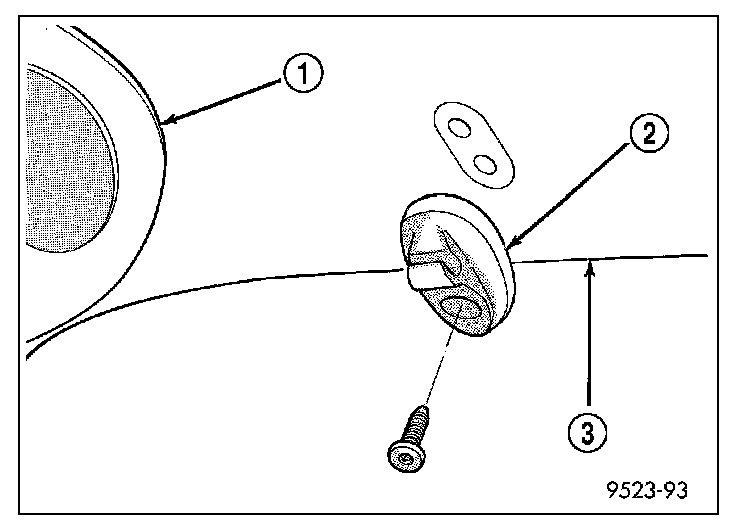

1. Disengage the sun visor (1) from the sun visor support (2).
2. Remove the screw that secures the support to the roof panel and remove the support from the headliner (3).

INSTALLATION

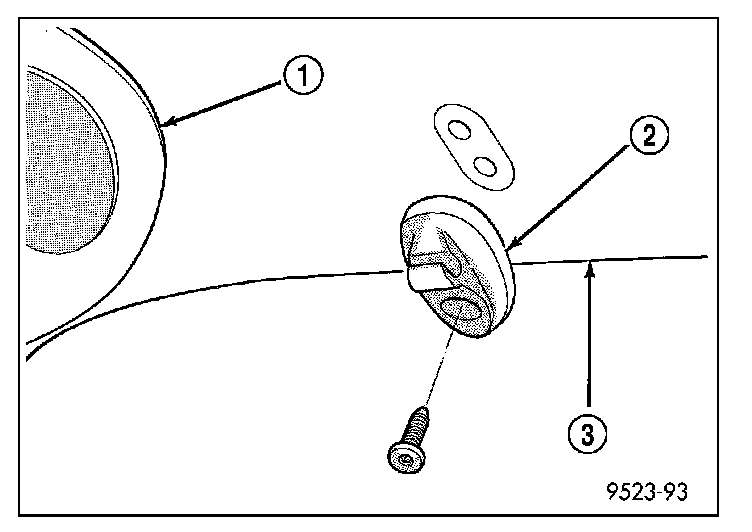

1. Position the sun visor support (2) on the headliner (3) and install the screw that secures the support to the roof panel. Tighten the screw to 2.2 N.m (20 in.lbs.).
2. Engage the sun visor (1) and sun visor support.
