Trunk / Liftgate Latch: Diagrams

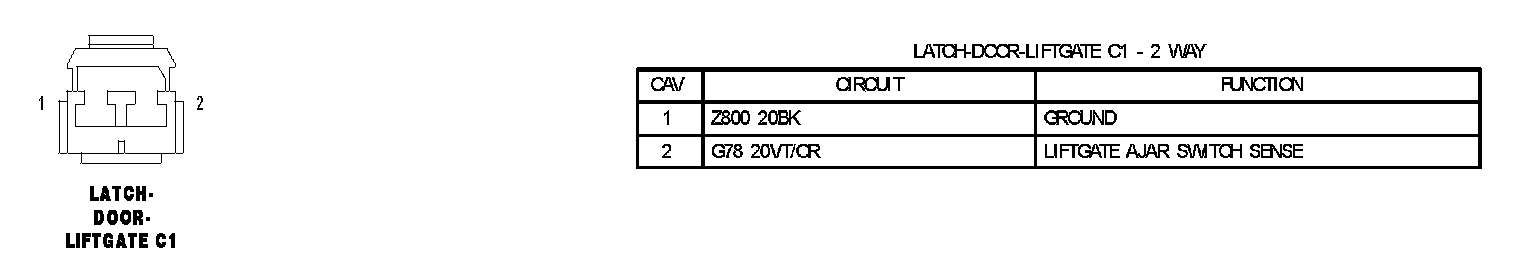

Latch Door Liftgate C1:

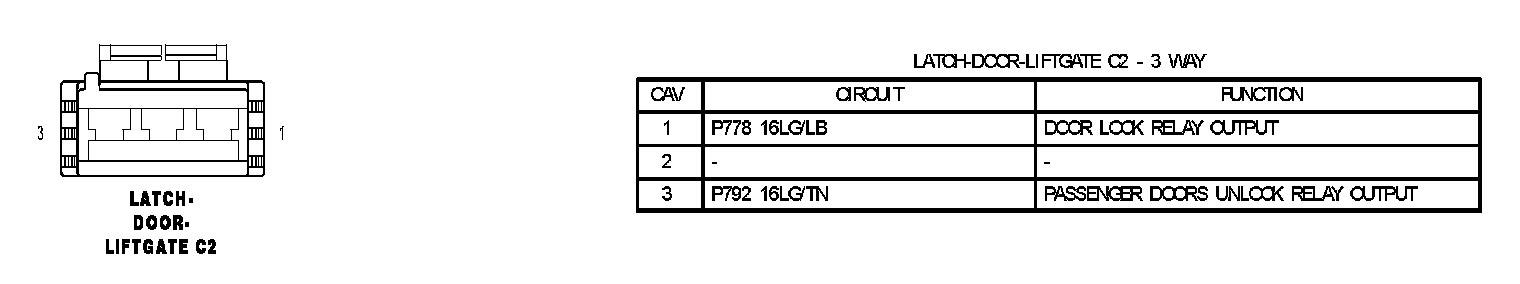

Latch Door Liftgate C2:

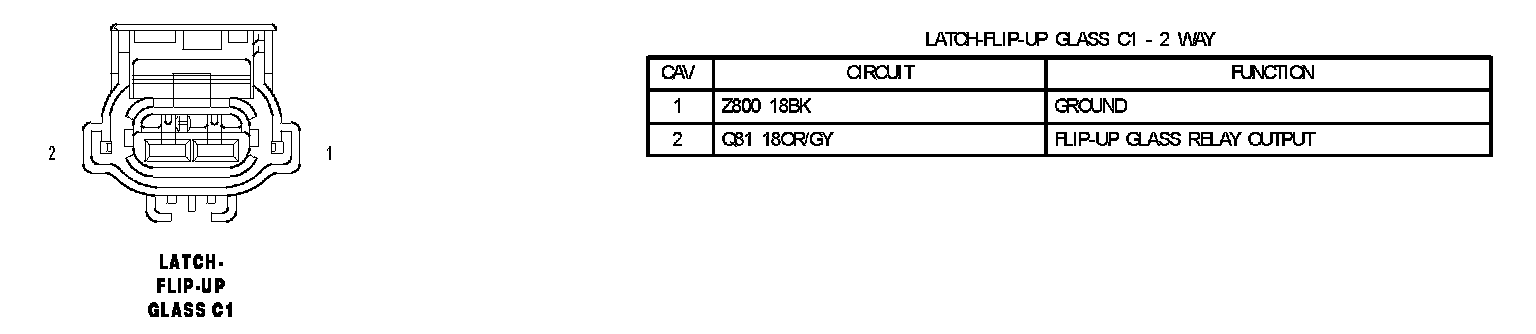

Latch Flip-up Glass C1:

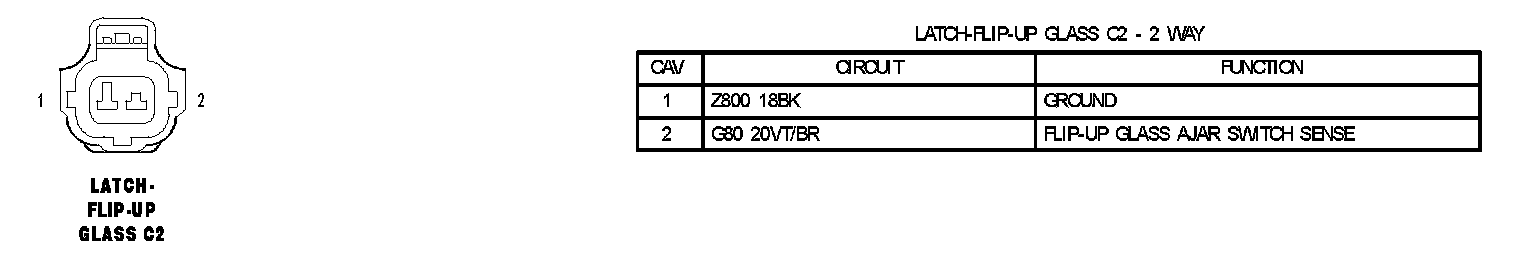

Latch Flip-up Glass C2:
