Liftgate Scuff Plate

LIFTGATE SCUFF PLATE

REMOVAL

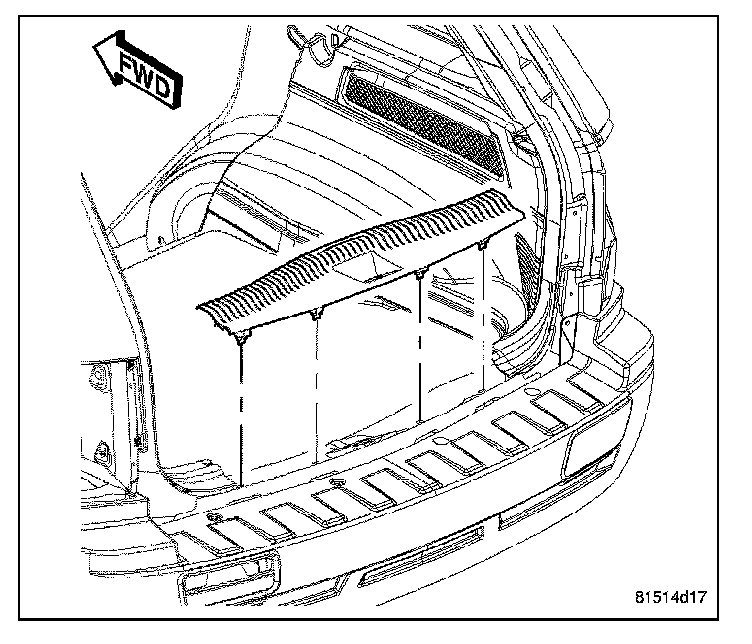

1. Using a trim stick C-4755 or equivalent, disengage the retaining tabs that secure the liftgate scuff plate to the liftgate door sill and remove the scuff plate.

INSTALLATION

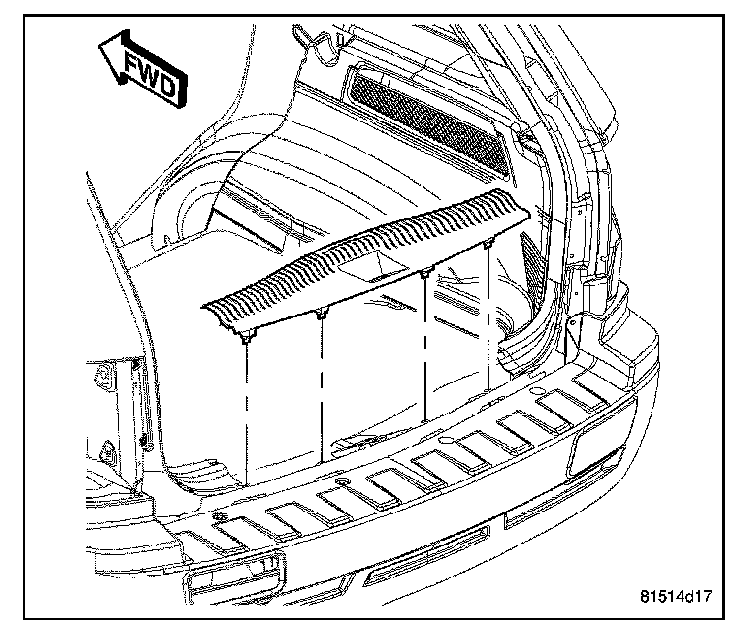

1. Position the liftgate scuff plate to the liftgate door sill and engage the retaining tabs that secure the scuff plate to the door sill.
