Liftgate Opening Upper Trim

LIFTGATE OPENING UPPER TRIM

REMOVAL

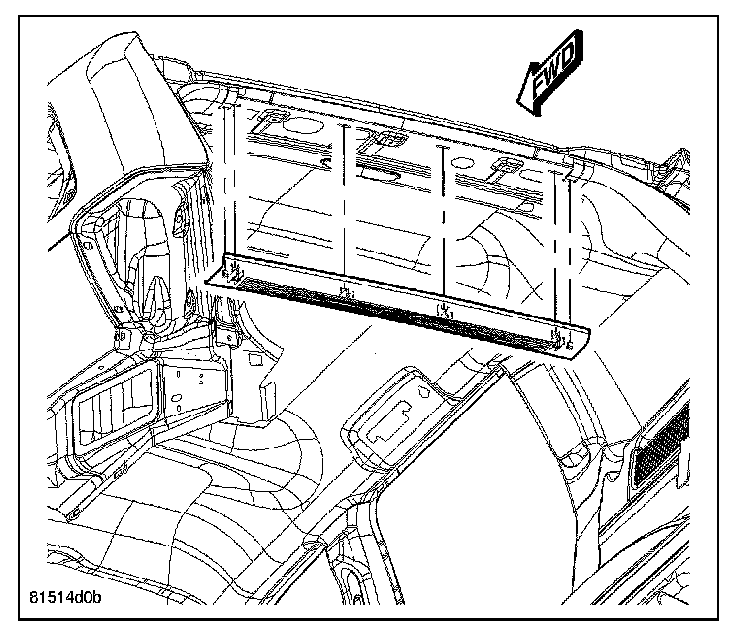

1. Using a trim stick C-4755 or equivalent, disengage the retaining tabs that secure the upper liftgate trim panel to the retaining clips in the liftgate opening and remove the trim panel.

INSTALLATION

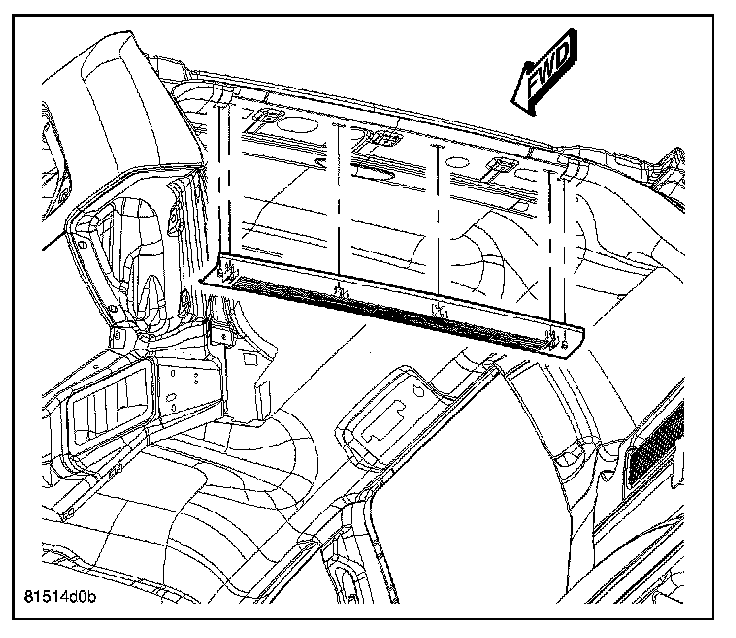

1. Align the retaining tabs on the upper liftgate trim panel with the retaining clips in the liftgate opening and engage the retaining tabs that secure the trim panel to the liftgate opening.
