Parking Assist Control Module: Diagrams

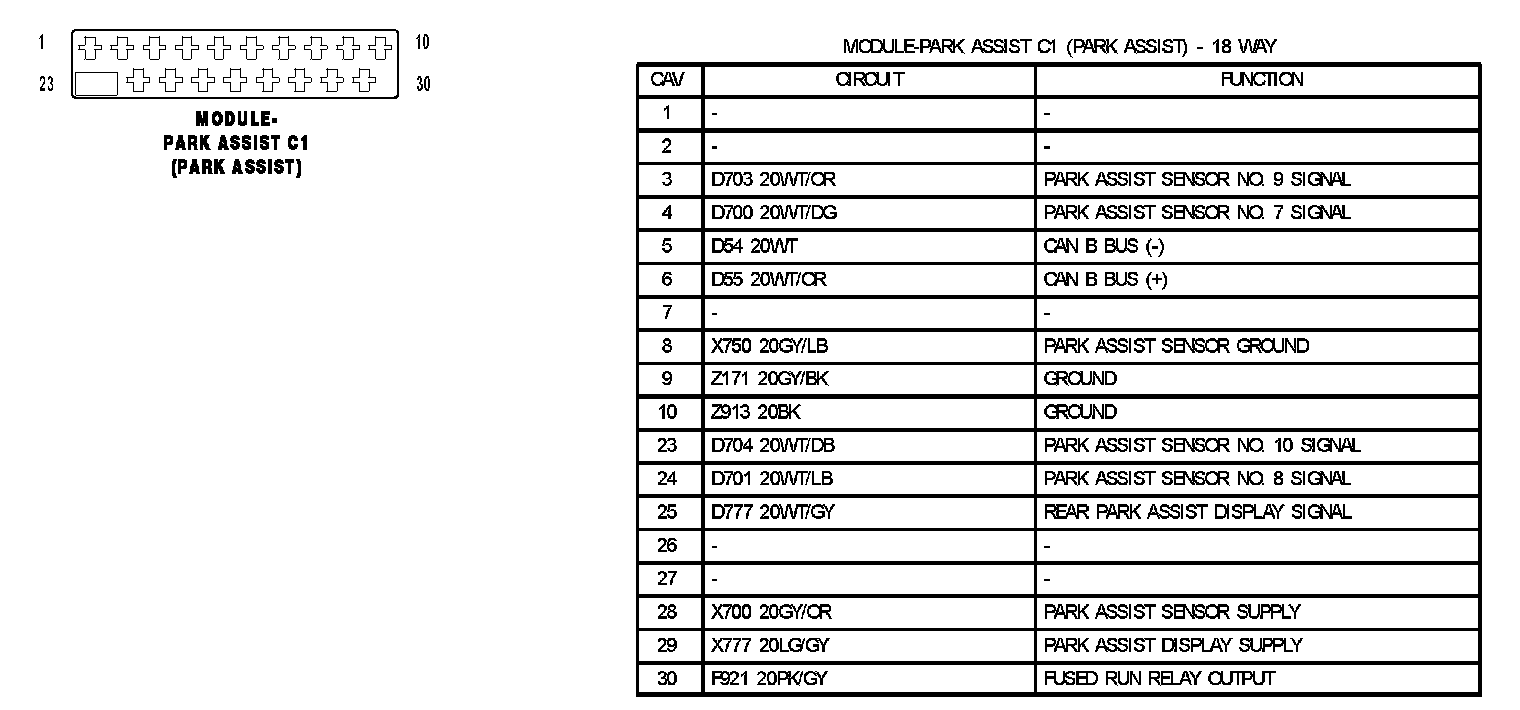

Module Park Assist C1 (Park Assist):

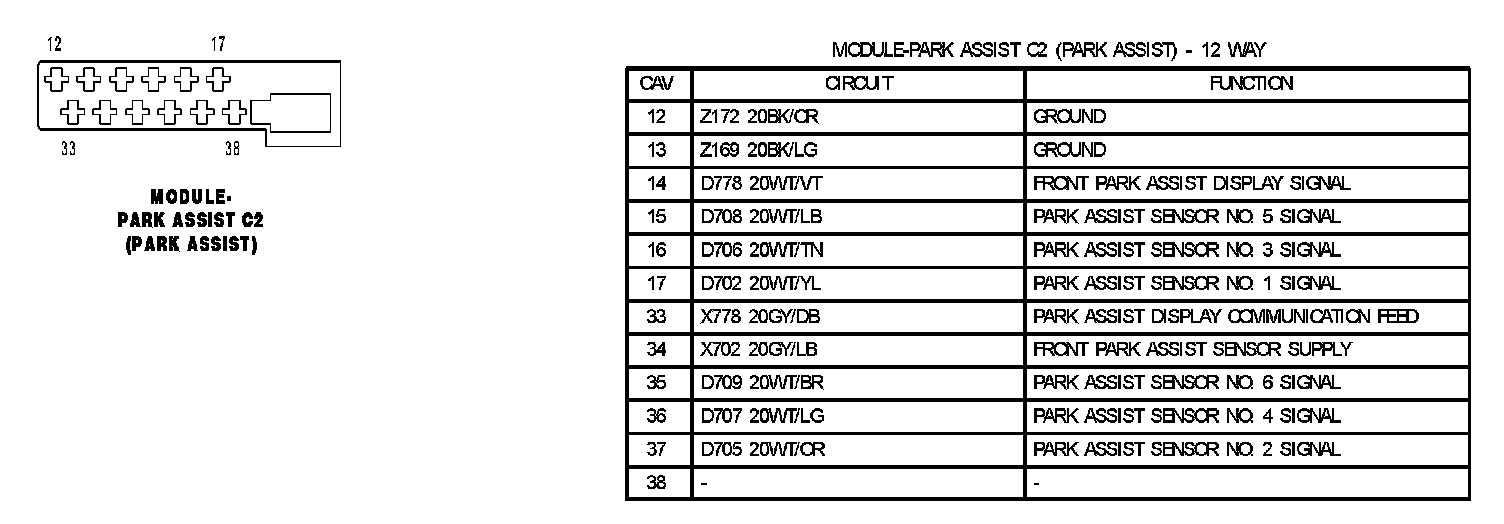

Module Park Assist C2 (Park Assist):
