Transmitter

REMOVAL




1. Disconnect and isolate the battery negative cable.

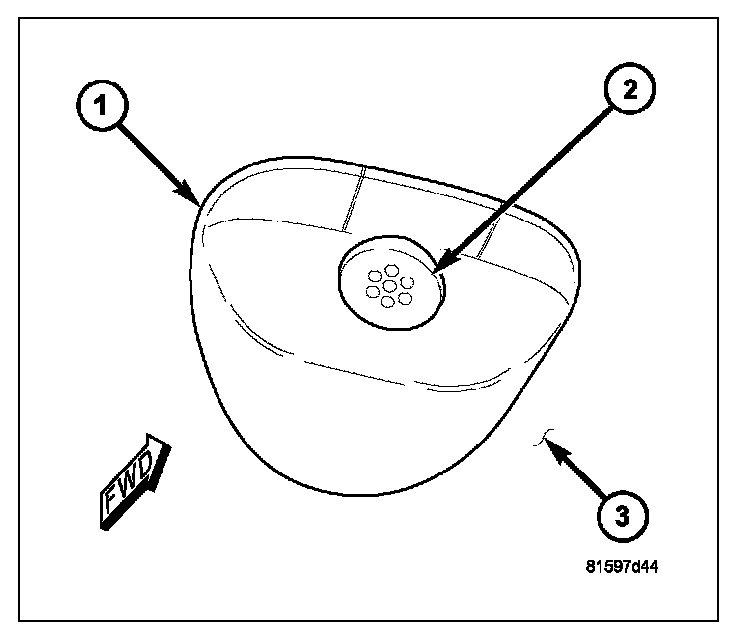

2. Pull the bezel (1) straight down from the headliner (3) to unsnap it from the transducer housing (2) of the intrusion sensor transmitter. Be certain to take the appropriate precautions not to soil or damage the headliner.
3. Remove the trim from the upper liftgate opening.
4. Remove the trim from the right upper D-pillar.

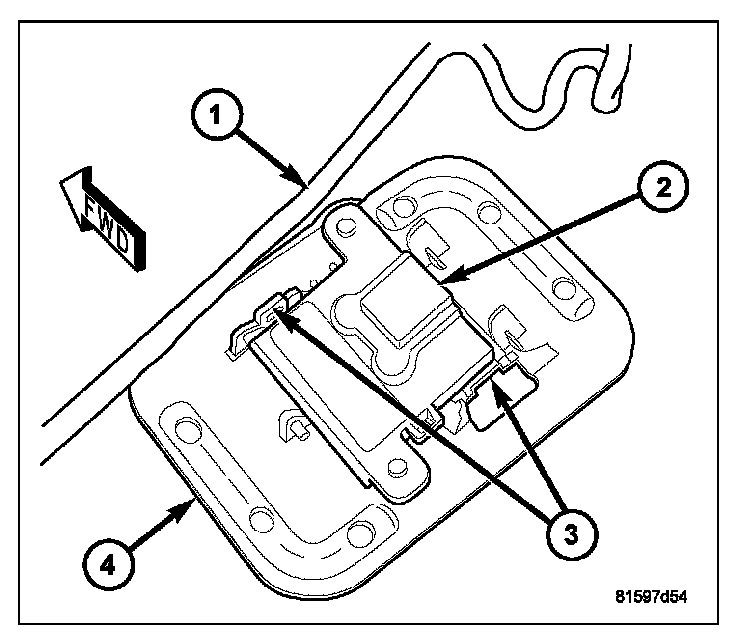

5. Carefully pull down the right rear edge of the headliner (1) from the upper liftgate opening far enough to reach between the headliner and the roof panel to access the transmitter (2) and mounting bracket (4) on the headliner substrate.
6. Disconnect the take out of the overhead wire harness (1) from the connector receptacle on the right side of the transmitter housing.
7. Release the two latch features (3) of the mounting bracket and disengage the transmitter from the locating pins of the bracket.
8. Remove the transmitter from between the headliner and the roof panel.

INSTALLATION

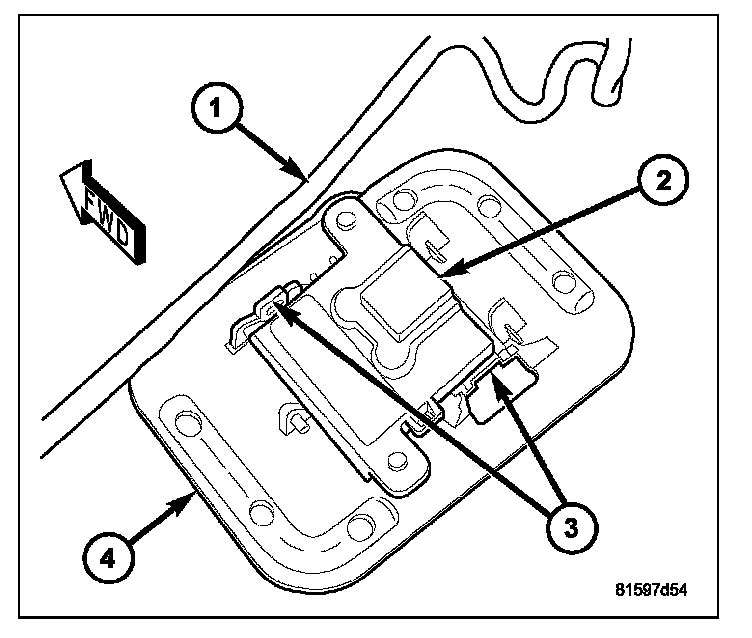

1. Carefully pull down the right rear edge of the headliner from the upper liftgate opening far enough to reach between the headliner and the roof panel to position the intrusion sensor transmitter (2) over the locating pins of the mounting bracket (4) on the headliner substrate.
2. Press the transmitter down until the two latch features (3) of the mounting bracket are fully engaged.
3. Reconnect the take out of the overhead wire harness (1) to the connector receptacle on the right side of the transmitter housing.
4. Reinstall the trim onto the right upper D-pillar.
5. Reinstall the trim onto the upper liftgate opening.




6. Position the bezel (1) over the transducer housing (2) of the intrusion sensor transmitter and press it straight upward until it snaps into place against the headliner (3). Be certain to take the appropriate precautions not to soil or damage the headliner.
7. Reconnect the battery negative cable.
