Shift Interlock: Service and Repair

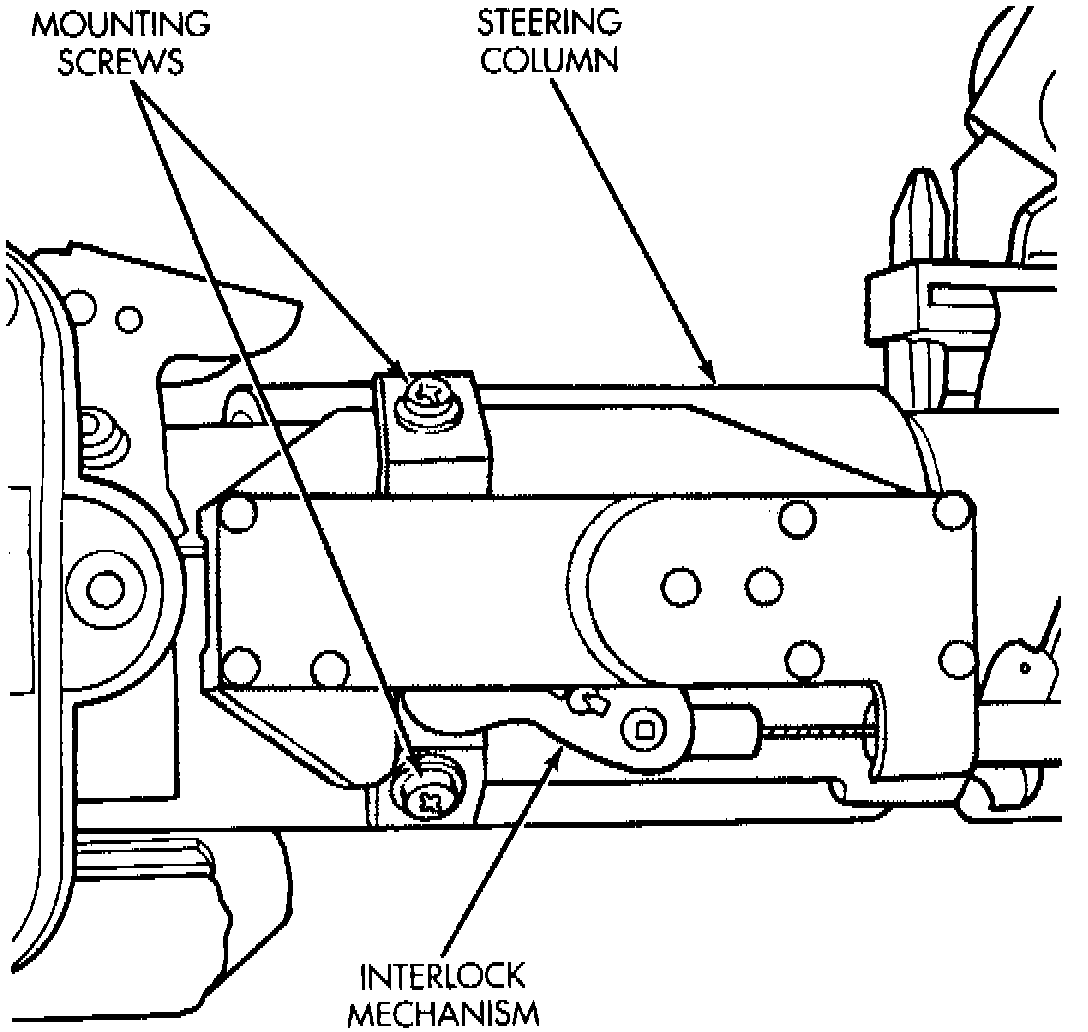

Fig. 14 Brake Transmission Shift Interlock Mechanism Replacement:

1. Lower steering column.
2. Remove mounting screws, then unsnap brake transmission interlock mechanism from column, Fig. 14.
3. Reverse procedure to install.
