Daytime Running Lamp Control Unit: Service and Repair

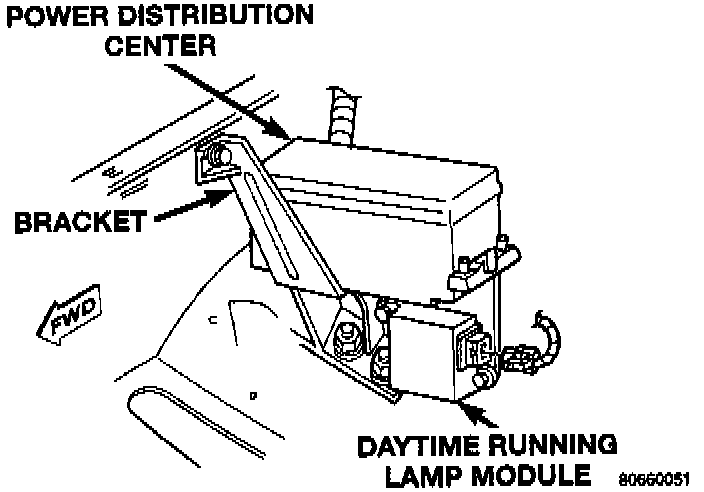

Removal

1. Open hood.
2. Disconnect electrical connector from module.






3. Remove screws holding module to PDC bracket.
4. Separate module from bracket.

Installation

1. Reverse the removal procedures.
