Installation

FRONT
1. Install anti-rattle clip on trailing edge of anchor plate, ensuring split end of clip faces away from rotor.
2. Install inboard, then the outboard pads while holding anti-rattle clip.
3. Install caliper as outlined under Brake Caliper/Service and Repair.

REAR
1. Using wire brush, clean brake pad to caliper mounting bracket contact surfaces.
2. Position brake pads in caliper, then position caliper over rotor and into mounting bracket.

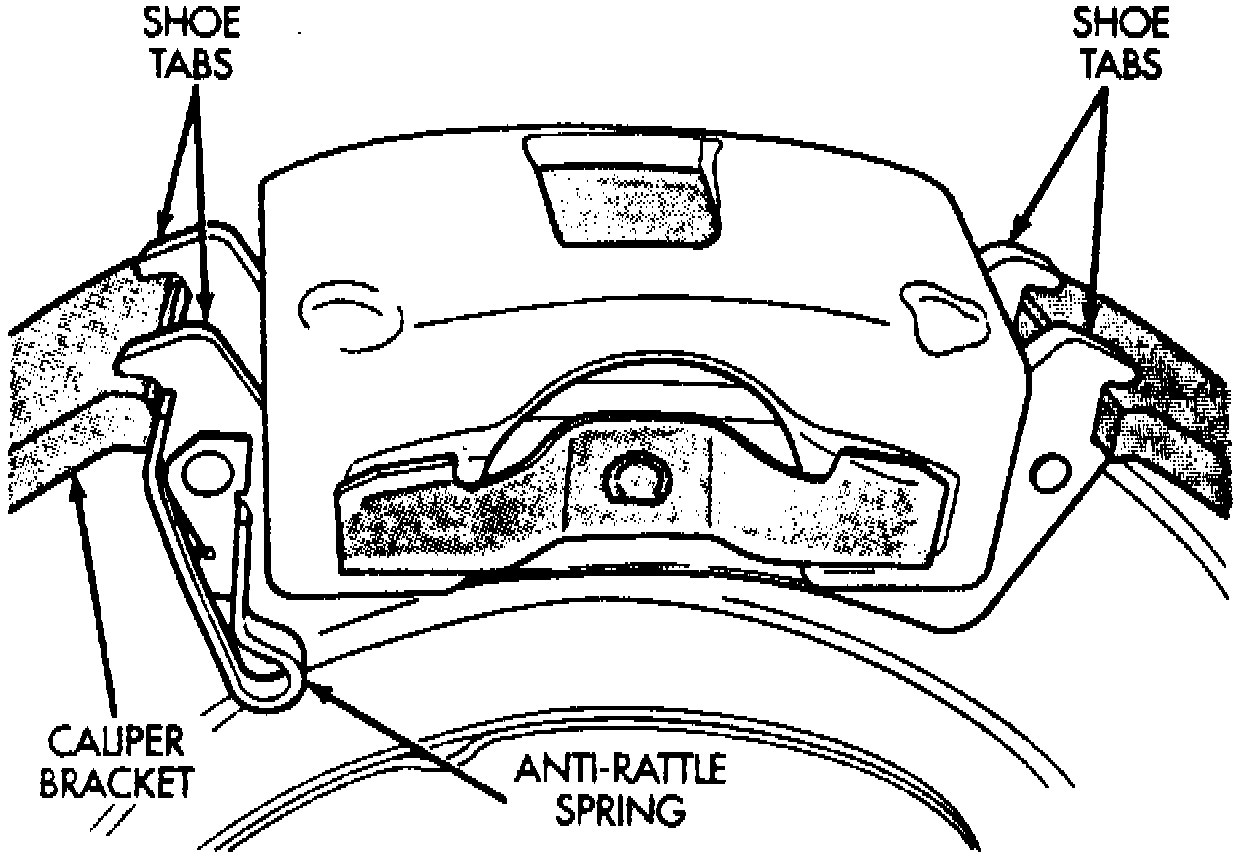

Fig. 7 Rear Brake Pad Installed Position:

3. Ensure brake pads are positioned as shown, then complete caliper installation as outlined under Brake Caliper/Service and Repair.
