Outside Rear View Mirror

REMOVAL
1. Remove door trim panel.
2. Disengage power mirror connector from trim panel.
3. If equipped, disengage two-way electrochromic mirror connector from wiring harness.
4. Remove clips attaching mirror harness to door inner panel.
5. Remove mirror flag seal.

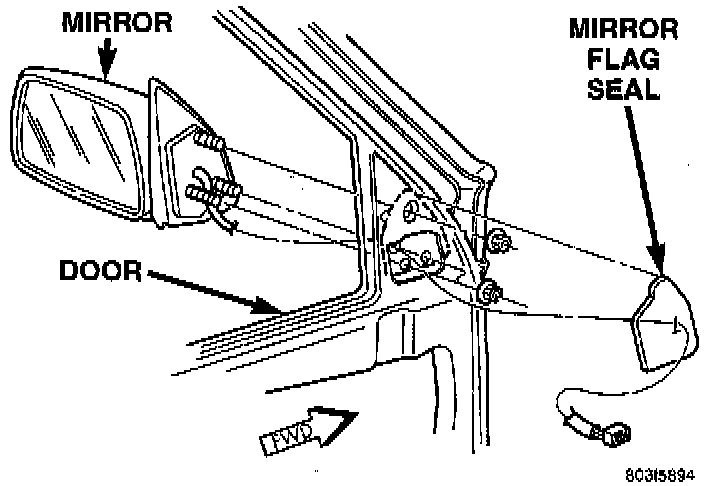

Side View Mirror:

6. Remove mirror retaining nuts.
7. Remove mirror from door.

INSTALLATION
1. Position mirror on door. Verify that the 0-ring seal and gasket seal are properly positioned.
2. Install mirror retaining nuts.
3. Install mirror flag seal.
4. Install clips attaching mirror harness to door inner panel.
5. If equipped, engage two-way electrochromic mirror connector to wiring harness.
6. Engage power mirror connector at trim panel.
7. Install door trim panel.
