Replacement

1. Disconnect battery ground cable, then remove wiper arm assemblies.
2. Remove cowl trim panel attaching screws and the trim panel.

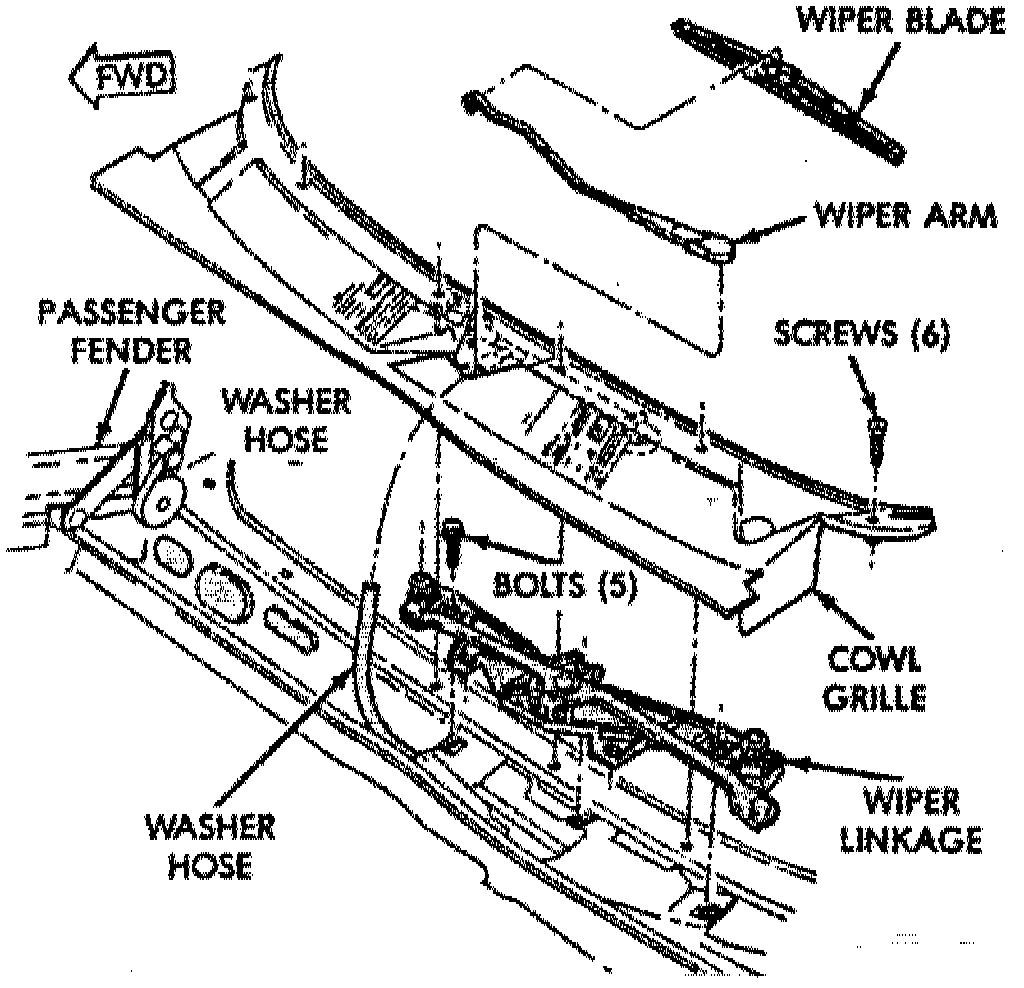

Fig.20 Wiper Linkage Removal:

3. Disconnect washer hose, then remove wiper linkage assembly.

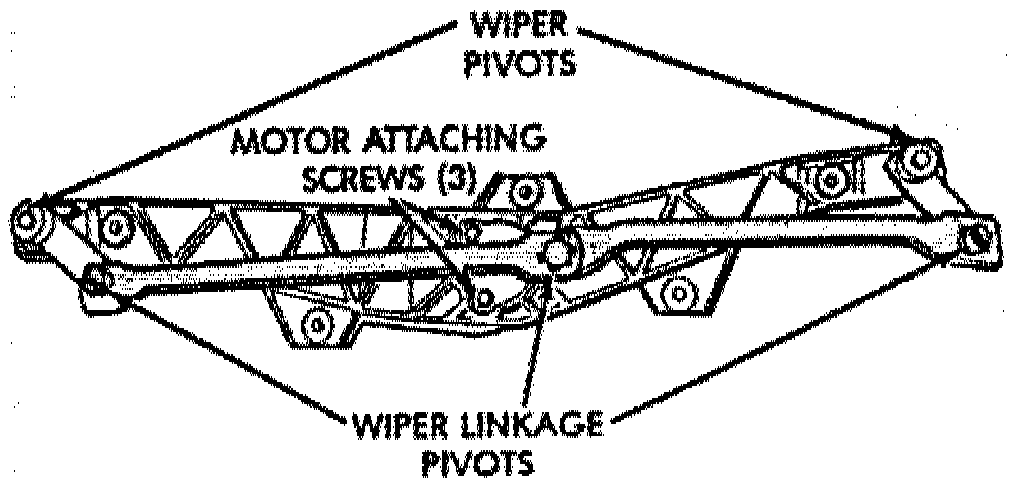

Fig.21 Wiper Motor Removal:

4. Turn linkage over and remove crank arm from motor, then remove motor.
5. Reverse procedure to install.
