Cruise Control - Intermittently Inoperative

NO: 08-41-96

GROUP: Electrical

DATE: Nov. 15, 1996

SUBJECT:
Inoperative Speed Control

MODELS:

1996 (ZJ) Grand Cherokee
1996 (ZG) Grand Cherokee (Overseas Markets)

SYMPTOM/CONDITION:

Speed control may be inoperative, intermittently inoperative or may drop out while engaged.

Discussion:

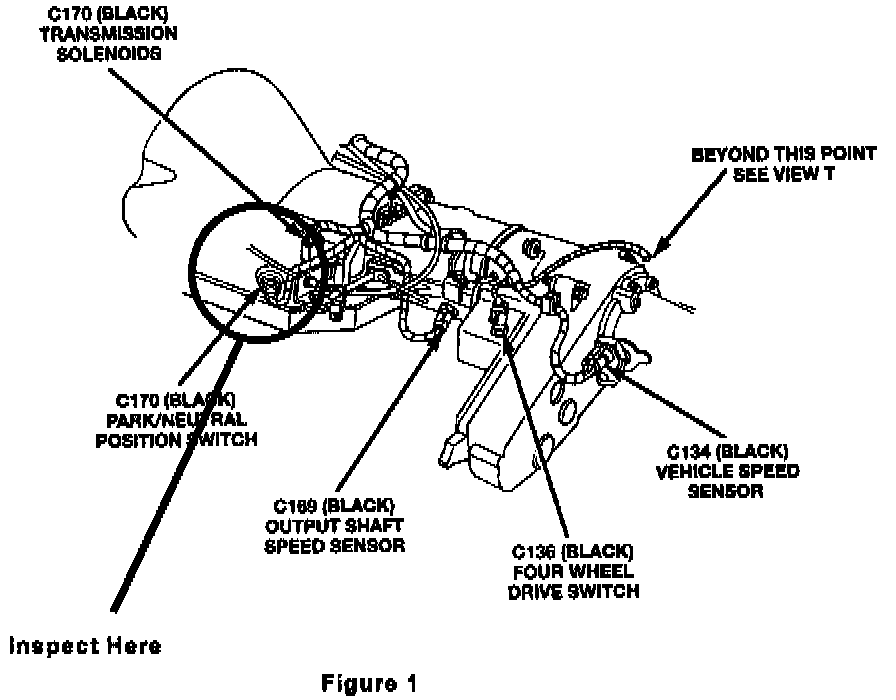

If speed control problems are encountered involving any of the symptoms described above, inspect the park, neutral position switch harness at the throttle cable bracket on the transmission (see Figure 1). If any chafing is present that could indicate a short in the wires feeding the, park, neutral position switch, repair the damage and route the harness away from the bracket.

POLICY: Information only
