Connector Views
Connector Views

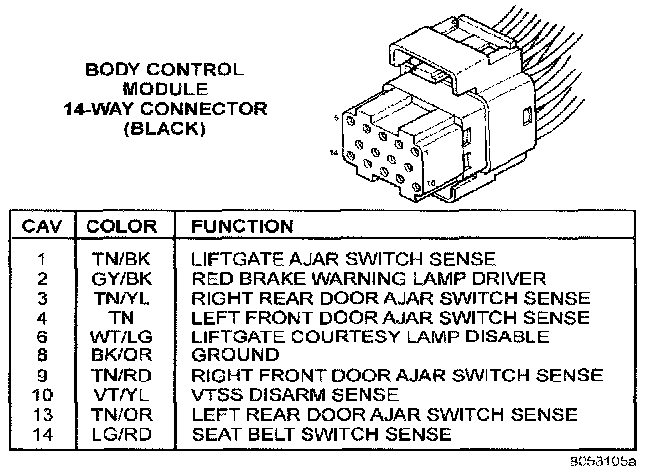

Body Control Module 14-Way Connector (Black):

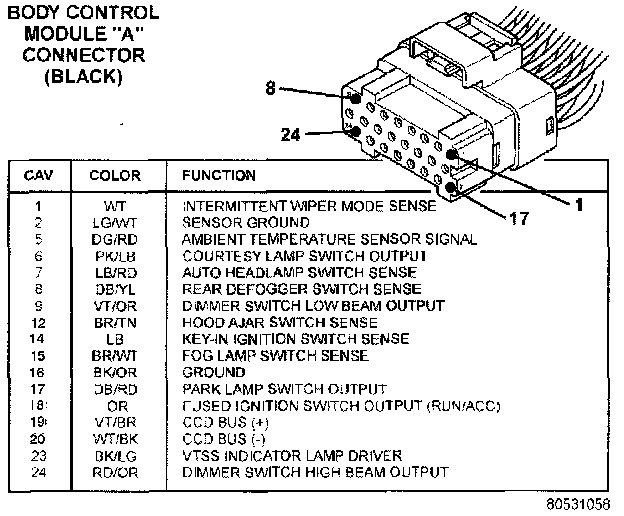

Body Control Module "A" Connector (Black):

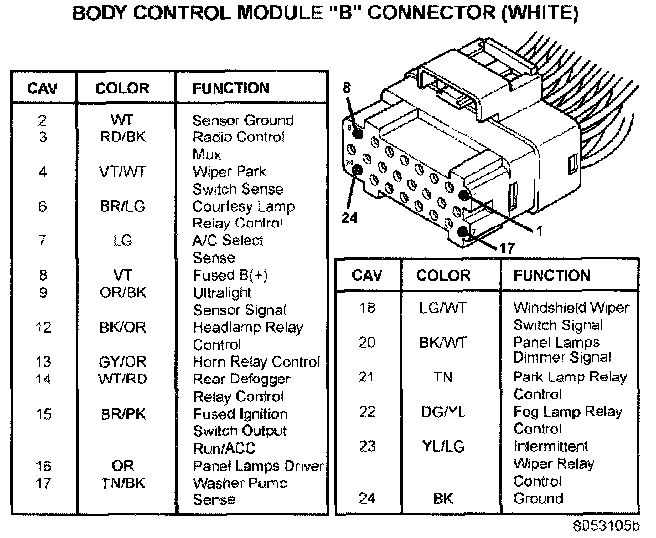

Body Control Module "B" Connector (White):
