Home >> Jeep Truck >> 1996 >> Grand Cherokee 2WD L6-242 4.0L VIN S MFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Body Control Module >> Diagrams >> Electrical Diagrams >> Vehicle Information Center (VIC)

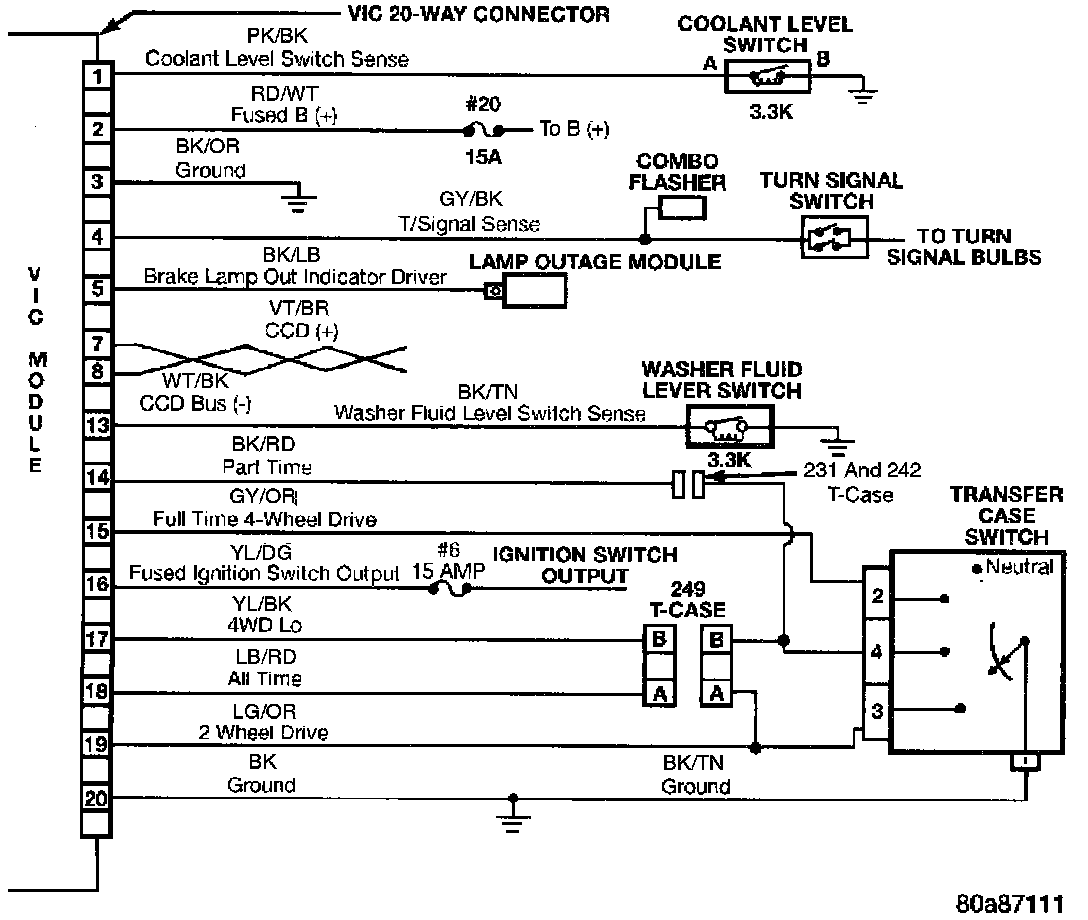

Vehicle Information Center (VIC)

VIC Module:
