Connector Views

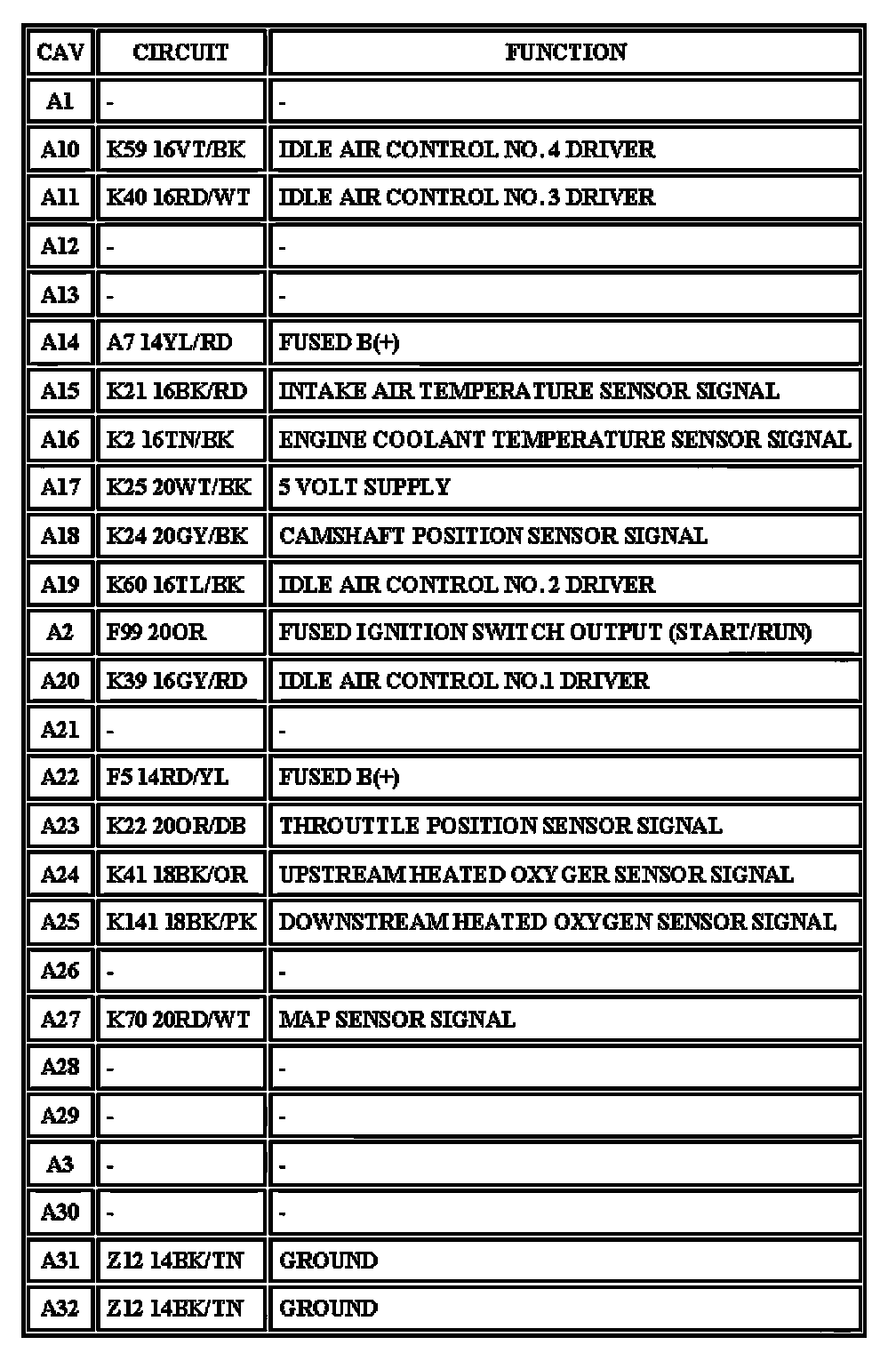

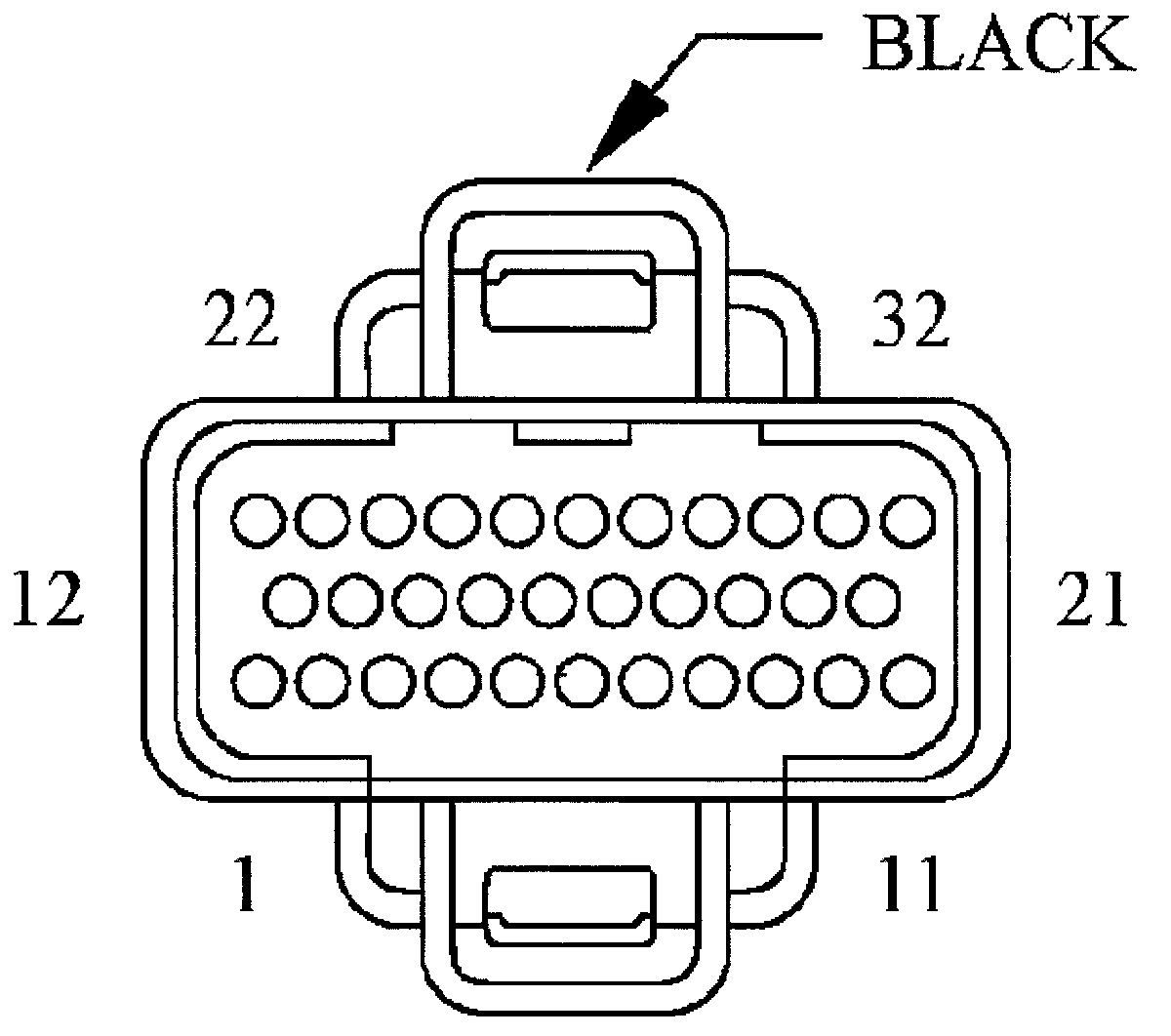

Powertrain Control Module - C1

Black:

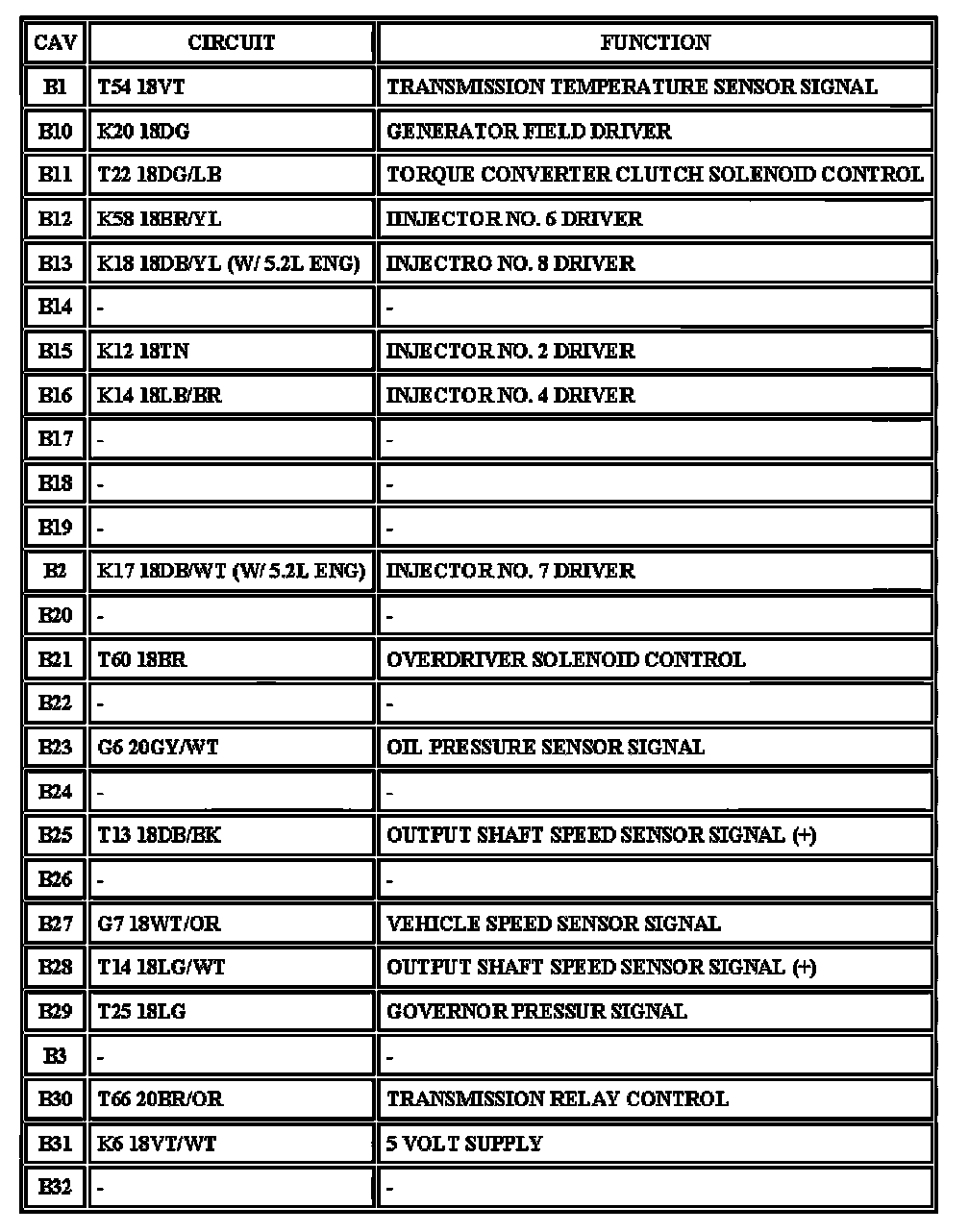

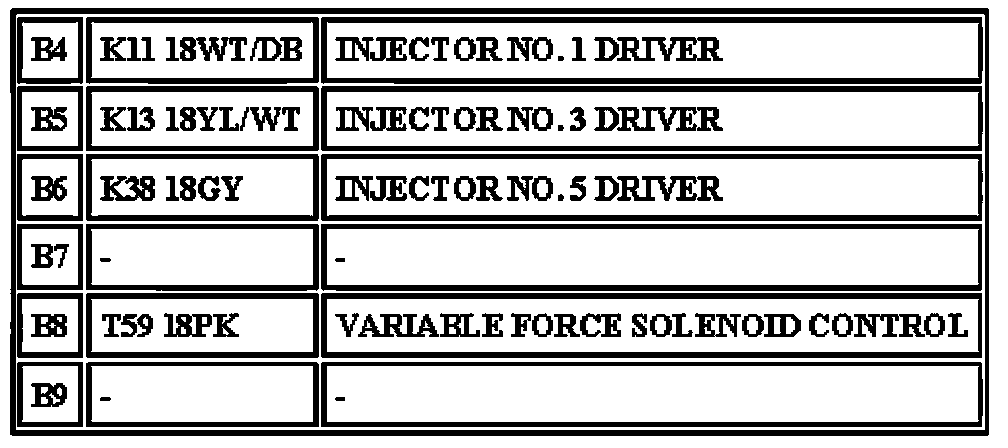

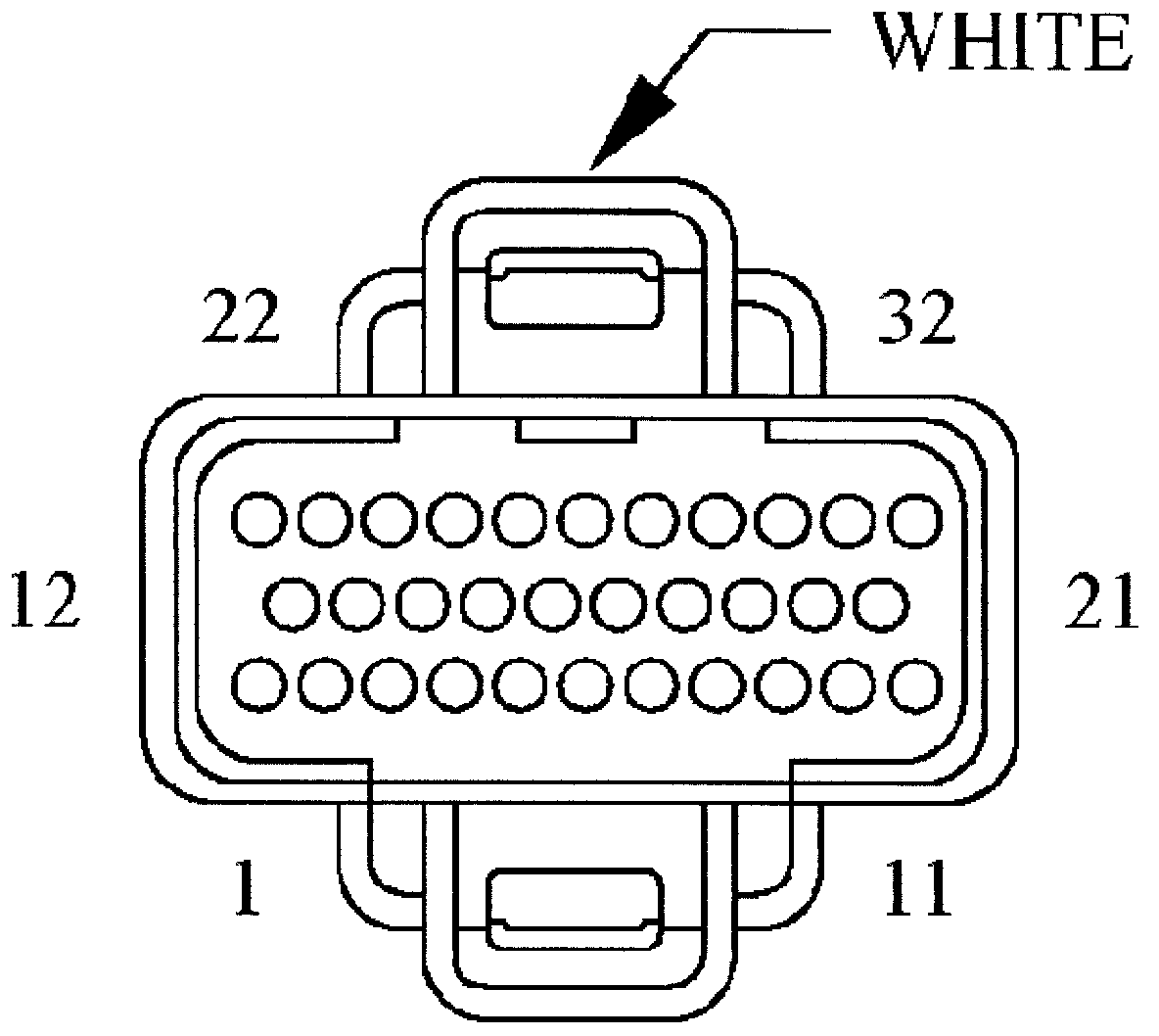

Powertrain Control Module - C2

White:

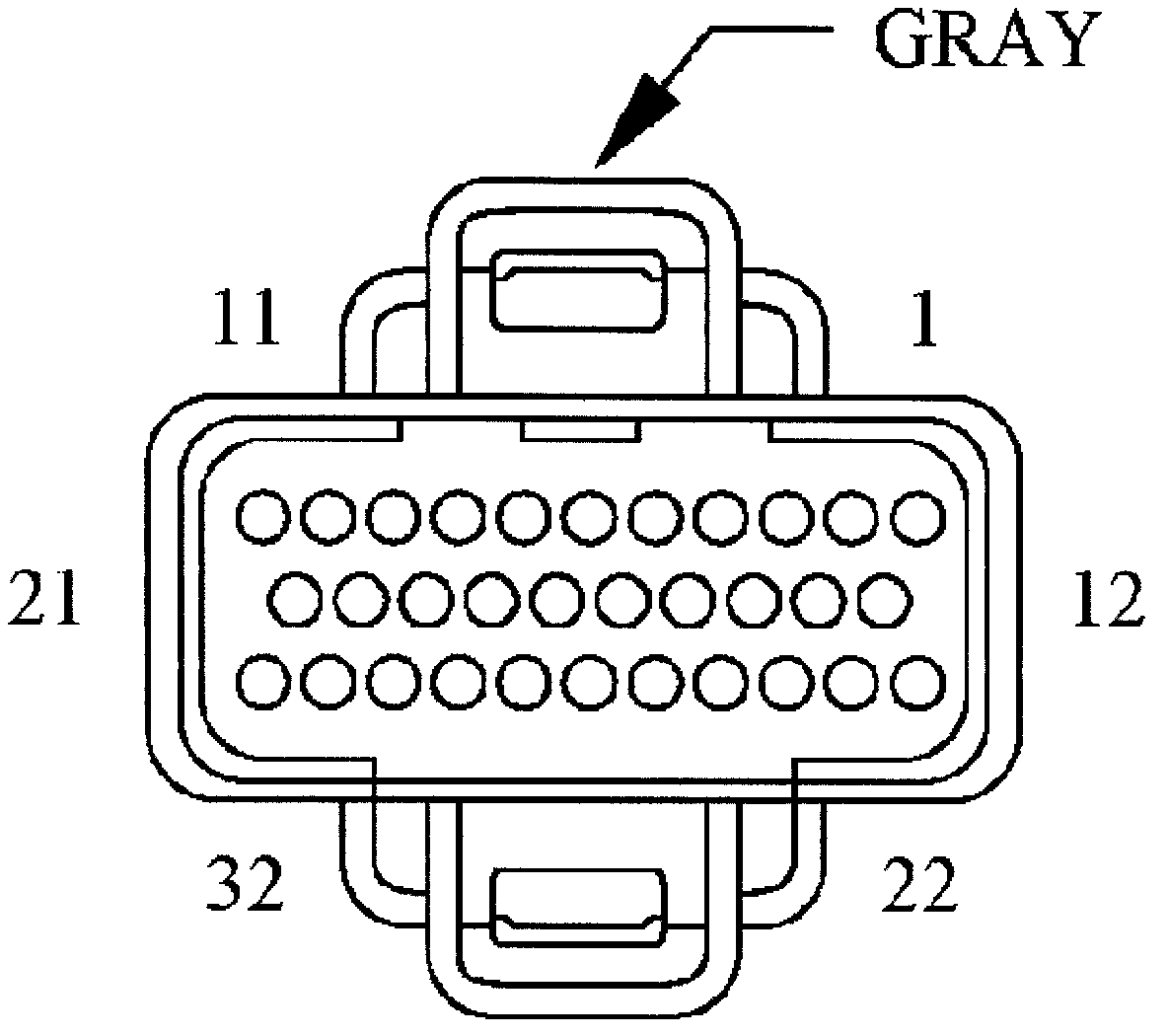

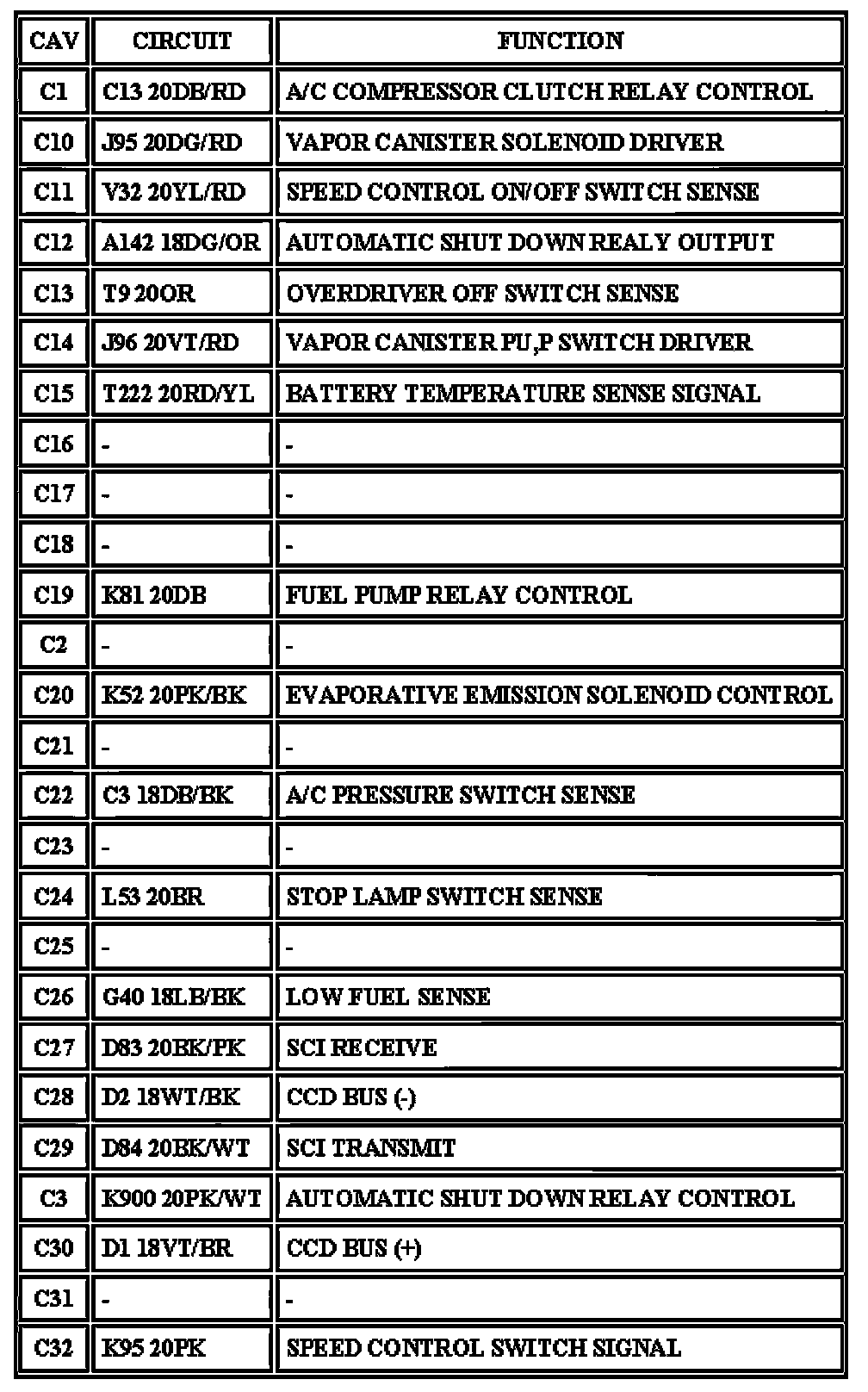

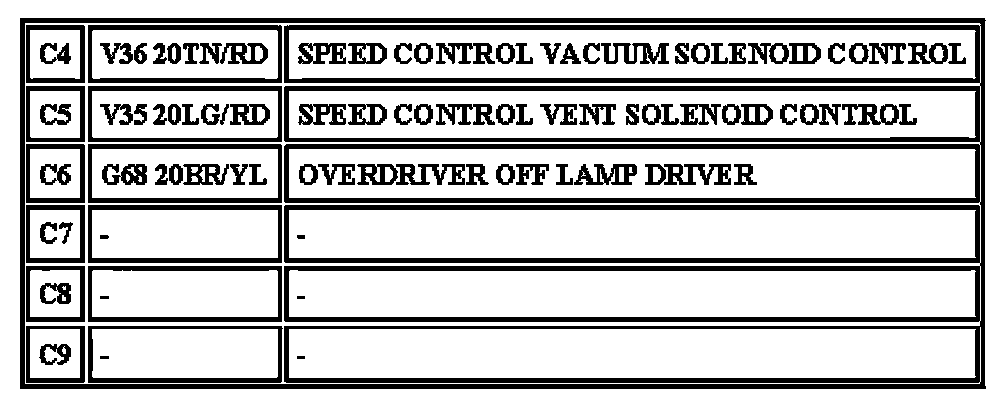

Powertrain Control Module - C3

Gray:
