Removal

1. Remove the heater-A/C unit from the vehicle. Housing Assembly HVAC : Service and Repair : Heater-A/C Unit Heater - A/C Housing Removal and Installation
2. Turn the heater-A/C unit upside down.

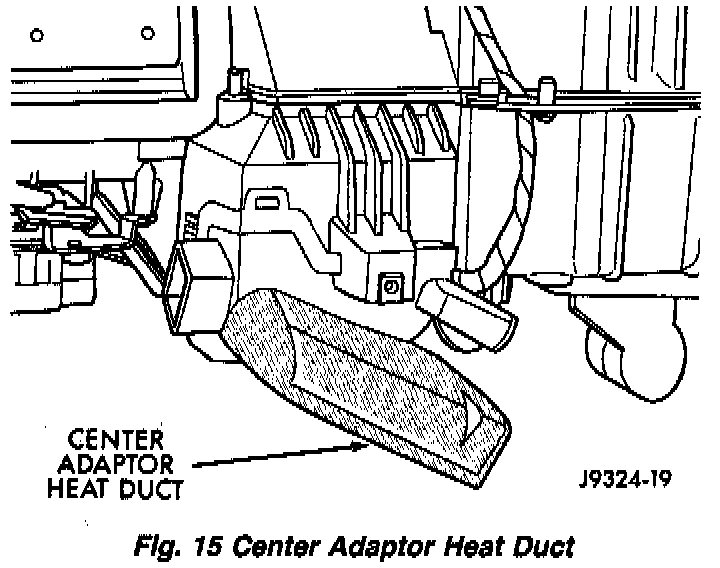

Fig.15 Center Adaptor Heat Duct:

3. Remove the retaining screws holding the two halves together. Remove the center adaptor heat duct and remove the screw.

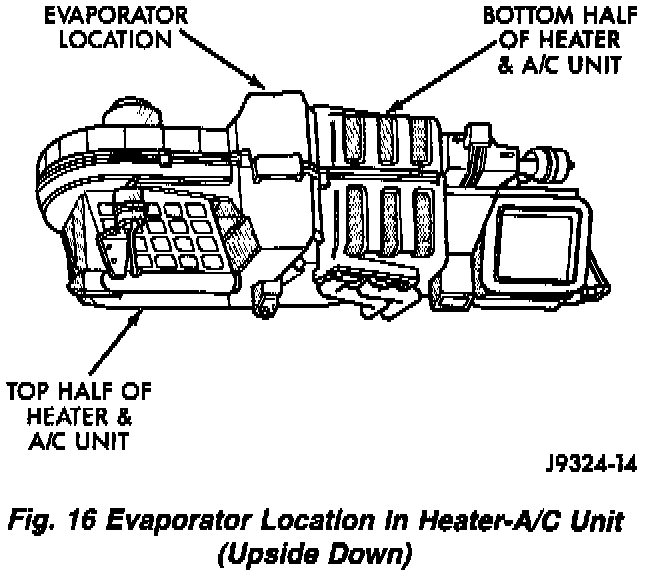

Fig.16 Evaporator Location In Heater-A/C Unit (Upside Down):

4. Carefully turn the heater-A/C unit over. Remove the top half of the unit.
5. Remove the evaporator out of the unit.
