Jeep Truck
>>
1996
>>
Grand Cherokee 2WD L6-242 4.0L VIN S MFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Connector Views
>>

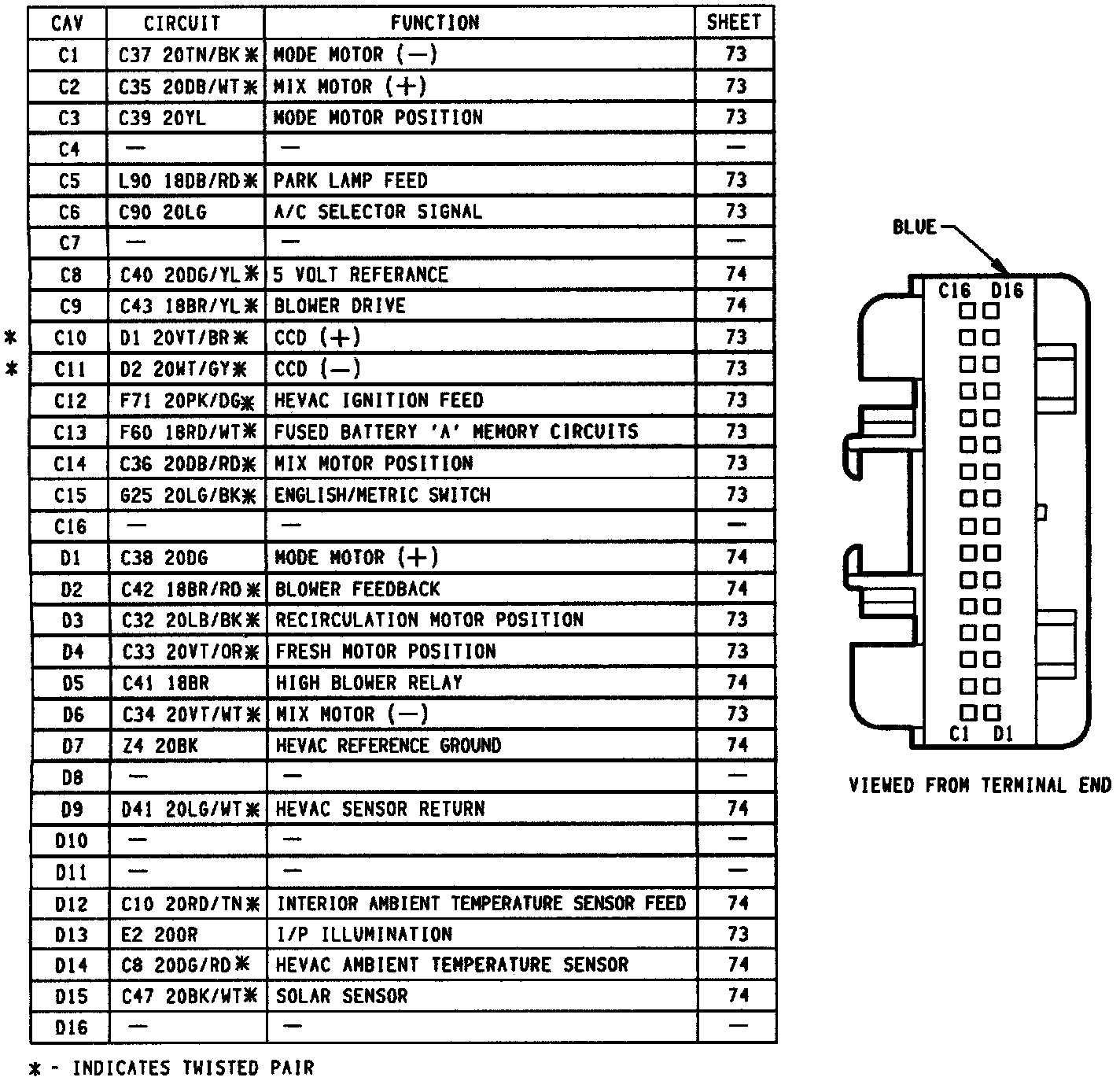

HEVAC Module Connector
HEVAC Module Connector
HEVAC Module Connector:
