Jeep Truck
>>
1996
>>
Grand Cherokee 2WD L6-242 4.0L VIN S MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
Power Window Control Module

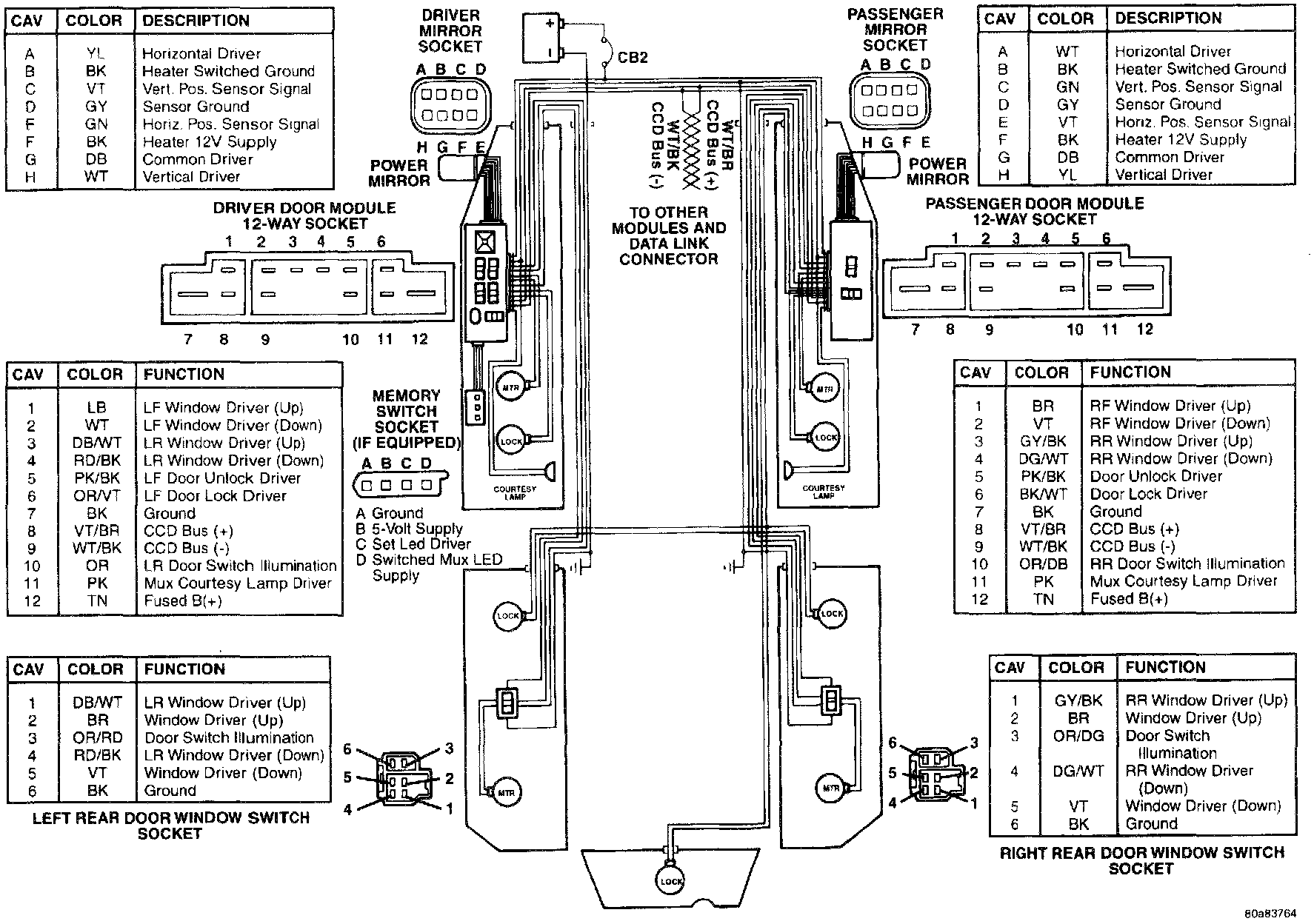

Power Window Control Module
Door Modules:
Driver Door Module (Power Windows):
Passenger Door Module (Power Windows):
