Jeep Truck
>>
1996
>>
Grand Cherokee 2WD L6-242 4.0L VIN S MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Sunroof / Moonroof Module
Sunroof / Moonroof Module

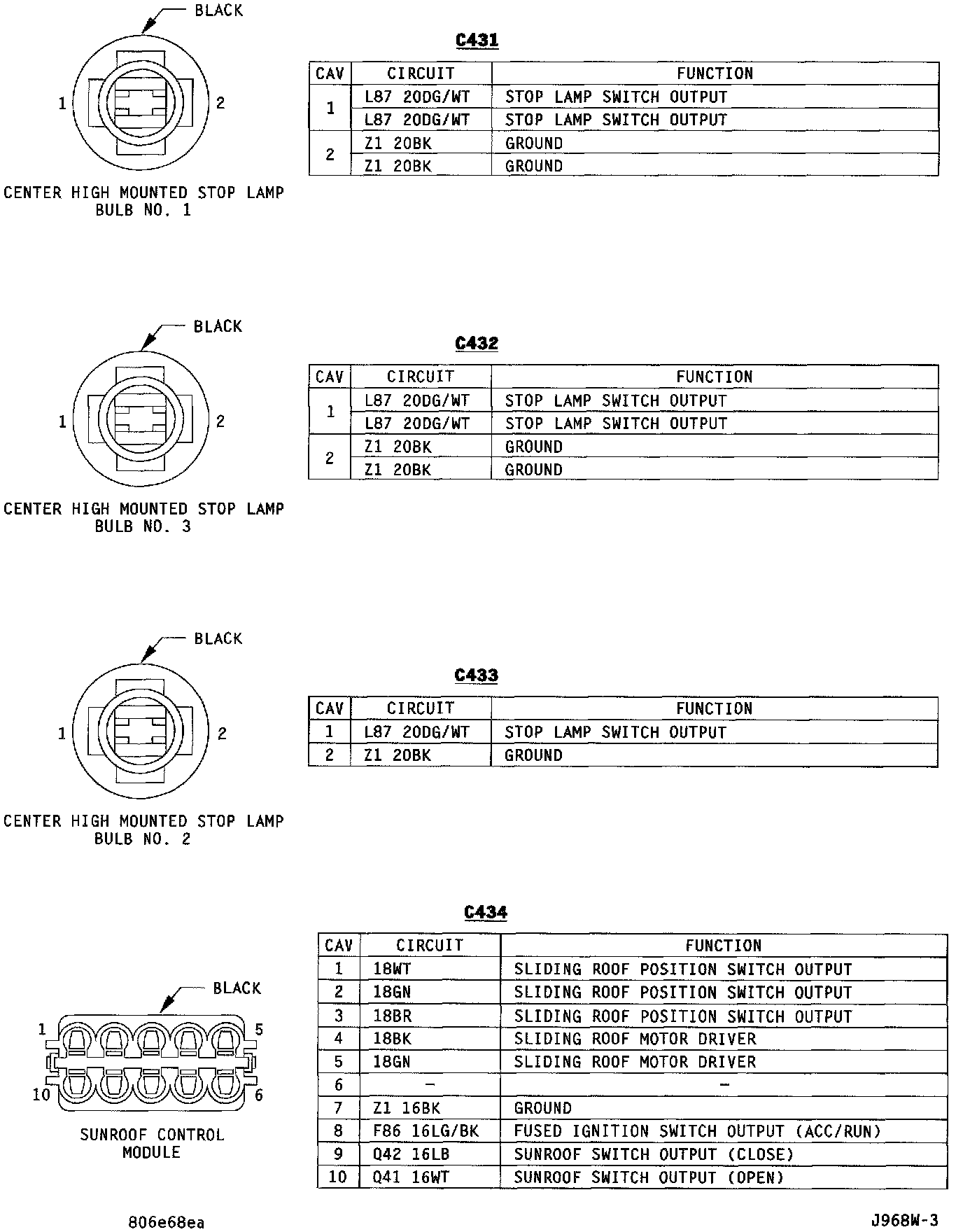

Connector Pin Outs (Part 70 Of 76):
The sunroof control module connector is C434.
