Trunk/Liftgate Sensor/Switch (For Alarm): Service and Repair

1. Disconnect and isolate the battery negative cable.

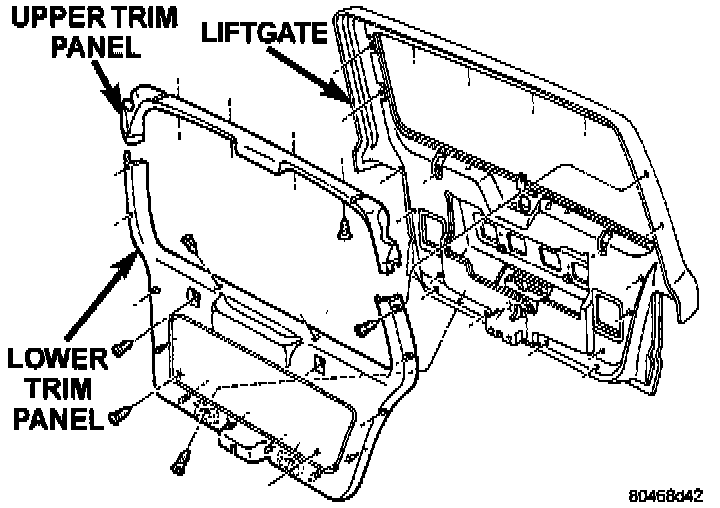

2. Remove the screws securing the liftgate lower trim panel to the liftgate.
3. Using a wide flat-bladed tool such as a trim stick, pry the trim panel away from the liftgate around the perimeter and remove the trim panel.

NOTE: To aid in the removal of the trim panel, start at the bottom of the panel.

Liftgate Ajar Switch:

4. Remove the two nuts securing the liftglass latch to the liftgate inner panel.
5. Unplug the wiring connectors for the liftglass latch solenoid and the liftglass ajar switch.
6. Remove the liftglass latch from the liftgate.
7. Reverse the removal procedures to install. Tighten the latch mounting nuts to 11 N.m (100 in. lbs.).
