Blower Motor: Service and Repair

4.OL ENGINE

(1) Remove the washer fluid tank.

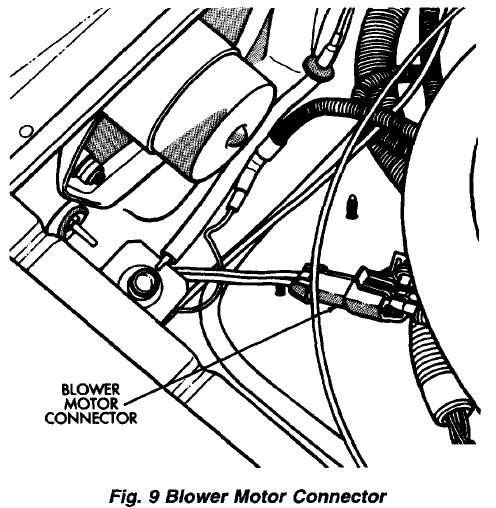

(2) Disconnect the blower motor wires (Fig. 9)

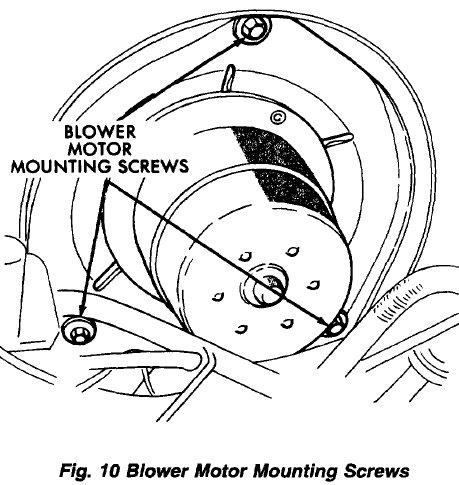

(3) Remove the blower motor mounting bolts (Fig. 10).
(4) Remove the blower motor and fan assembly.

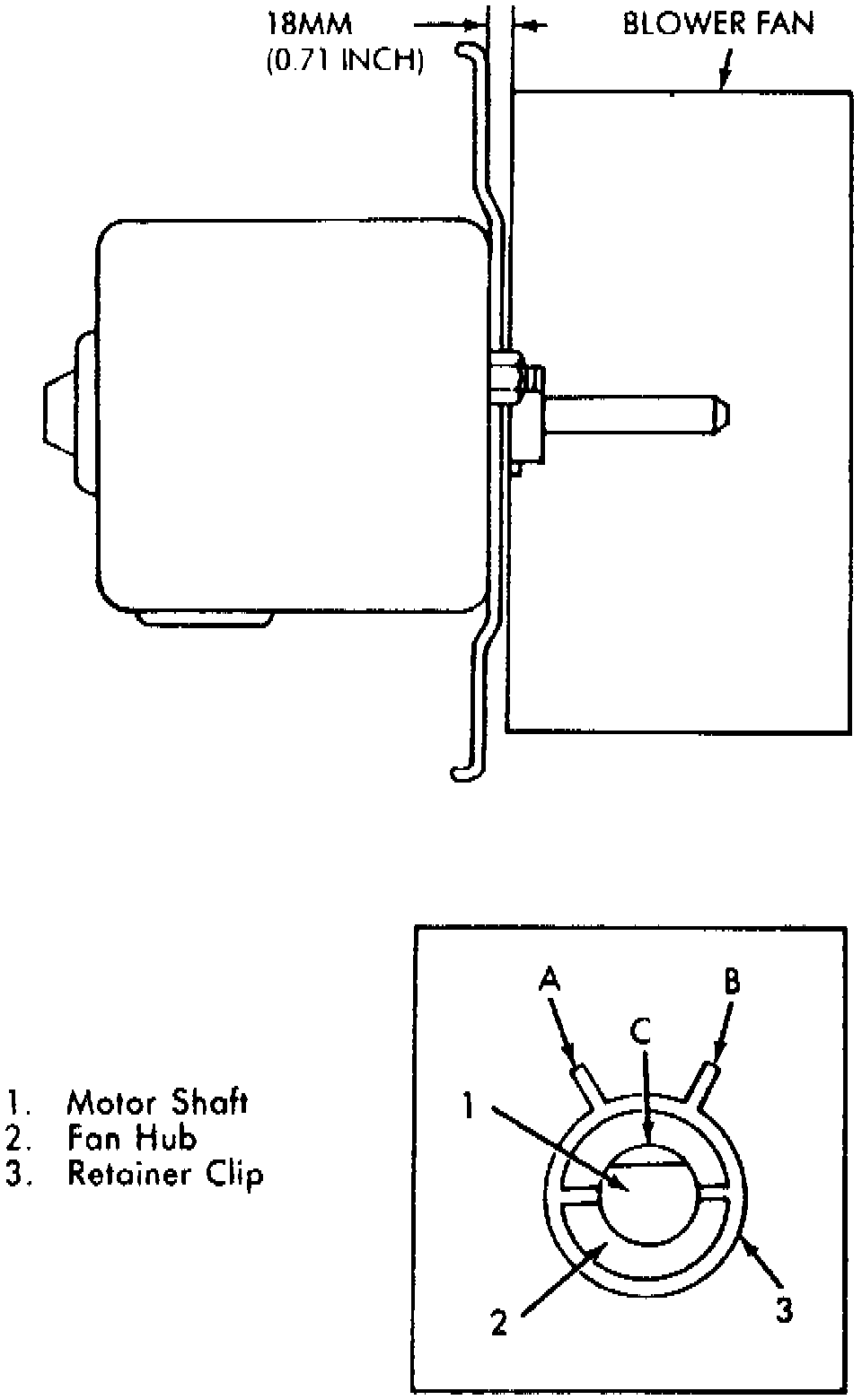

Fig.22 Blower Fan Replacement:

(5) Remove the blower motor fan from the motor shaft for access to the motor attaching nuts (Fig. 11). To install the blower fan and motor, reverse the removal procedures. The ears (A) and (B) of the retainer clip must be over the flat surface on the motor shaft (Fig. 11).
