Seals and Gaskets: Service and Repair

REMOVAL
1. Raise and support vehicle.
2. Remove differential assembly.
3. Remove the inner axle shaft seals with a pry bar.





INSTALLATION
1. Remove any sealer remaining from original seals.
2. Remove sealer from axle tube to housing junction, if necessary.

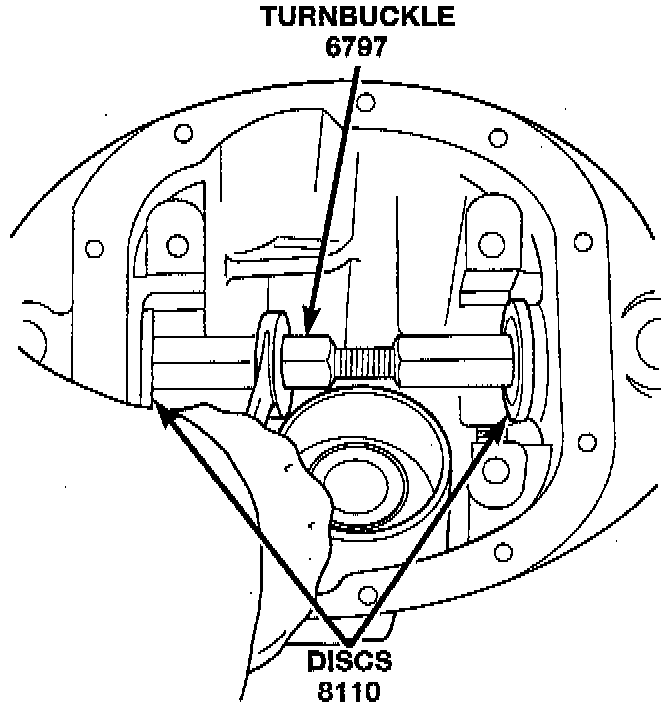

3. Install oil seals with Discs 8110 and Turnbuckle 6797, or equivalent. Tighten tool until disc bottoms in housing.
4. Install differential assembly.
