With A/C

REMOVAL

1. Disconnect battery ground cable.
2. Loosen power steering pump rear mounting bolts, pivot bolt and locknut.
3. Loosen power steering pump adjusting bolt and remove drive belt.

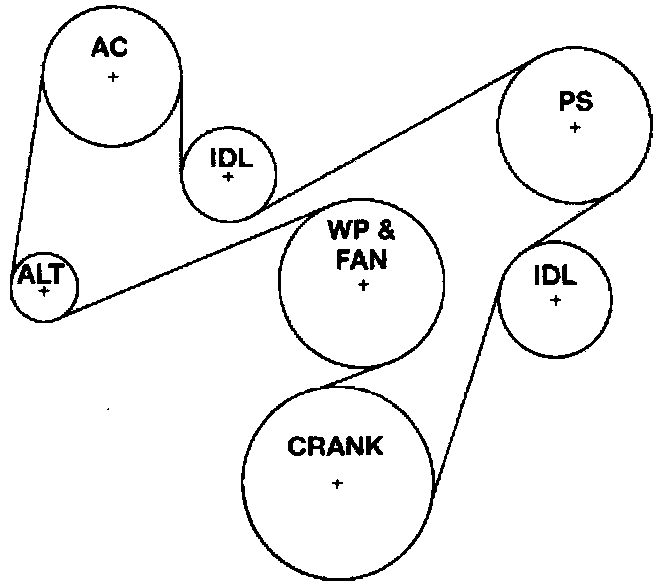

Fig. 28 Serpentine Drive Belt Routing:

INSTALLATION

1. Route new drive belt as shown in Fig.28.
2. Tighten power steering pump adjusting bolt until proper belt tension is achieved. Refer to "Belt Tension Data for specifications.
3. Tighten bolts to specifications.
