Jeep Truck
>>
1996
>>
Cherokee 2WD L4-150 2.5L VIN P MFI
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Right Hand Drive
>>

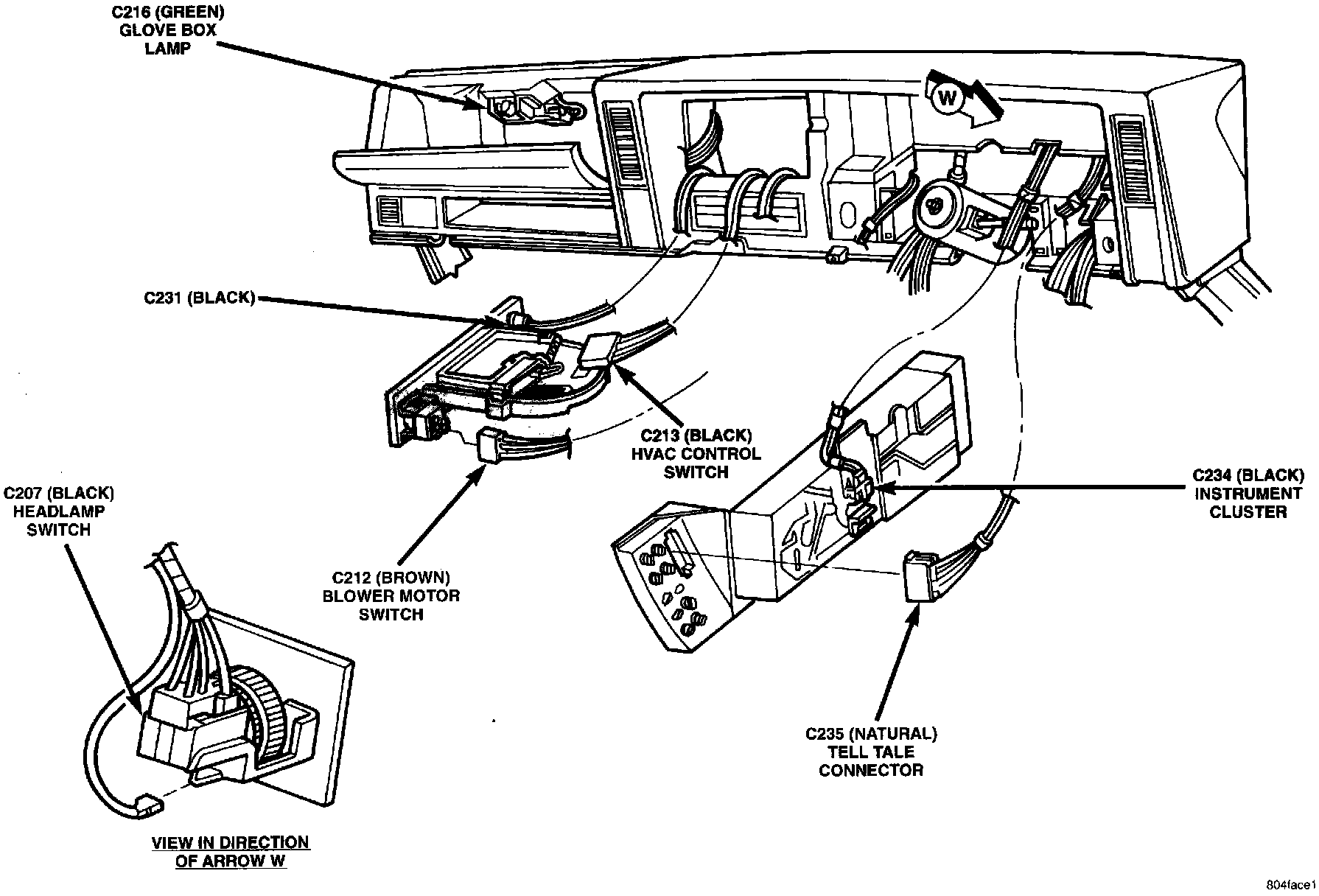

Figure 6
Figure 6
Instrument Panel Wiring Connectors - Right Side:
