Jeep Truck
>>
1996
>>
Cherokee 2WD L4-150 2.5L VIN P MFI
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Left Hand Drive
>>
Figure 11
Figure 11

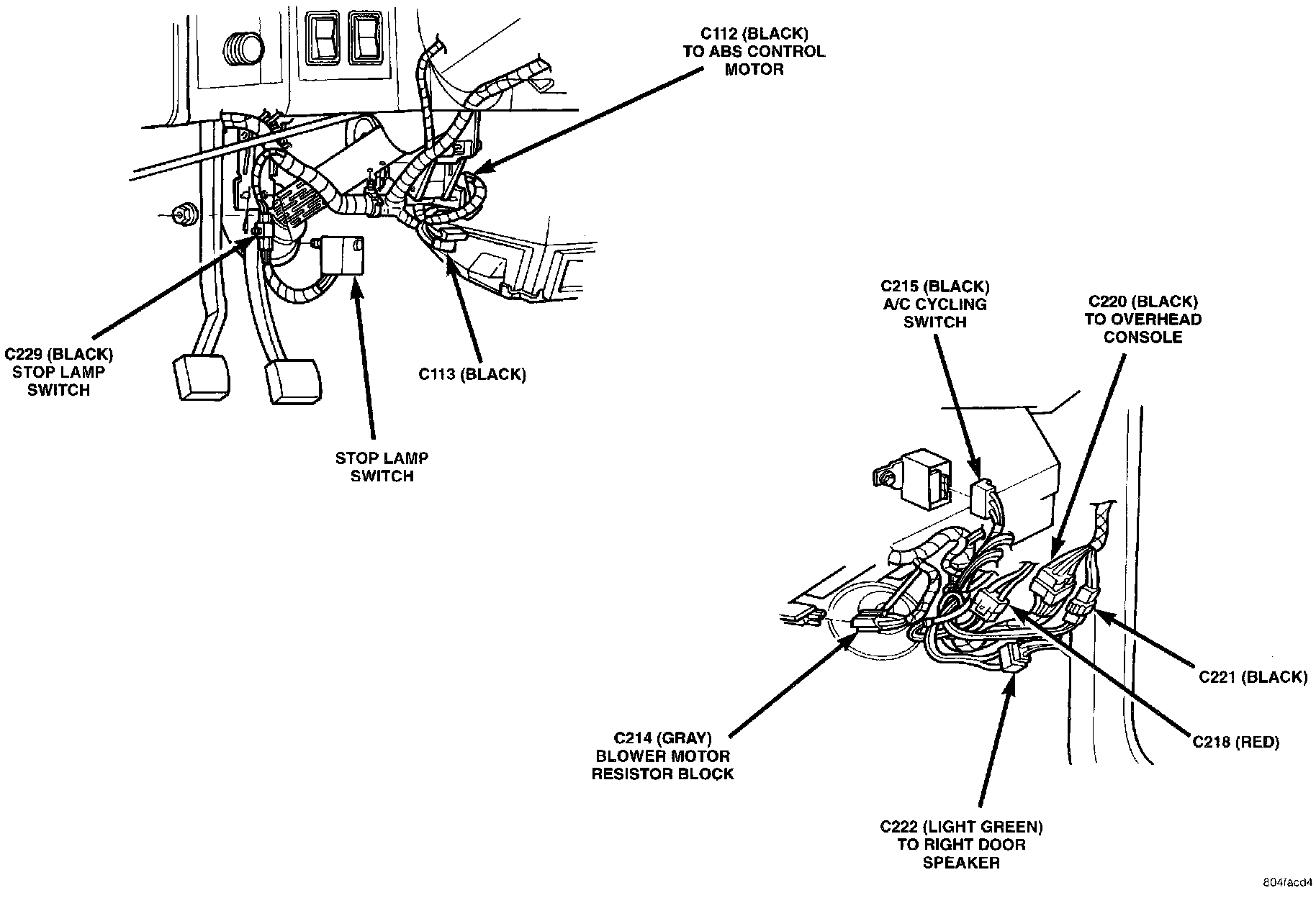

Instrument Panel Wiring Connectors - Lower:
