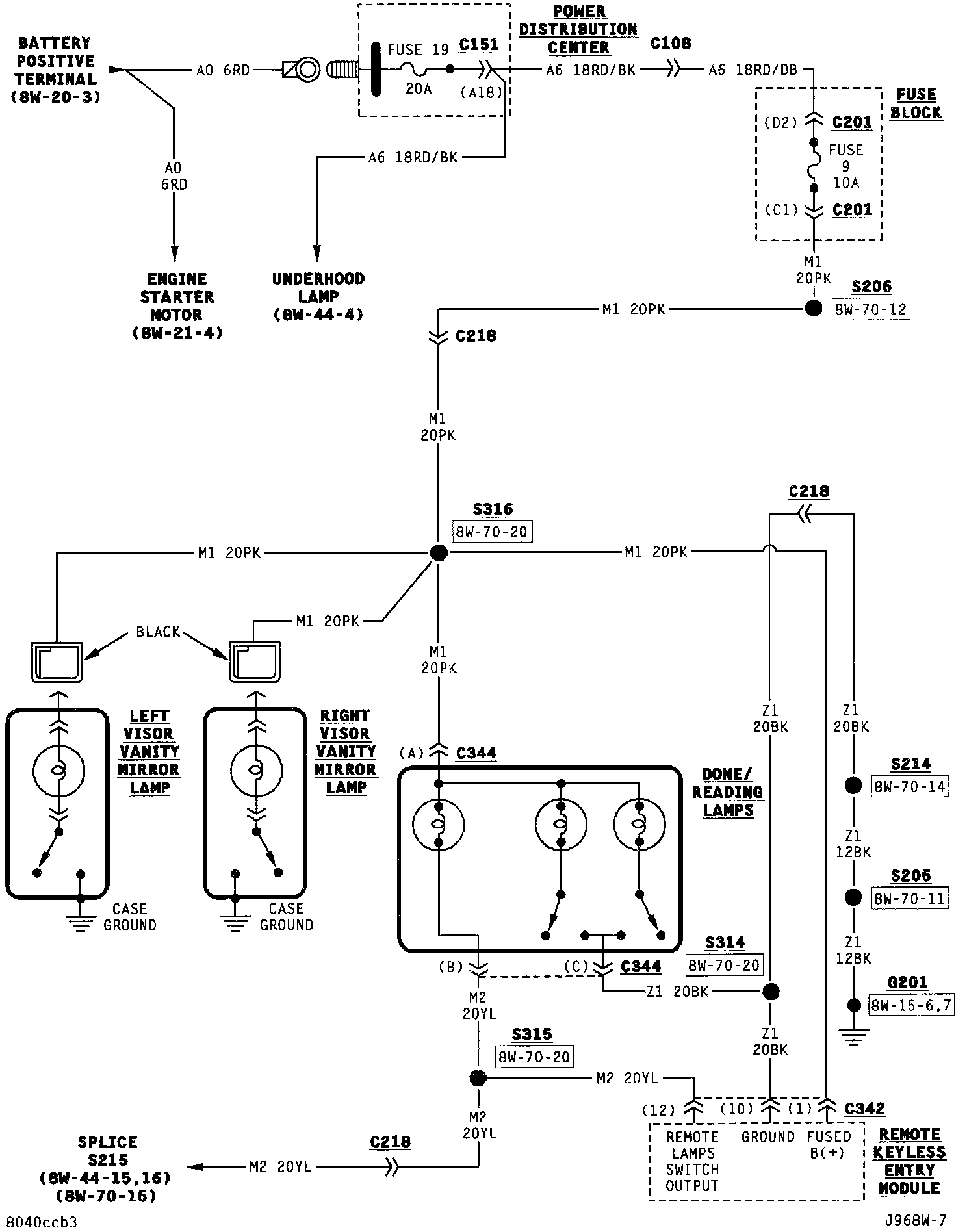

With Remote Keyless Entry

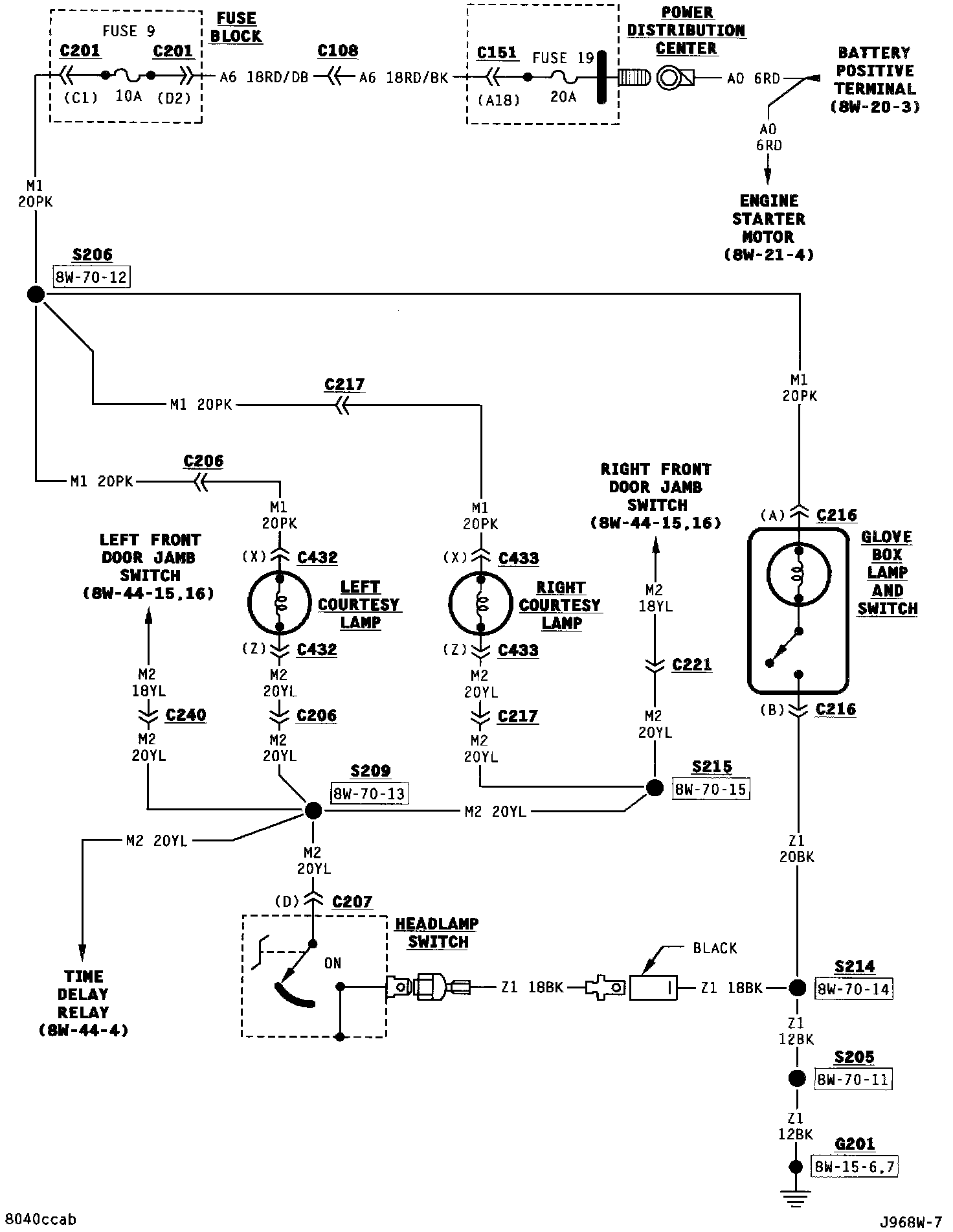

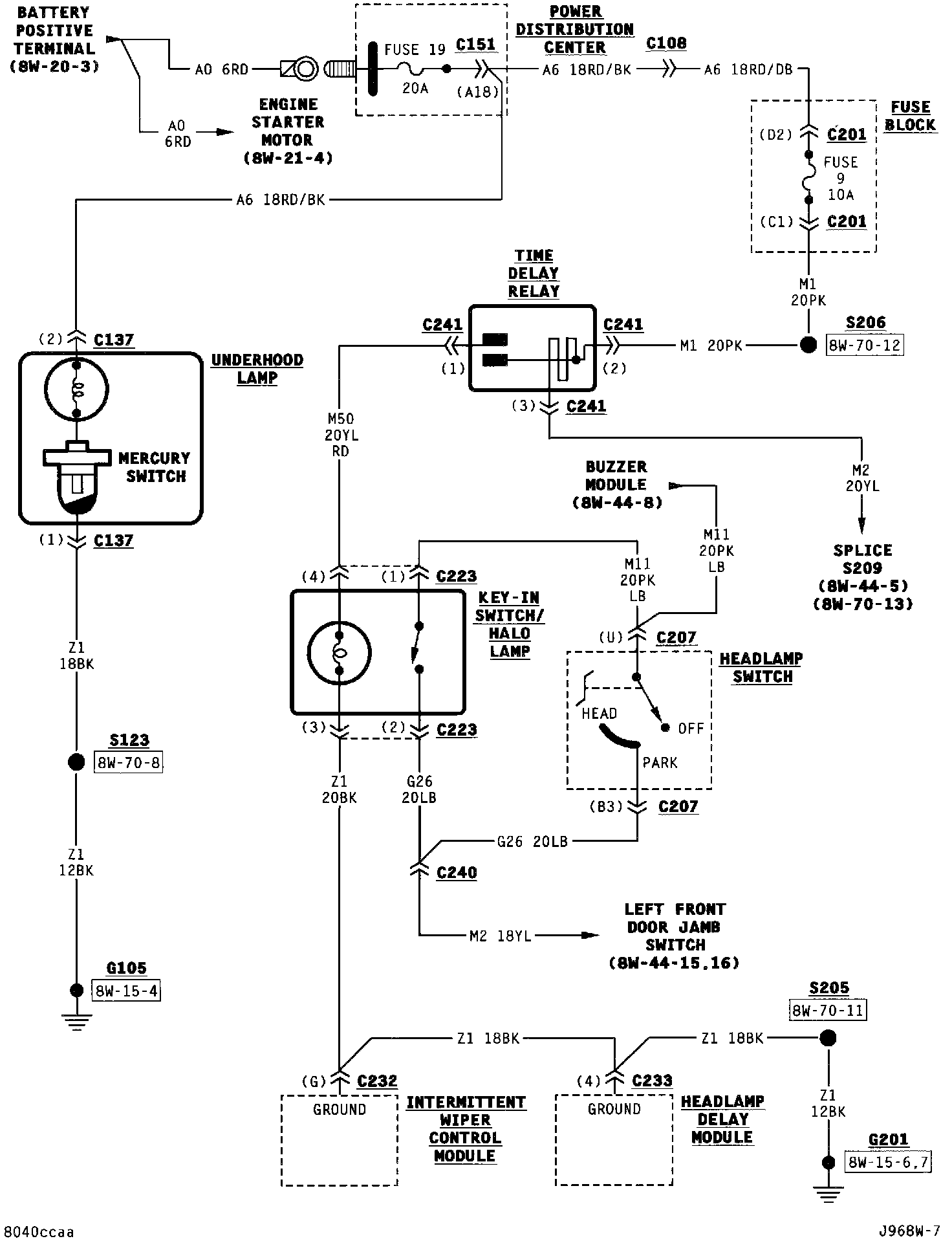

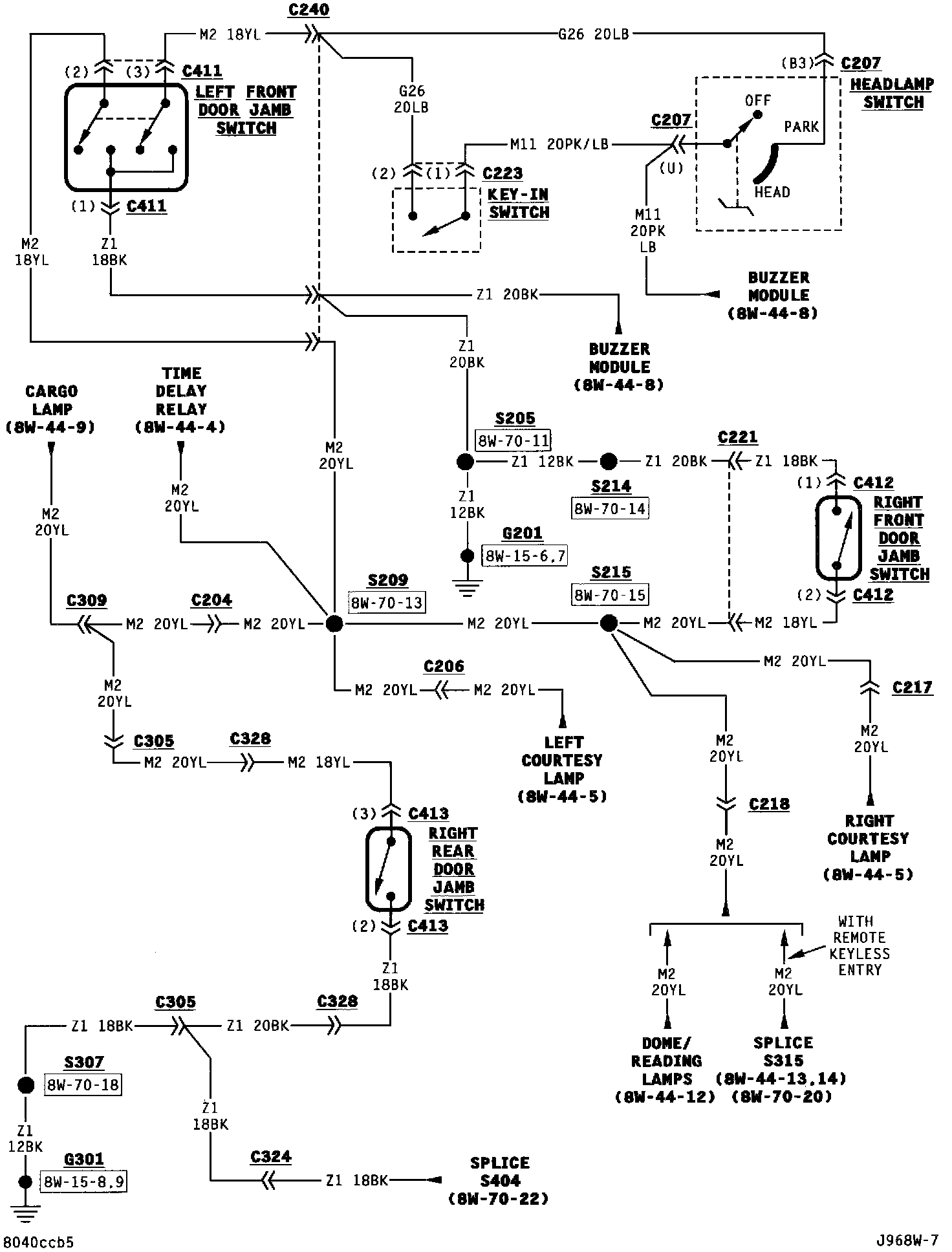

Interior Lighting:

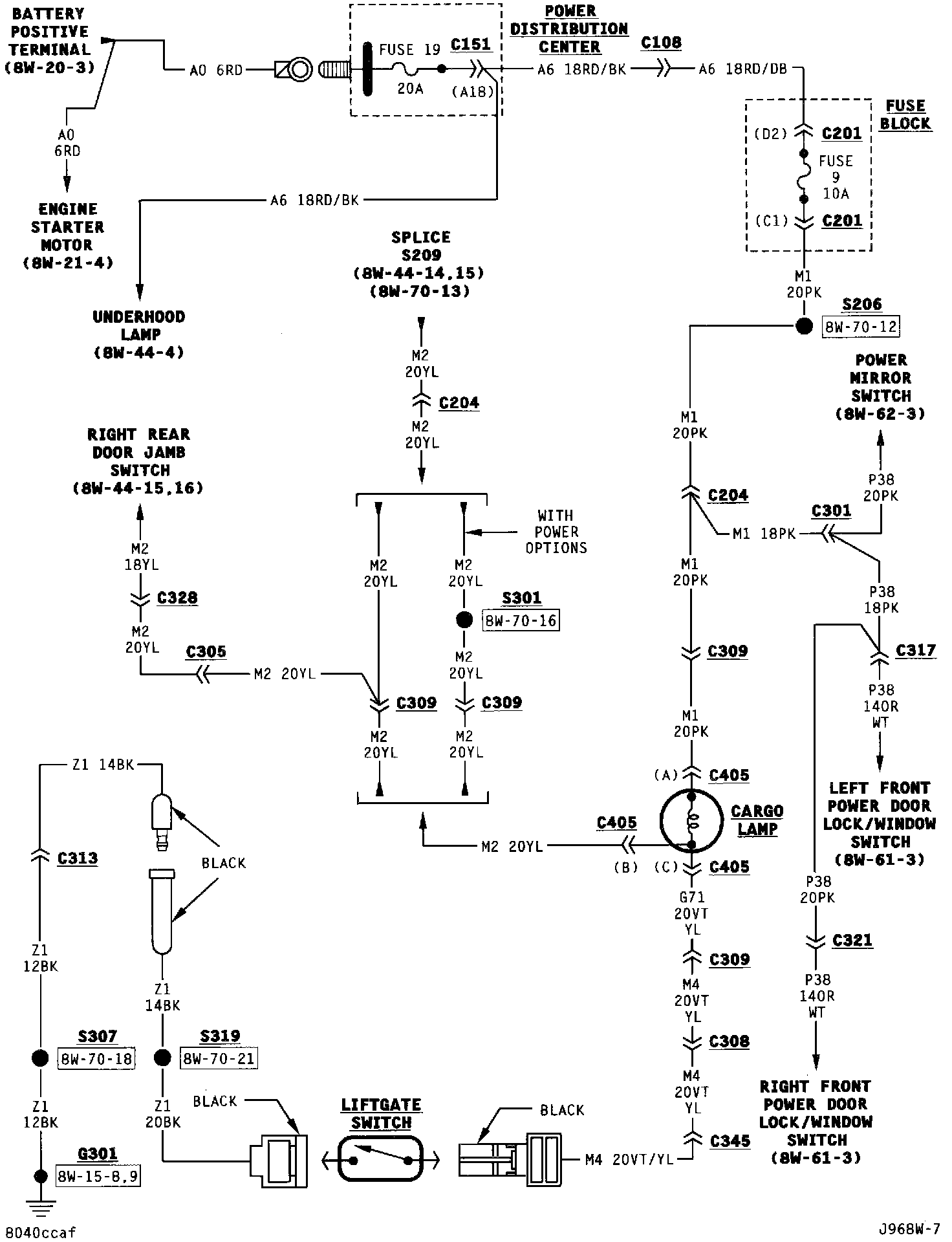

Interior Lighting:

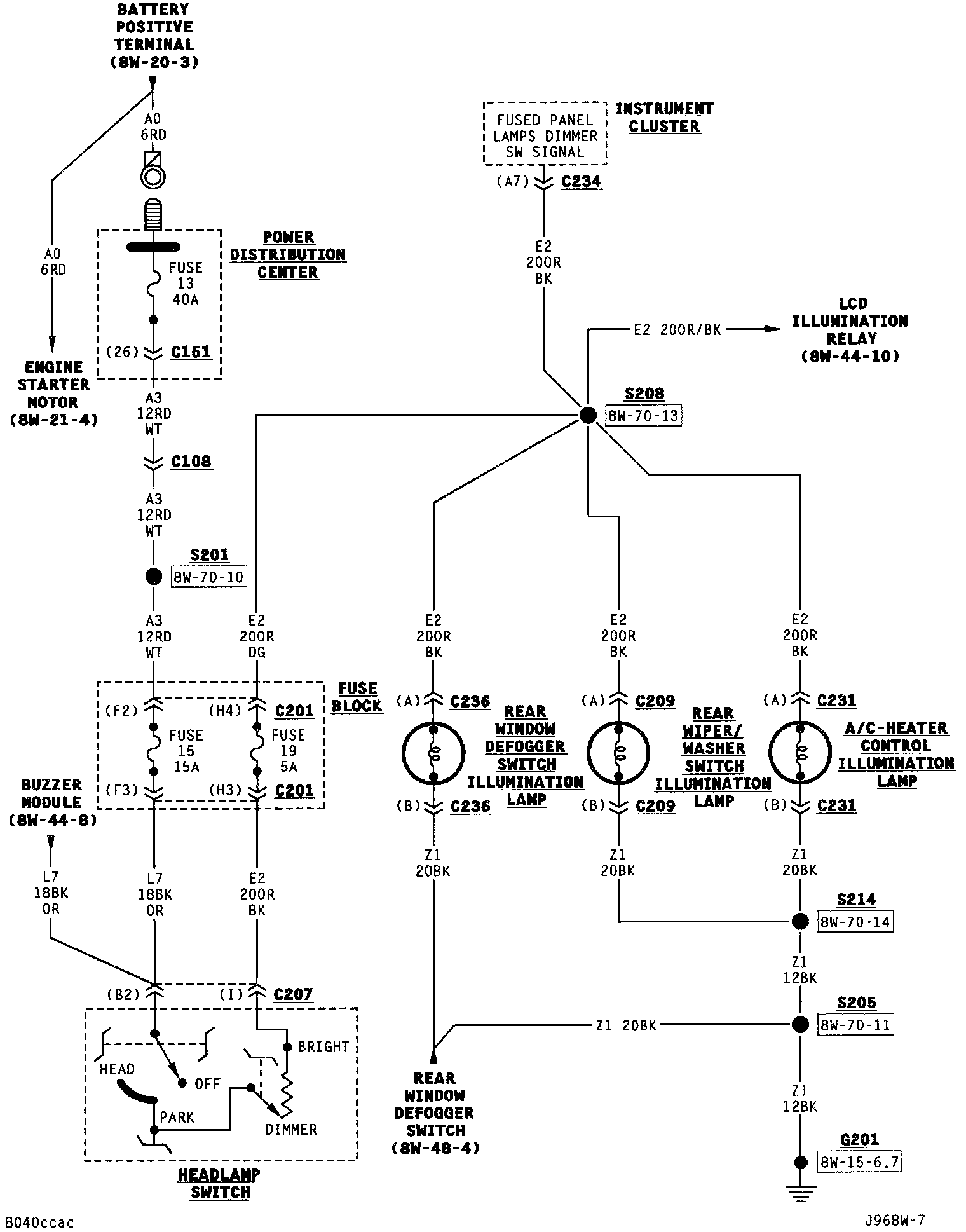

Interior Lighting:

Interior Lighting:

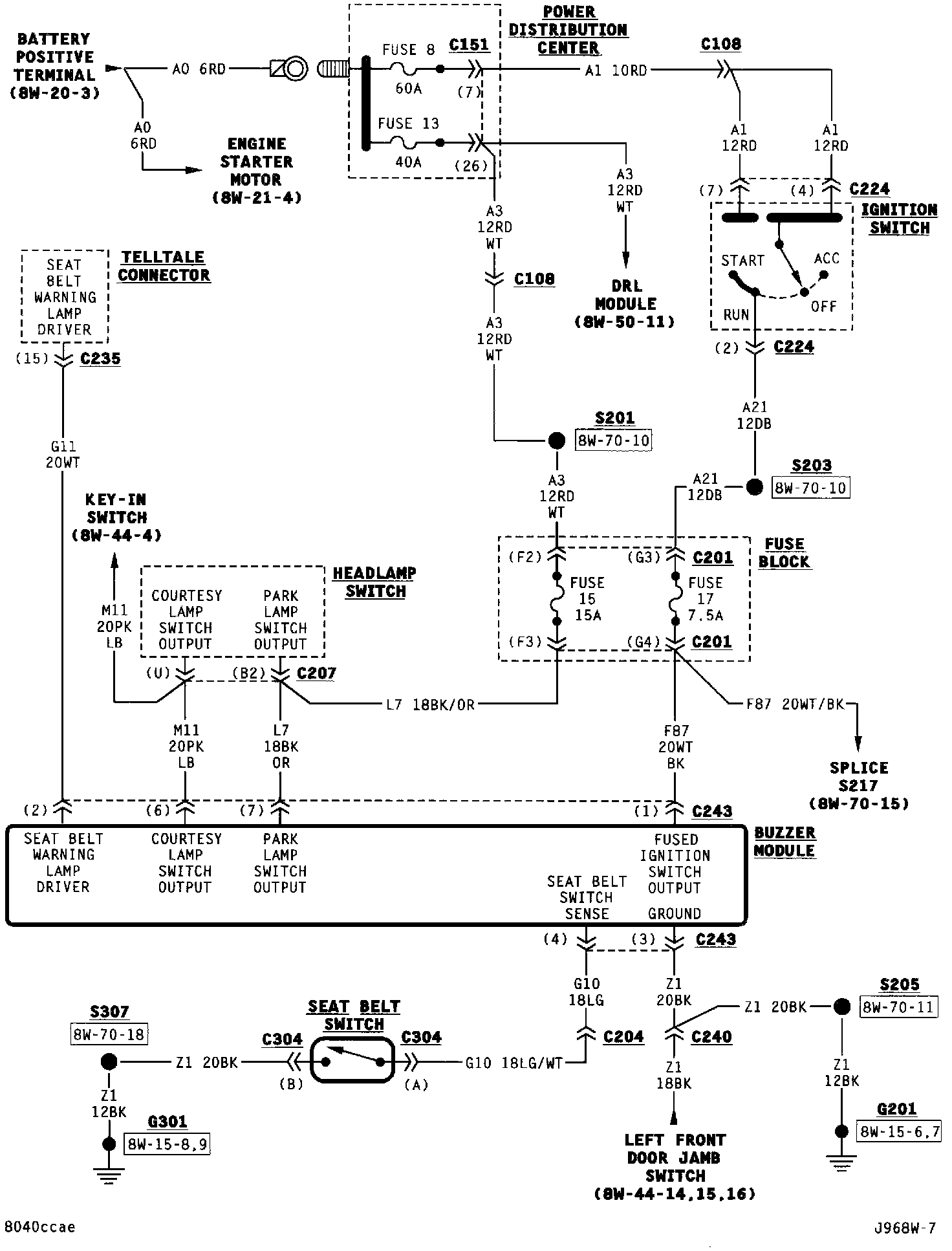

Interior Lighting:

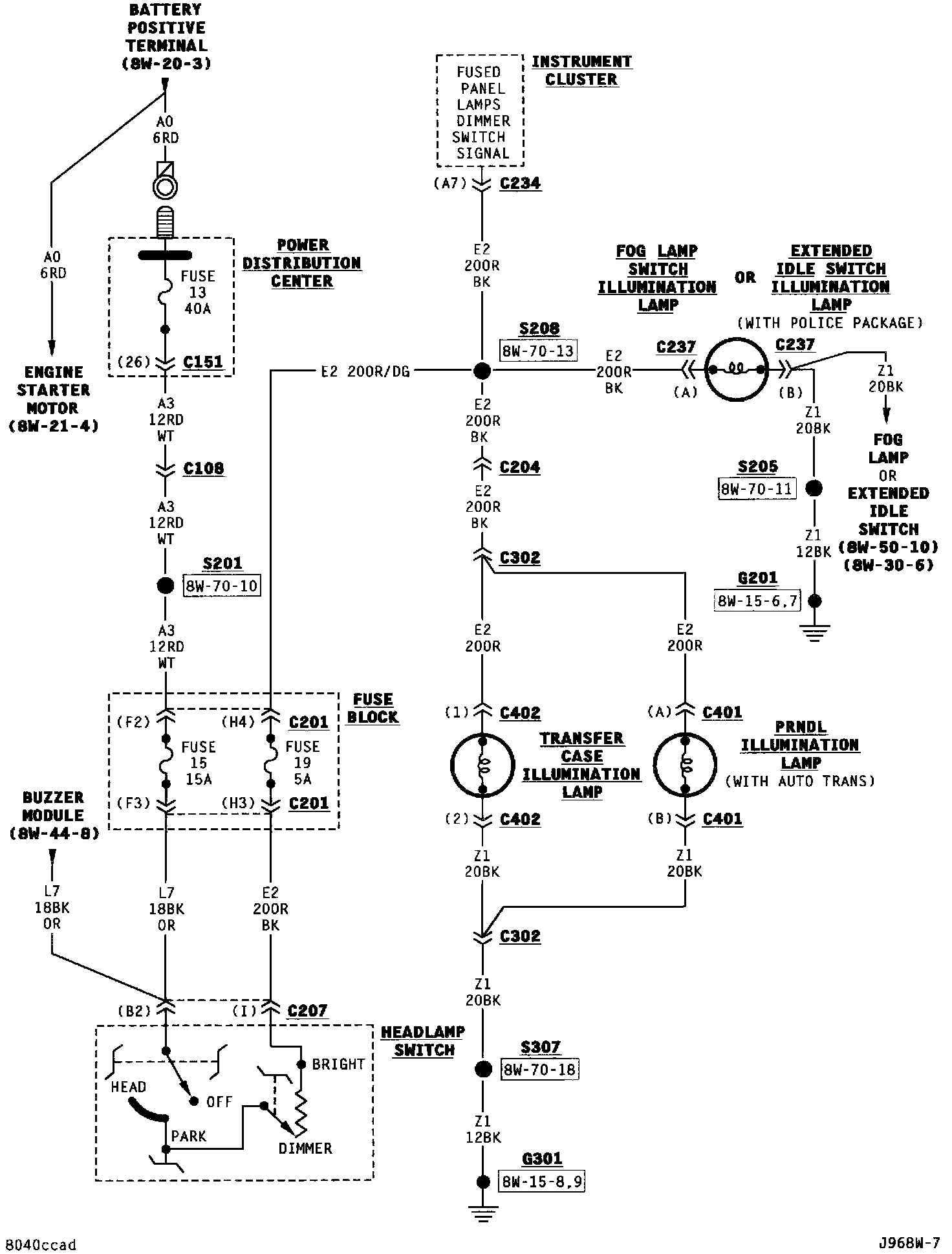

Interior Lighting:

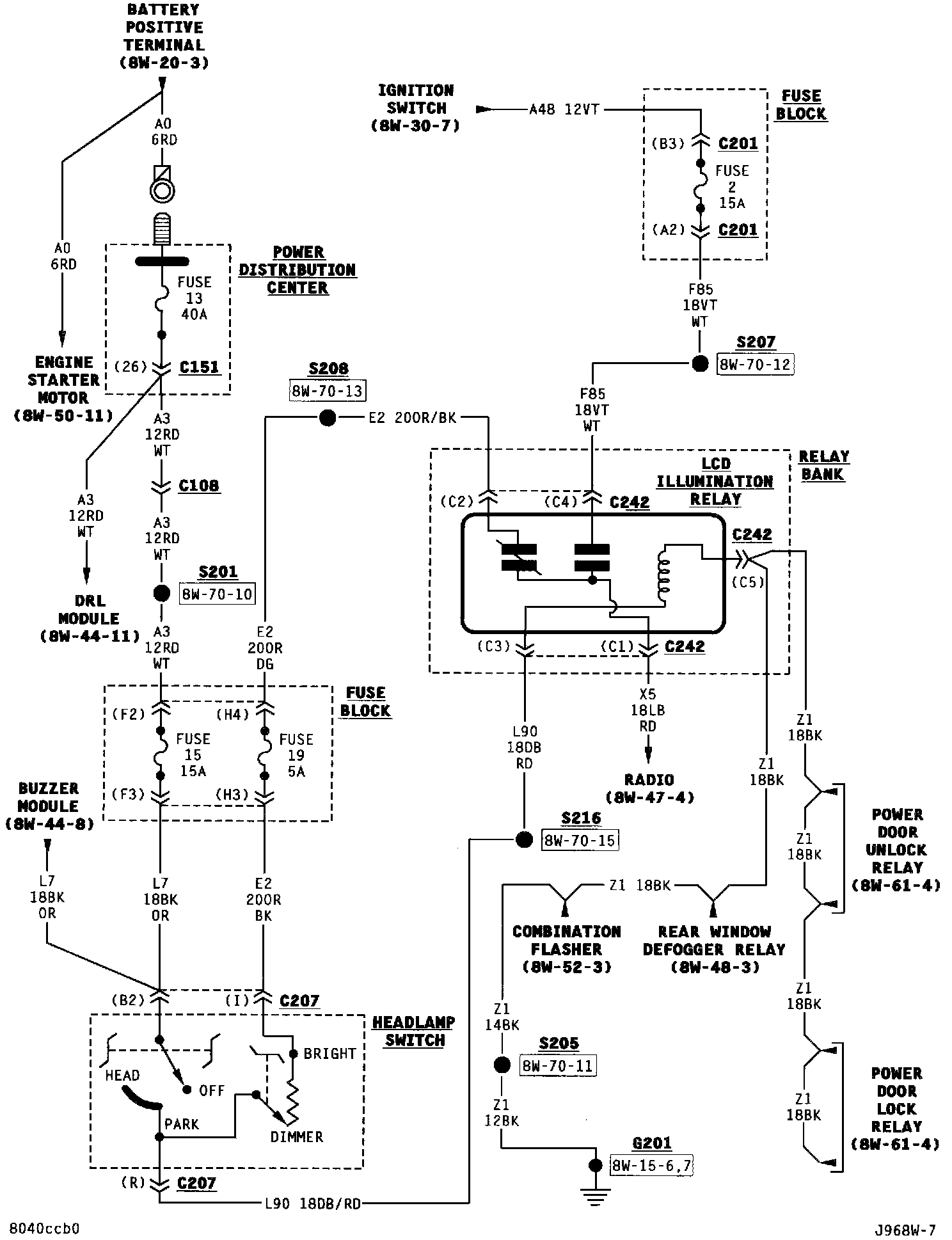

Interior Lighting:

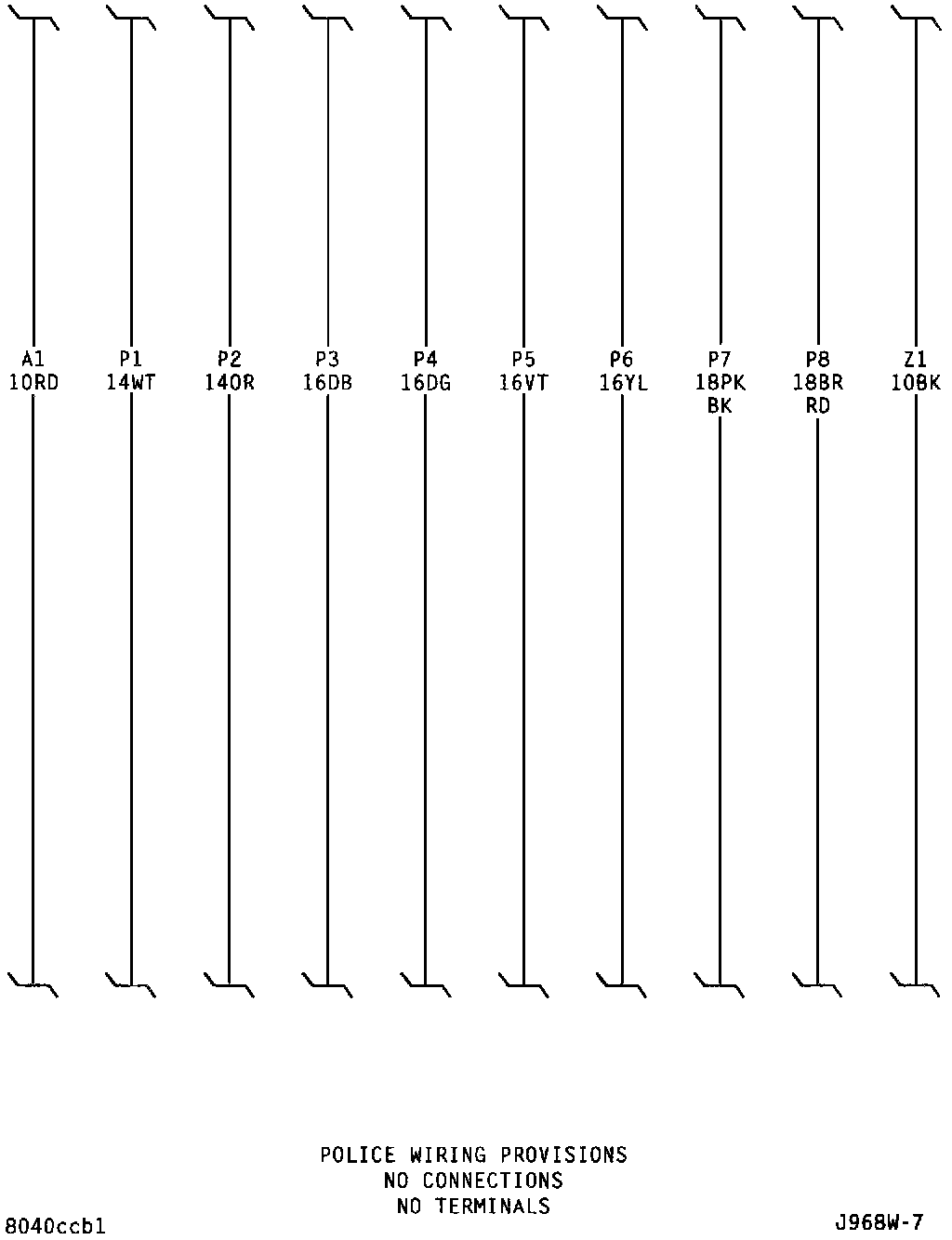

Interior Lighting:

Interior Lighting:

Interior Lighting:

NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
