Jeep Truck
>>
1996
>>
Cherokee 2WD L4-150 2.5L VIN P MFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device Control Module
>>
Diagrams
>>
Connector Views
>>
Left Hand Drive (LHD) Vehicle
Left Hand Drive (LHD) Vehicle

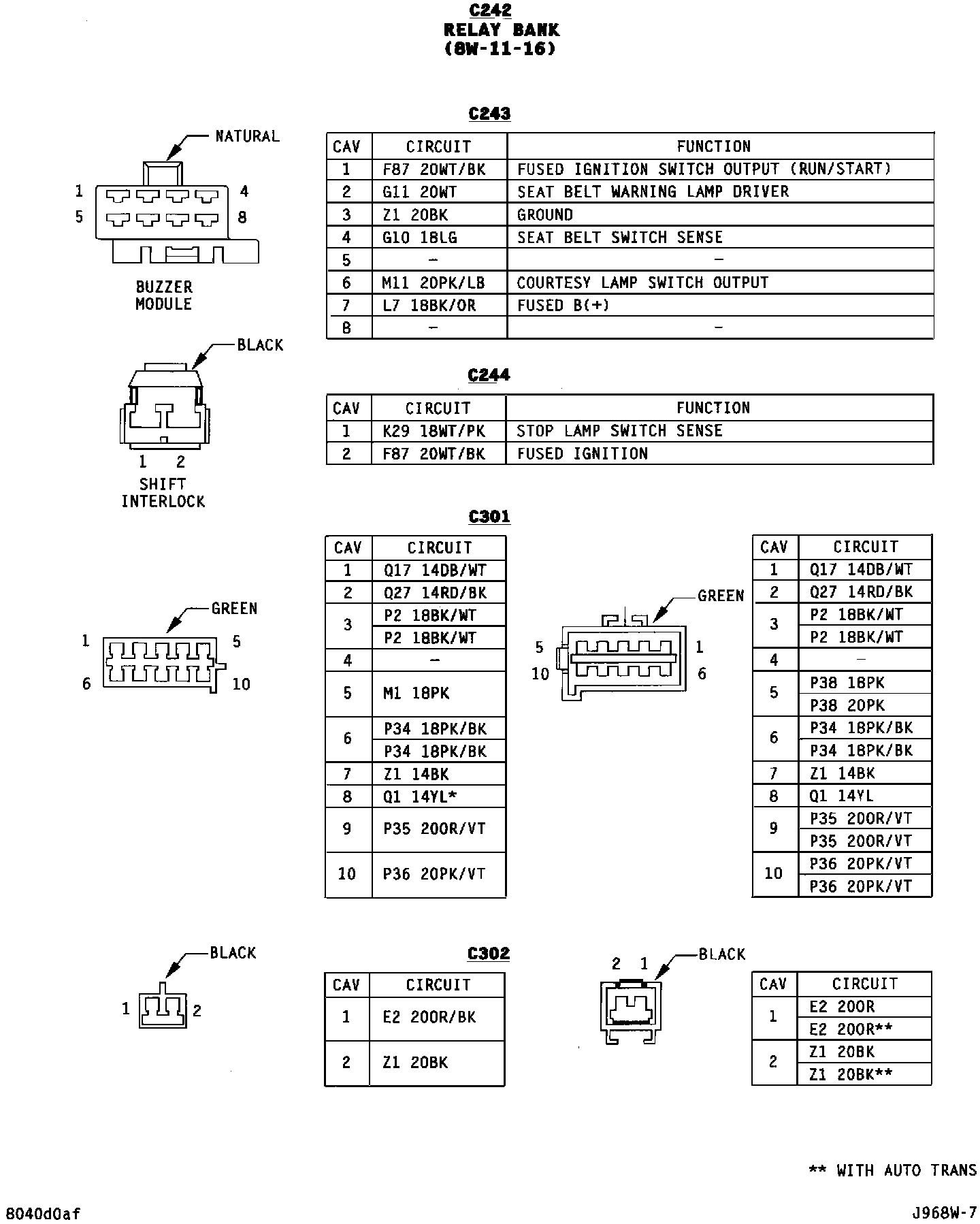

Connector Pinouts (Part 31 Of 49):
