Timing Cover: Service and Repair

1. Disconnect battery ground cable.
2. Remove drive belts, then the vibration damper and pulley.
3. Remove cooling fan and hub assembly, then the fan shroud.
4. Remove A/C compressor and alternator bracket assembly from cylinder head, and position aside.
5. Remove oil pan to cover retaining screws and cover to cylinder block retaining bolts.
6. Remove timing case cover, front seal and gasket.
7. Cut off oil pan side gasket end tabs and front seal tabs until they are flush with front face of cylinder block.
8. Clean timing case cover, oil pan and cylinder block sealing surfaces, then remove front crankshaft seal from timing cover.
9. Apply sealing compound to both sides of timing case cover gasket, then position gasket onto cylinder block.
10. Cut off end tabs from replacement oil pan side gaskets, then cement tabs to corresponding points on oil pan.
11. Coat front cover seal end tab recesses with RTV sealant, then position seal on timing case cover.
12. Apply engine oil to seal/oil pan contact surface, then position timing case cover onto cylinder block.

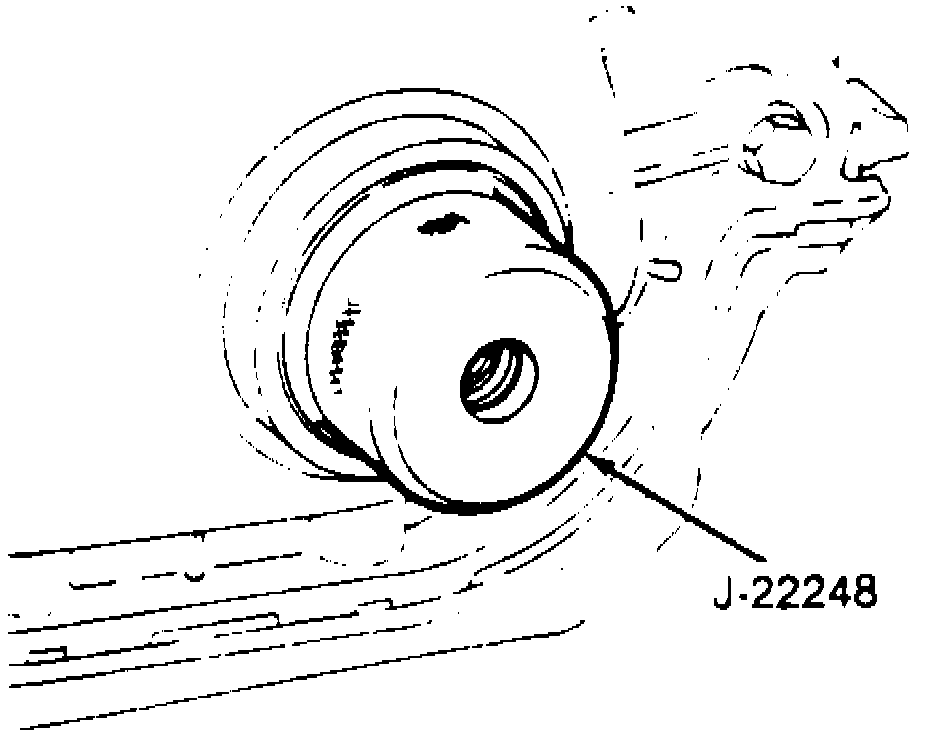

Fig.11 Timing Case Cover Alignment Tool:

13. Install timing case cover alignment tool No. J-22248, or equivalent, into opening in timing case cover as shown, Fig.11
14. Install cover-to-cylinder block retaining bolts and oil pan-to-cover retaining bolts, noting the following:
a. Torque cover to block bolts to 5 ft. lbs.
b. Torque oil pan to cover 1/4 inch bolts to 9.5 ft. lbs. and 5/16 inch bolts to 13 ft. lbs.

15. Remove alignment tool, then position a new crankshaft seal onto tool. Ensure lip on seal faces outward. Apply a light coat of sealing compound to outside diameter of crankshaft seal, then coat crankshaft snout with engine oil.

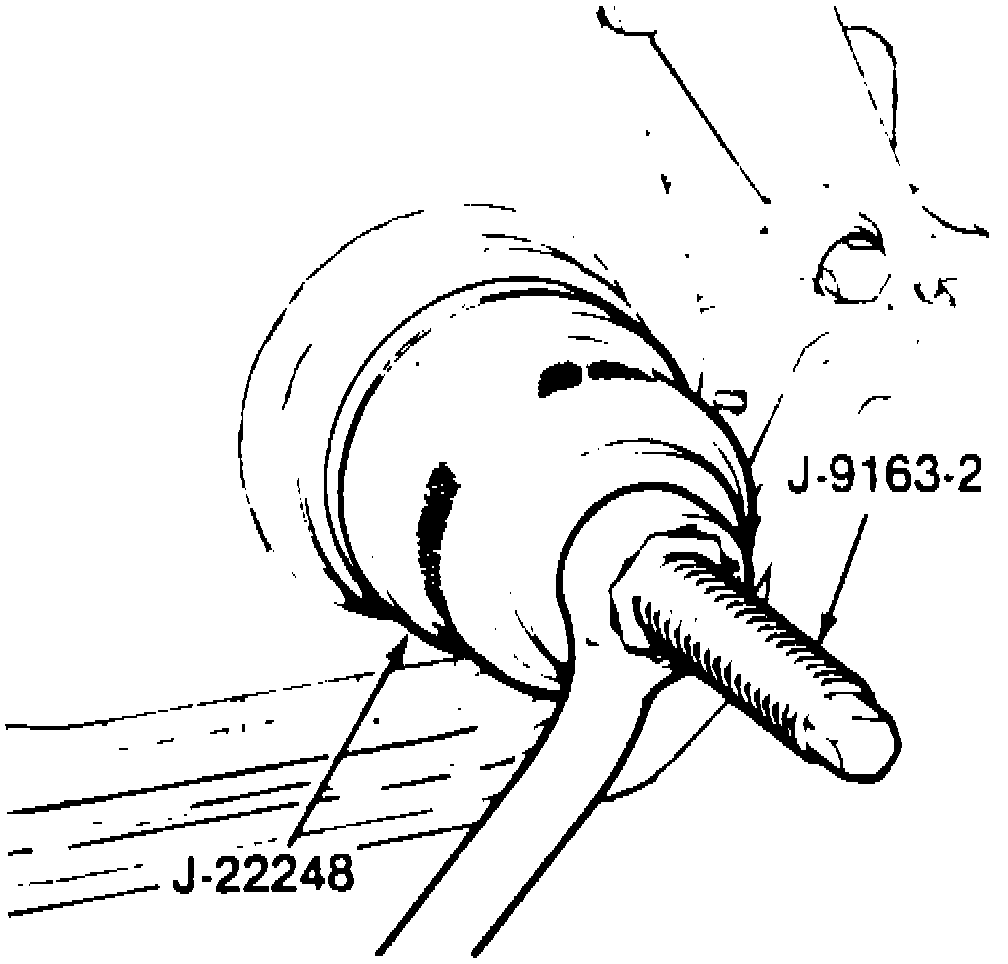

Fig.12 Front Seal Installation:

16. Position alignment tool and seal over crankshaft snout, then insert installation tool J-9163-2 or equivalent into alignment tool as shown, Fig.12. Tighten nut on installation tool until alignment tool contacts timing cover. Remove tool.
17. Install vibration damper and pulley. Tighten vibration damper retaining nut to specifications. If engine is equipped with a serpentine drive belt, the pulley is integral with the vibration damper.
18. Install A/C compressor (if equipped) and alternator bracket assembly, then the cooling fan, hub, and fan shroud.
19. Install drive belts, then reconnect battery ground cable.
