With Remote Keyless Entry and Overhead Condole

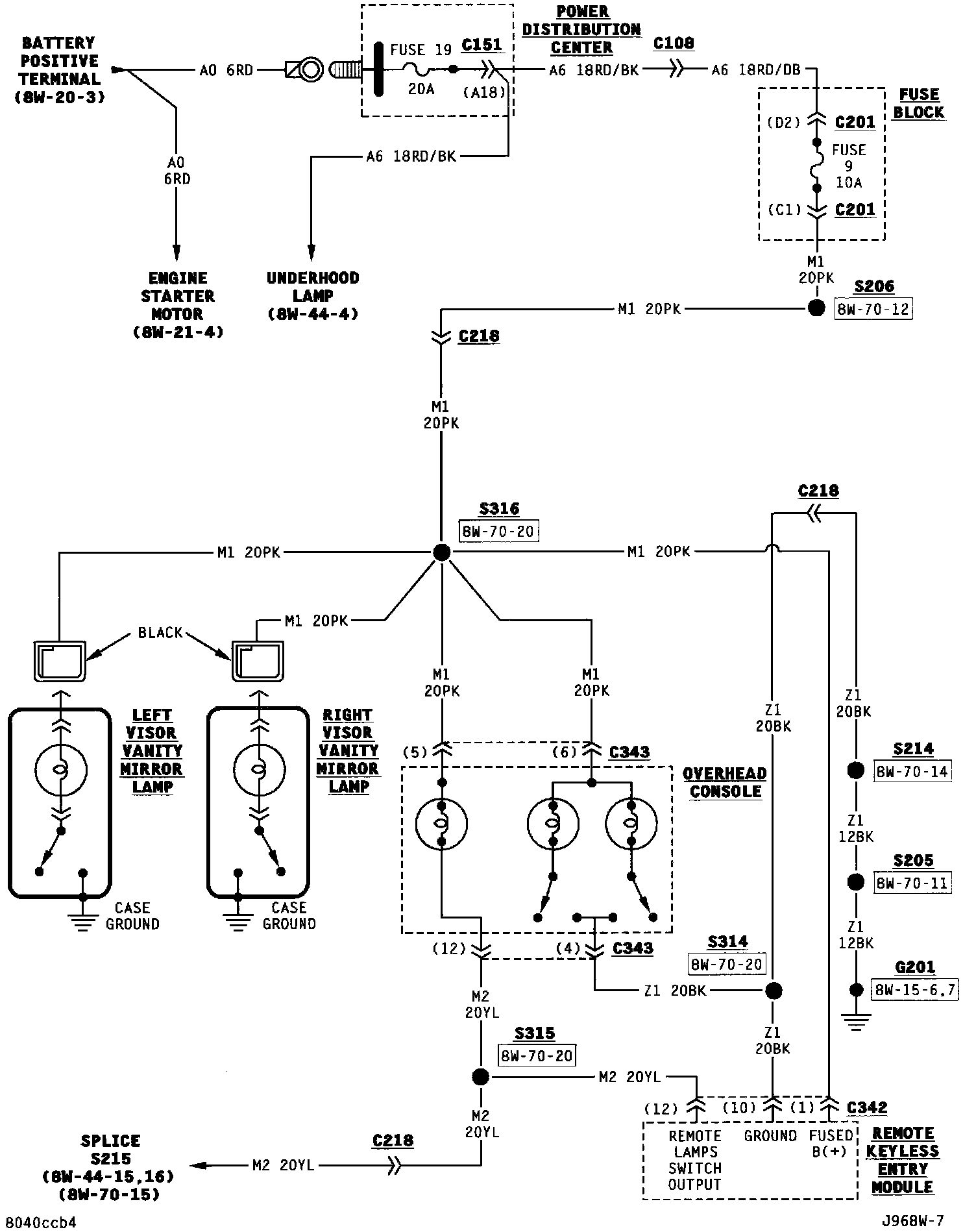

Interior Lighting:






NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
