Console

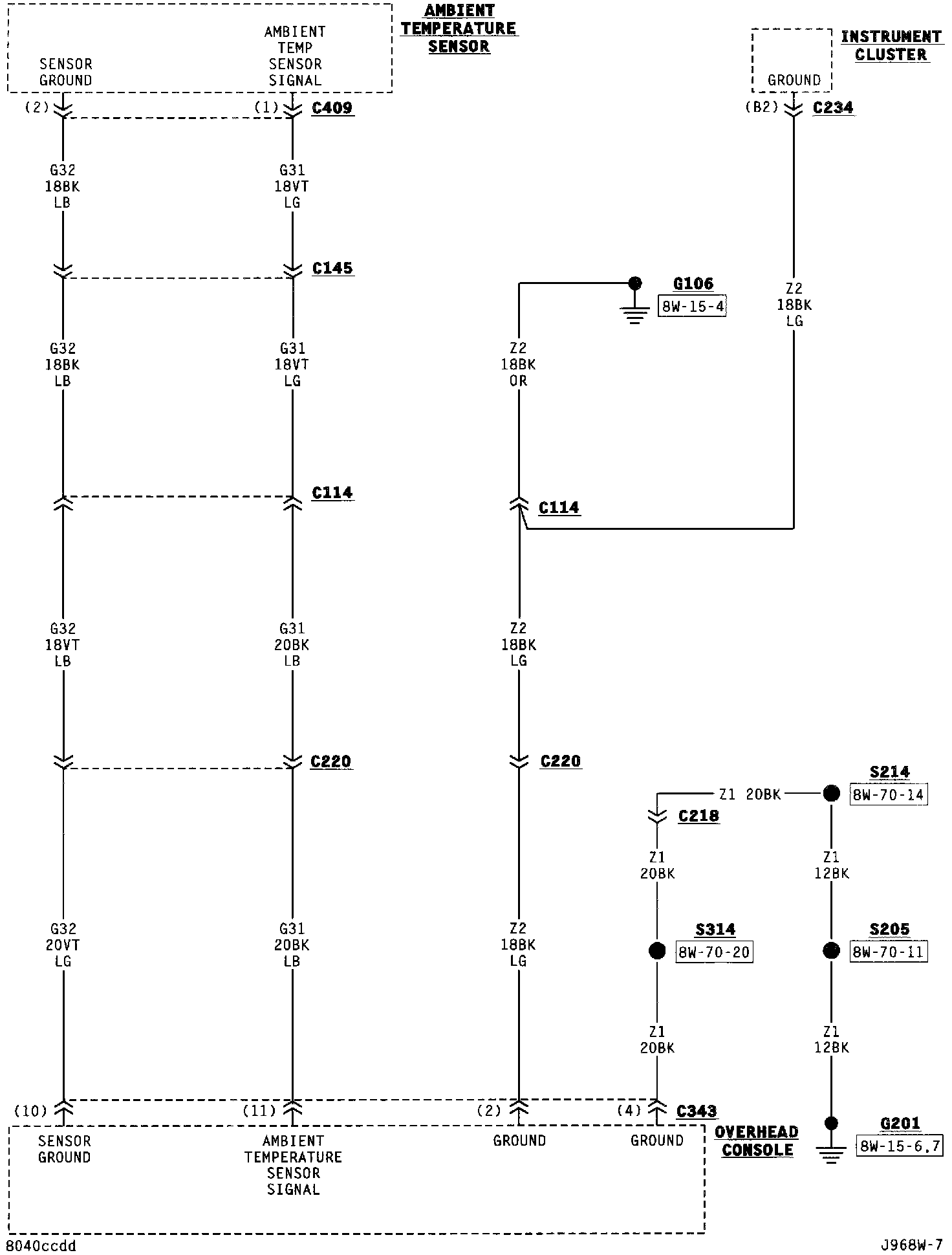

Overhead Console (Part 1 Of 3):

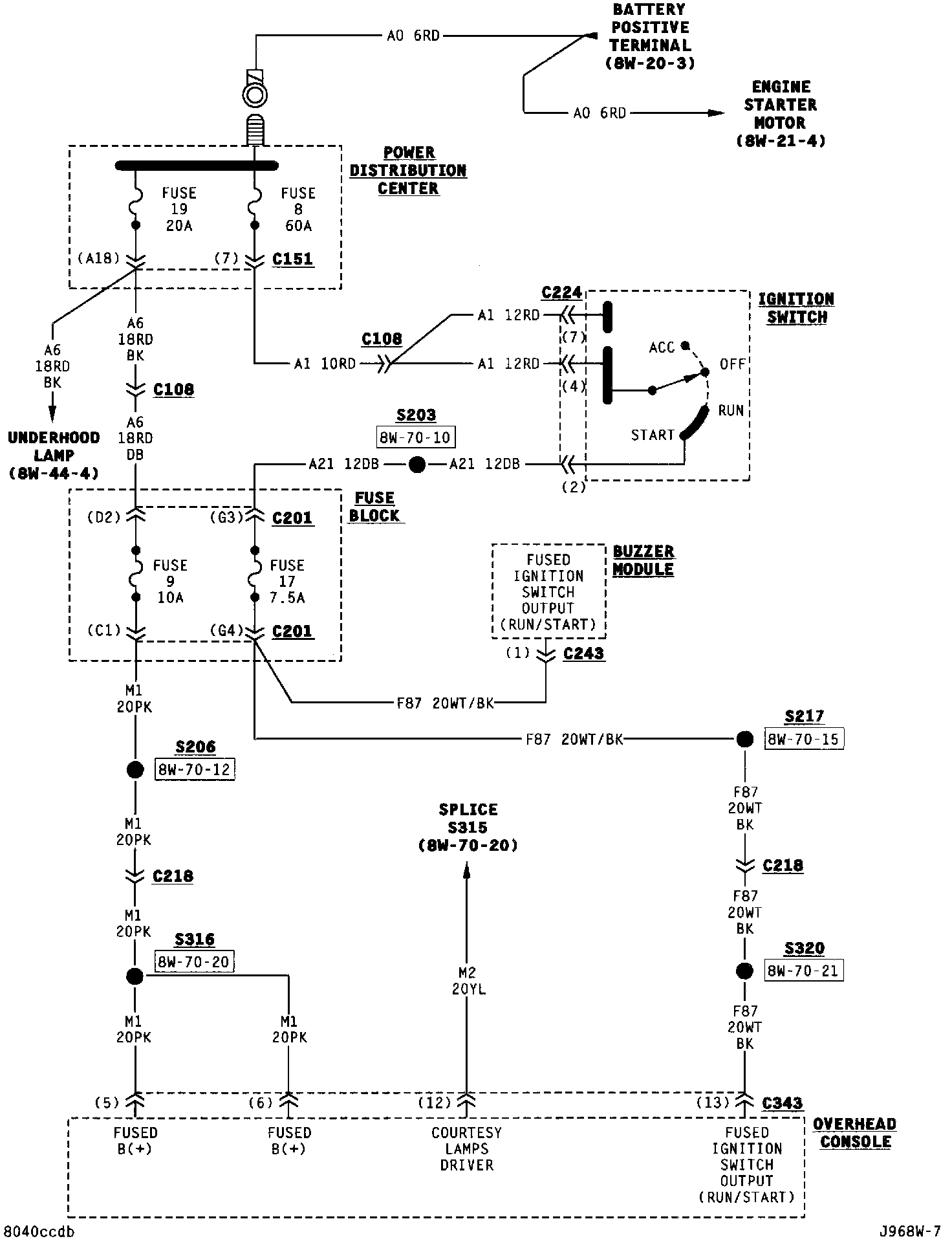

Overhead Console (Part 2 Of 3):

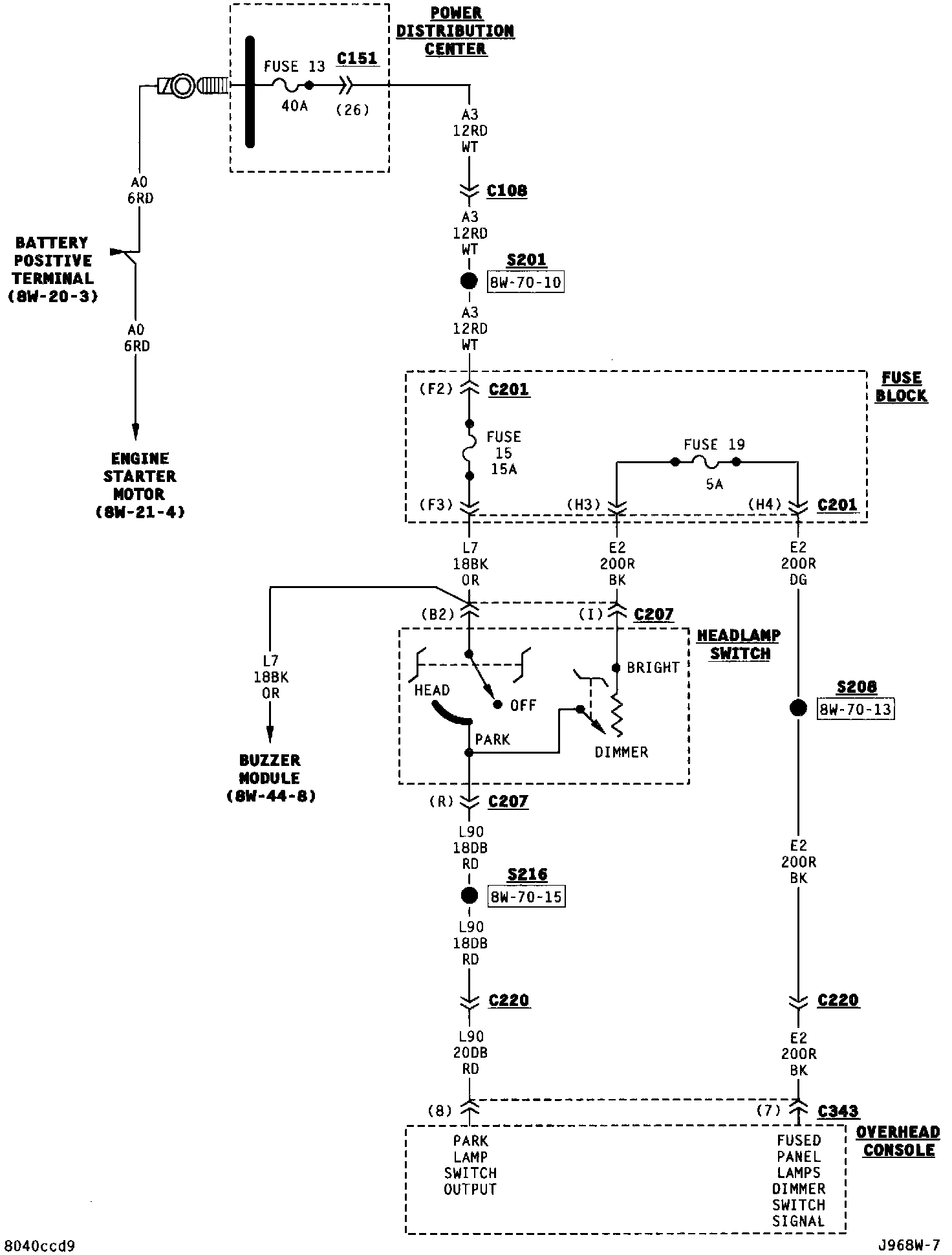

Overhead Console (Part 3 Of 3):

NOTE: To view sheets referred in these diagrams, refer to Complete Body and Chassis Diagrams at the overall vehicle level. Electrical Diagrams
