Disassembly

1. Clean outside of caliper with suitable solvent.

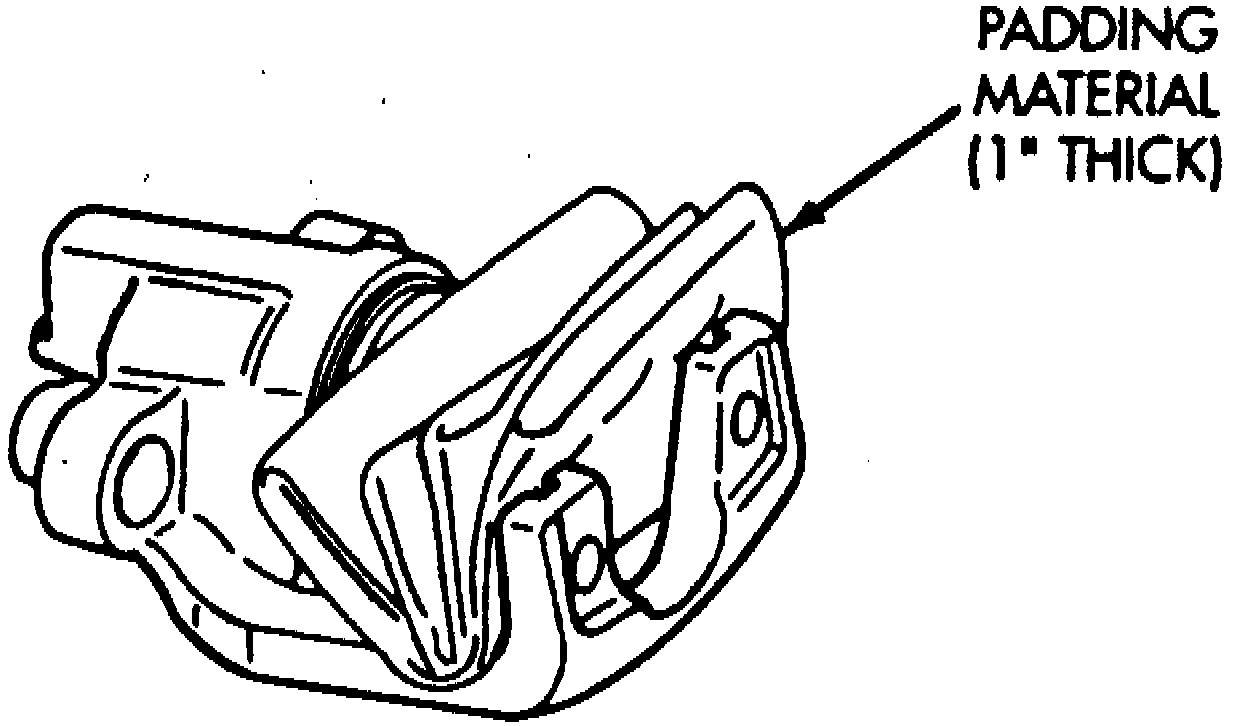

Fig. 9 Caliper Piston Protective Cloth:

2. Drain fluid from caliper and place clean shop cloths in caliper opposite piston.
3. Slowly apply compressed air to caliper inlet port until piston moves out of bore. Do not "blow" piston out of bore; damage and personal injury may result.
4. Remove and discard dust boot using a suitable screwdriver. Use care to avoid scratching caliper piston bore.
5. Remove and discard piston seal, using a suitable wooden or plastic tool.
6. Remove bleeder screw and protective cap, if equipped.
7. Remove and discard inner and outer bushings and plastic sleeves, if equipped.
8. Clean all components with clean brake fluid and compressed air.
