Trunk / Liftgate Lock Cylinder: Service and Repair

Liftgate Lock Cylinder:

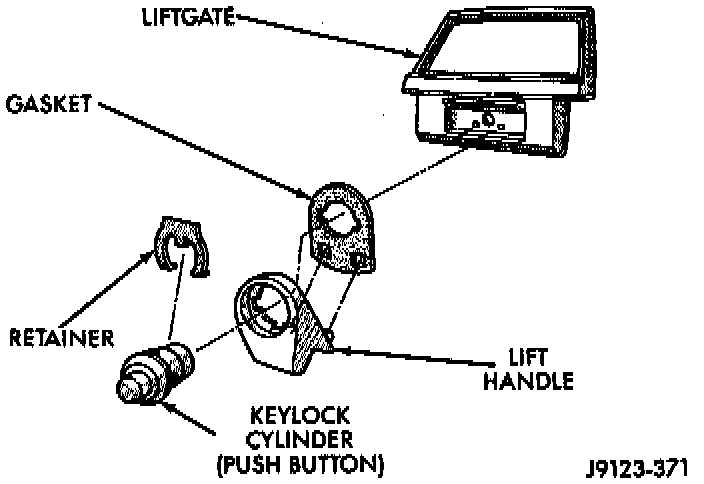

LIFTGATE LOCK CYLINDER REMOVAL
1. Raise the liftgate and remove liftgate trim panel.
2. Remove the lock cylinder retainer clip.
3. Remove the key lock cylinder.

INSTALLATION
1. Position the lock cylinder in the liftgate.
2. Secure the lock cylinder with the retainer clip.
3. Install the liftgate trim panel.
